Secure Model Inference with F5 Distributed Cloud API Security

Copy link

Secure AI-powered financial services applications against injection attacks, shadow APIs, and abuse while safeguarding sensitive financial data.

Table of contents

Copy link

• Detailed description
  • Architecture diagrams
• Requirements
  • Minimum hardware requirements
  • Minimum software requirements
  • Required user permissions
• Deploy
  • Prerequisites
  • Supported models
  • Installation steps
• Delete
• References
• Document management
• Tags

Detailed description

Copy link

Imagine a financial services team deploying an AI-powered assistant to help underwriters review policies, analyze risk documents, and answer questions about compliance guidelines. The assistant uses a large language model served on Red Hat® OpenShift® AI, with Retrieval-Augmented Generation (RAG) grounding its answers in the firm's own document corpus—underwriting manuals, regulatory filings, and internal procedures. Before moving the application to production, a compliance review reveals that the inference endpoint was configured incorrectly: a crafted prompt could trigger cross-site scripting or SQL injection, an undocumented API path may leak model metadata, and there is nothing stopping a single client from flooding the endpoint with thousands of requests.

This AI quickstart demonstrates a solution using F5 Distributed Cloud (XC) Web App & API Protection. It deploys a complete RAG chatbot on OpenShift AI and secures the model inference endpoints. You get a working application you can demonstrate to security, compliance, and risk stakeholders—complete with simulated attack scenarios that show exactly how each protection layer responds to threats from external attackers and internal misuse alike.

While the included demo content targets financial services, the same architecture applies to any industry handling sensitive data—healthcare organizations protecting patient records, government agencies securing citizen-facing AI services, or any enterprise that needs to lock down LLM endpoints before moving to production.

This quickstart allows you to explore security capabilities by:

• Querying financial documents through a RAG-powered chat assistant and seeing grounded, context-aware answers
• Simulating XSS and SQL injection attacks against the inference endpoint, then enabling a WAF policy to block them
• Uploading an OpenAPI specification to enforce API contracts and automatically block undocumented shadow APIs
• Configuring rate limiting to prevent endpoint abuse and ensure fair resource allocation across clients
• Walking through each scenario end-to-end with the included security use case guide

The solution is built on:

• Red Hat OpenShift AI – MLOps platform with KServe/vLLM model serving and GPU acceleration
• F5 Distributed Cloud API Security – WAF, API spec enforcement, rate limiting, and sensitive data controls
• LLaMA Stack + Streamlit – RAG chatbot interface backed by PGVector for semantic document retrieval
• Helm-based deployment – One-command install and teardown on any OpenShift cluster

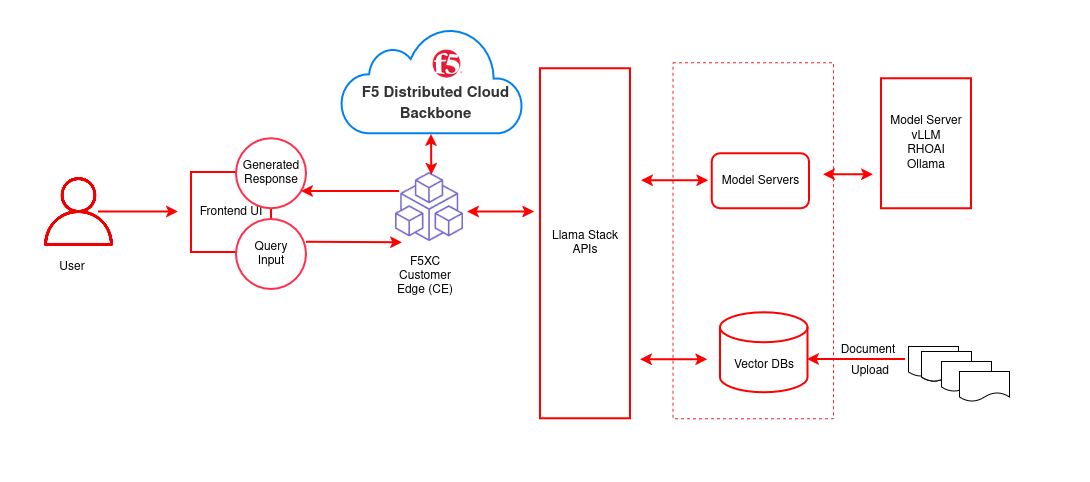

Architecture diagrams

Copy link

Requirements

Copy link

Minimum hardware requirements

Copy link

• LLM inference: GPU node (e.g. NVIDIA L4 or equivalent; see Supported Models table). The 70B model requires A100 x2 or equivalent.
• Embedding-only: CPU is sufficient for all-MiniLM-L6-v2.
• Cluster resources: minimum 8 vCPUs, 32 GB RAM, 100 GB disk for model weights and vector database.

Minimum software requirements

Copy link

• OpenShift Client CLI (oc)

• Red Hat OpenShift Container Platform 4.18+

• Red Hat OpenShift AI 2.16+ (tested with 2.22)

• Helm CLI

• Optional: huggingface-cli, Hugging Face token, jq for example scripts

Required user permissions

Copy link

• Regular user for default deployment
• Cluster admin for advanced configurations (e.g. F5 XC integration)

Deploy

Copy link

Prerequisites

Copy link

• OpenShift cluster with OpenShift AI installed
• oc logged into the cluster
• Helm installed
• Hugging Face token and access to Meta Llama (and optionally Llama Guard for safety)

Supported models

Copy link

The 70B model is not required for initial testing. Llama-Guard-3-8B is optional.

Installation steps

Copy link

1. Log in to OpenShift

   oc login --token=<your_sha256_token> --server=<cluster-api-endpoint>


   Copy to Clipboard Toggle word wrap

2. Clone and go to the deployment directory

   git clone https://github.com/rh-ai-quickstart/f5-api-security.git
   cd f5-api-security/deploy/helm


   Copy to Clipboard Toggle word wrap

3. Configure and deploy

   Start by creating your values file:

   cp rag-values.yaml.example rag-values.yaml


   Copy to Clipboard Toggle word wrap

   Then choose one of the two deployment methods below and edit rag-values.yaml accordingly.

   ---

   Option A: Deploy models locally (GPU required)

   Copy link

   Best when you have GPU nodes on your cluster and want to run models entirely on-premises.

   In rag-values.yaml, enable one or more local models by setting enabled: true:

   global:
     models:
       # Quantized — 1 GPU, ~2–3 GB VRAM
       llama-3-2-1b-instruct-quantized:
         id: RedHatAI/Llama-3.2-1B-Instruct-quantized.w8a8
         enabled: true

       # Full precision — 1 GPU, ~6–8 GB VRAM
       llama-3-2-3b-instruct:
         id: meta-llama/Llama-3.2-3B-Instruct
         enabled: true


   Copy to Clipboard Toggle word wrap

   Note: If your GPU node has a taint (e.g., nvidia.com/gpu), add the corresponding toleration to the model's config block. See rag-values.yaml for examples.

   ---

   Option B: Use a remote LLM (no local GPU required)

   Copy link

   Best when you want to connect to an existing model server—such as an external vLLM instance, OpenAI-compatible endpoint, or another cluster's inference service—without provisioning local GPUs.

   In rag-values.yaml, enable the remote model and supply the connection details:

   global:
     models:
           # No local GPU required (runs on remote server)
       remoteLLM:
             id: <MODEL_ID>
             url: <MODEL_SERVER_URL>
             apiToken: <API_TOKEN>
         enabled: true


   Copy to Clipboard Toggle word wrap

   Tip: You can combine both options—for example, run the embedding model locally while pointing the generation model at a remote server.

   ---

   Once your values file is ready, deploy:

   make install NAMESPACE=<NAMESPACE>


   Copy to Clipboard Toggle word wrap

   The Makefile validates dependencies (helm, oc), creates the namespace, and installs the Helm chart. A successful run ends with:

   [SUCCESS] rag installed successfully


   Copy to Clipboard Toggle word wrap

4. Verify (optional)
   List models:

   curl -sS http://llamastack-<NAMESPACE>.<YOUR_OPENSHIFT_CLUSTER>.com/v1/models


   Copy to Clipboard Toggle word wrap

   Test chat (LlamaStack):

   curl -sS http://llamastack-<NAMESPACE>.<YOUR_OPENSHIFT_CLUSTER>.com/v1/openai/v1/chat/completions \
     -H "Content-Type: application/json" \
     -d '{"model": "<MODEL_ID>", "messages": [{"role": "user", "content": "Say hello in one sentence."}], "max_tokens": 64, "temperature": 0}' | jq


   Copy to Clipboard Toggle word wrap

   For the secured vLLM endpoint, use your route and model ID in the same request format.

5. Next steps

   • Step 2: Deployment and Configuration of F5 Distributed Cloud
   • Step 3: Security Use Cases and Testing

Application access: Get the route with oc get route -n <NAMESPACE>, open the URL in a browser, and configure LLM settings (XC URL, model ID, API key) in the web UI.

Delete

Copy link

Remove the quickstart from the cluster:

cd f5-api-security/deploy/helm
make uninstall NAMESPACE=<NAMESPACE>

cd f5-api-security/deploy/helm
make uninstall NAMESPACE=<NAMESPACE>

This uninstalls the Helm release and removes pods, services, routes, and the pgvector PVC. To delete the namespace:

oc delete project <NAMESPACE>

oc delete project <NAMESPACE>

References

Copy link

• Make commands:

  make help             # Show all available commands
  make install          # Deploy the application
  make uninstall        # Remove the application
  make clean            # Clean up all resources including namespace
  make logs             # Show logs for all pods
  make monitor          # Monitor deployment status
  make validate-config  # Validate configuration values


  Copy to Clipboard Toggle word wrap

• F5 Distributed Cloud

• Red Hat OpenShift AI documentation

• KServe

• vLLM project

Document management

Copy link

Documents can be uploaded directly through the UI for RAG-based retrieval.

Supported formats:

• PDF documents — Underwriting guidelines, compliance policies, risk assessment reports
• Text files — Regulatory filings, internal procedure documents

Navigate to Settings → Vector Databases to create vector databases and upload documents.
