Summarize and analyze your observability data

Copy link

Create an interactive dashboard to analyze AI model performance and OpenShift cluster metrics using Prometheus.

Table of Contents

Copy link

1. Detailed description
   • The Challenge
   • Our Solution
   • Features
   • Current Manual Process
   • Our Solution Stack
   • Architecture diagrams
2. Requirements
   • Minimum hardware requirements
   • Minimum software requirements
   • Required user permissions
3. Deploy
   • Quick Start - OpenShift Deployment
   • Quick Start - Local Development
   • Usage
   • Delete
4. References
5. Tags

Detailed description

Copy link

The OpenShift AI Observability Summarizer turns OpenShift + OpenShift AI observability signals into plain-English, actionable insights. Instead of stitching together dashboards and raw metrics, teams can quickly understand performance, cost drivers, and operational risks across AI workloads and the platform that runs them.

The Challenge

Copy link

AI platform and SRE teams routinely need to answer questions like:

• “Is my model latency increasing? What changed?”
• “Are GPUs saturated or underutilized?”
• “Which namespace/workload is causing resource pressure?”
• “Do logs/traces correlate with the metric spike?”

Today, these answers often require jumping between tools, writing queries, correlating signals across systems, and then producing a shareable narrative for stakeholders.

Our Solution

Copy link

Provide a metrics-aware AI summarization layer on top of OpenShift observability:

• Curated + dynamically validated metrics catalog (OpenShift + GPU) used for accurate query selection
• Natural-language Chat with Prometheus that generates queries and explains results
• Dashboards for OpenShift fleet metrics, vLLM metrics, and hardware accelerators
• Report generation (HTML/PDF/Markdown) for sharing
• Optional alerting integrations (Slack notifications) when enabled

Features

Copy link

• Console-native experience: Works where platform teams already operate—inside the OpenShift Console.
• Faster time-to-answer: Turn “what changed?” questions into clear, structured summaries in minutes.
• Fleet + namespace insights: Move from cluster-wide trends to namespace-level signals without context switching.
• GPU & model visibility: Understand accelerator utilization and model-serving performance using the same workflow.
• Explainable outputs: Summaries come with supporting details so engineers can validate conclusions quickly.
• Shareable reporting: Export clean HTML/PDF/Markdown reports for stakeholders and incident reviews.

Current Manual Process

Copy link

Without this project, teams typically:

• Manually browse dashboards and write queries
• Manually identify the “right” metrics among thousands of candidates
• Copy/paste charts and raw values into a document
• Correlate symptoms across:
  • metrics (Prometheus/Thanos)
  • GPU telemetry (DCGM exporter)
  • traces (Tempo)
  • logs (Loki)
• Recreate the same analysis for each incident, model rollout, or performance regression

Our Solution Stack

Copy link

Data sources

• Prometheus / Thanos: OpenShift and workload metrics
• vLLM: model-serving metrics (when vLLM is used)
• DCGM exporter (optional): GPU metrics (temperature, power, utilization, memory)

Observability add-ons (optional / stack-managed)

• OpenTelemetry Collector: collects traces and enables auto-instrumentation flows
• Tempo: trace storage/query (integrated into OpenShift Console via UI plugin)
• Loki: log aggregation/query (integrated into OpenShift Console via UI plugin)
• MinIO: object storage backend for traces/logs persistence

Application components

• MCP server: metrics analysis, report generation, and AI tool-calling surface
• LLM runtime: local model deployment by default (or connect to an existing model via LLM_URL)
• UI
  • OpenShift Console Plugin (default, DEV_MODE=false)
  • Standalone React UI (DEV_MODE=true)

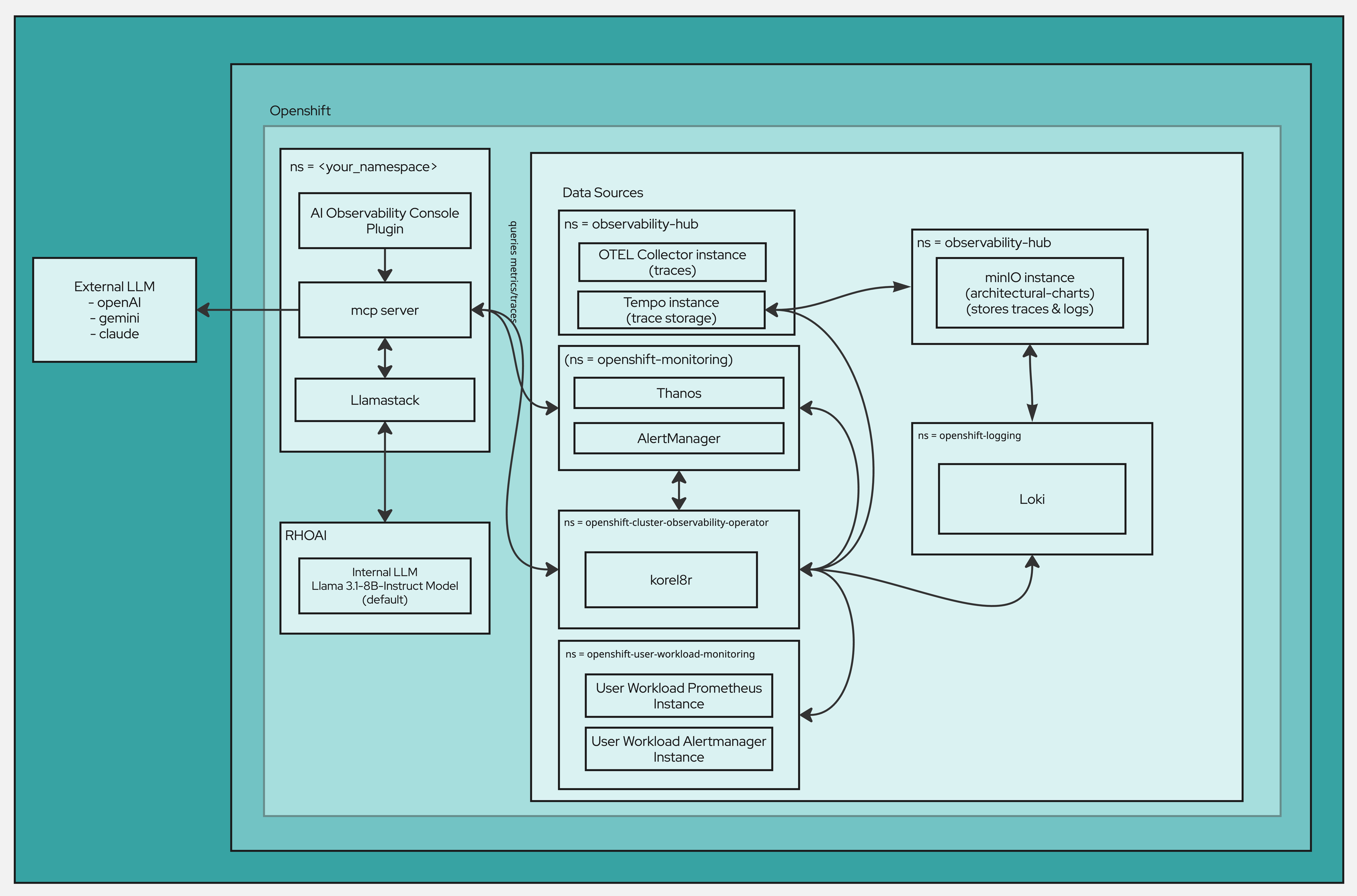

Architecture diagrams

Copy link

Simple flow

Copy link

1. Access the AI Observability experience in OpenShift—either embedded in the OpenShift Console or via the standalone UI.
2. Choose your analysis context (cluster, namespace, or model view and a time range), or ask a question using the chat interface.
3. The platform gathers the relevant observability signals from your environment, covering both the current state and how it has changed over time.
4. It synthesizes those signals into actionable insights, highlighting what appears healthy or unhealthy, the most likely contributors, and recommended next checks.
5. Share outcomes easily by exporting the findings as a report when needed.

Requirements

Copy link

Minimum hardware requirements

Copy link

• CPU: 4 cores (8 recommended)
• Memory: 8 GiB RAM (16 GiB recommended)
• Storage: 20 GiB (50 GiB recommended)
• GPU: optional (recommended for DCGM + model workloads)

Minimum software requirements

Copy link

• OpenShift: 4.18.33+
• OpenShift AI: 2.16.2+
• CLI tools:
  • oc
  • helm v3.x
  • yq
  • jq (used by Makefile flows)

Required user permissions

Copy link

• OpenShift: cluster-admin (or equivalent privileges for installing console plugins, cluster-wide observability components, and required RBAC).

Deploy

Copy link

Quick Start - OpenShift Deployment

Copy link

Default (production-style): OpenShift Console Plugin UI

make install NAMESPACE=your-namespace

Want to install with existing LLMs?

• No Hugging Face / no local model download (use an already-running model endpoint):

make install NAMESPACE=your-namespace LLM_URL=http://your-llm-endpoint

For developers - Standalone (development/standalone): React UI route

make install NAMESPACE=your-namespace DEV_MODE=true

Access

• Console Plugin (default): OpenShift Console → left navigation → AI Observability
• React UI (DEV_MODE=true): OpenShift Console → Networking → Routes (route name typically aiobs-react-ui)

Optional console menus

• Traces menu: make enable-tracing-ui
• Logs menu: make enable-logging-ui

Quick Start - Local Development

Copy link

Use the local dev helper to port-forward dependencies and run local components.

uv sync
./scripts/local-dev.sh -n your-namespace

Usage

Copy link

Enable AI Assistance

Copy link

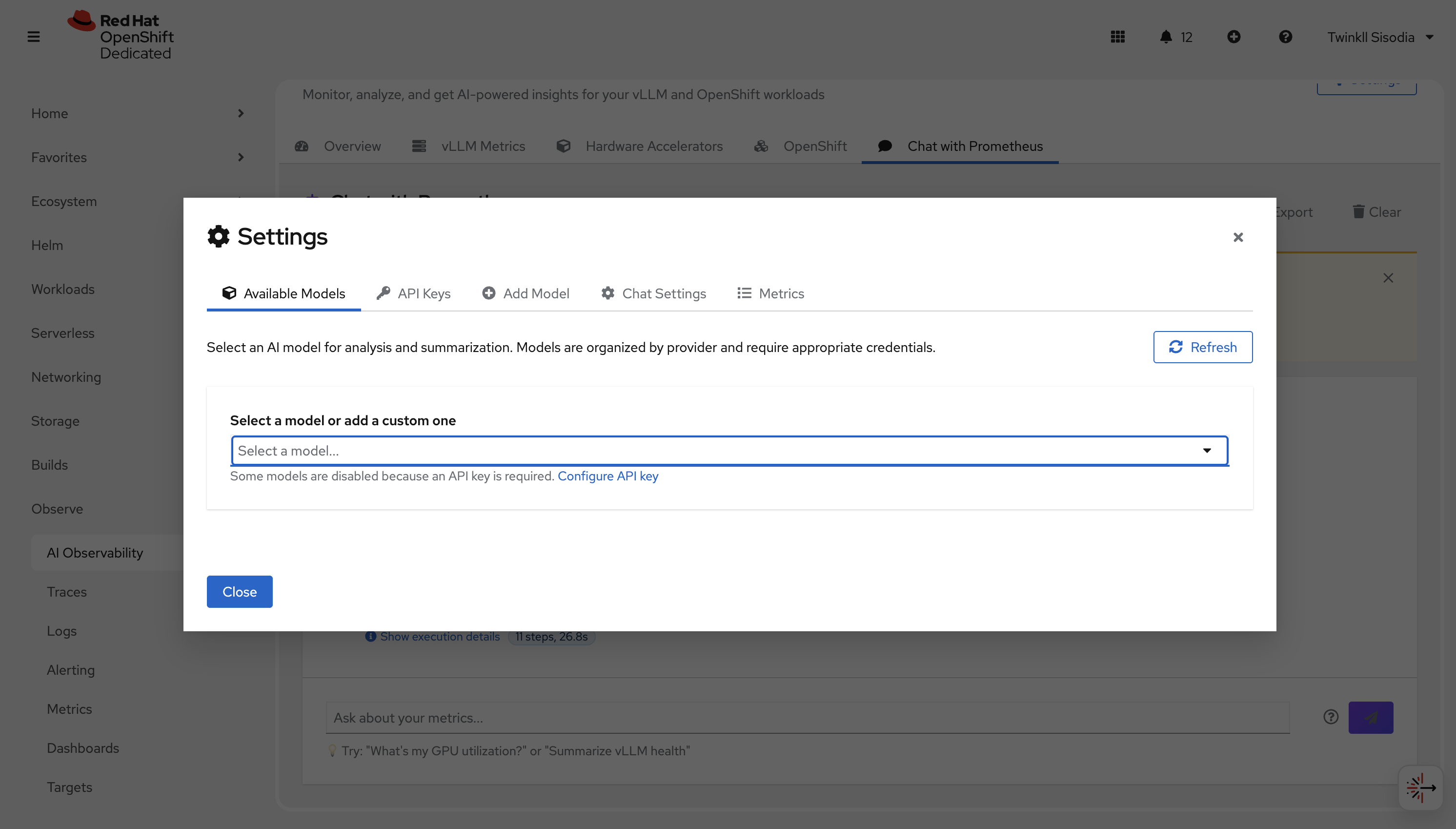

Navigate to settings and configure a model:

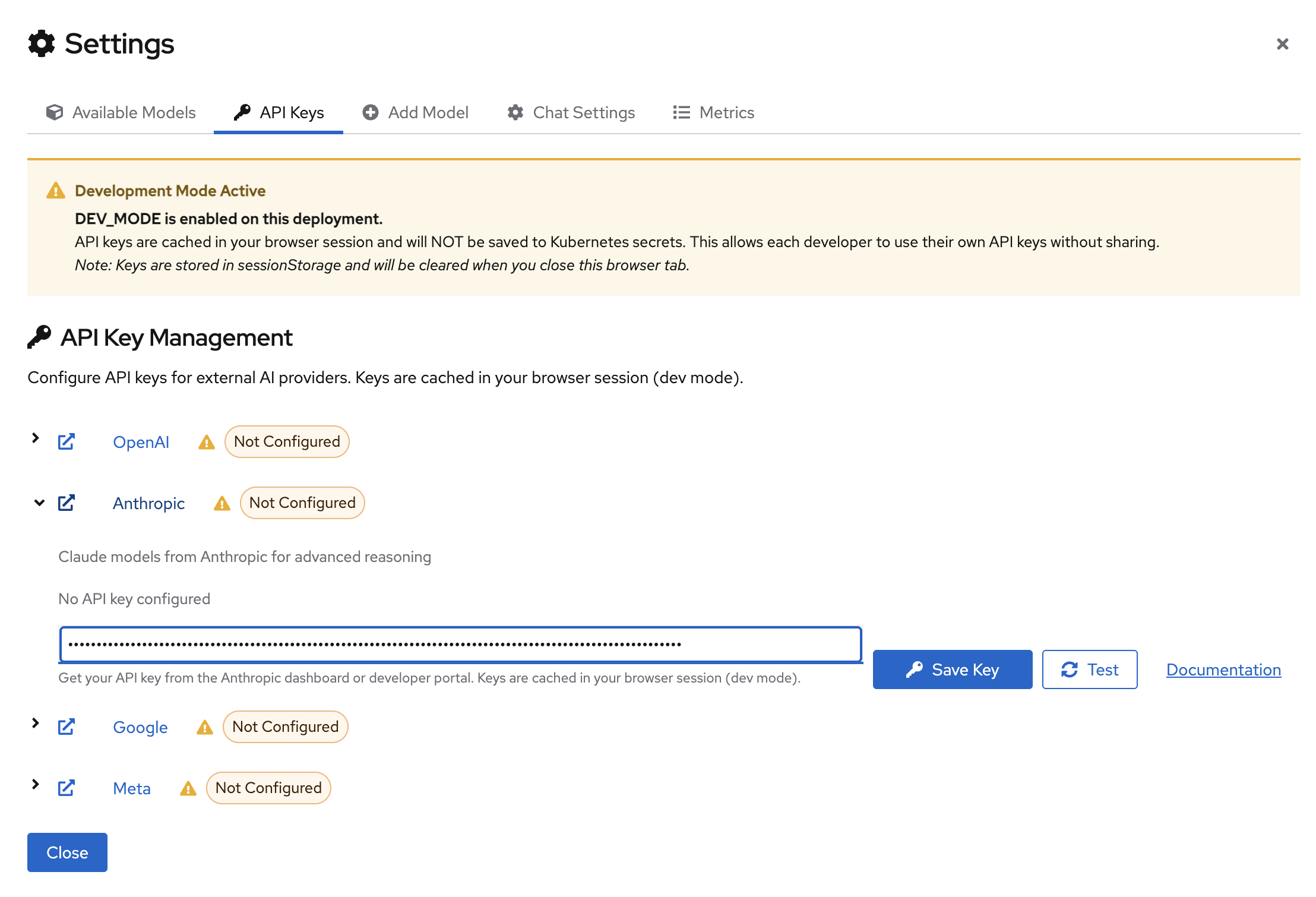

You can either set an API_KEY or add a custom model. Supported providers include OpenAI, Gemini, Anthropic, and Meta.

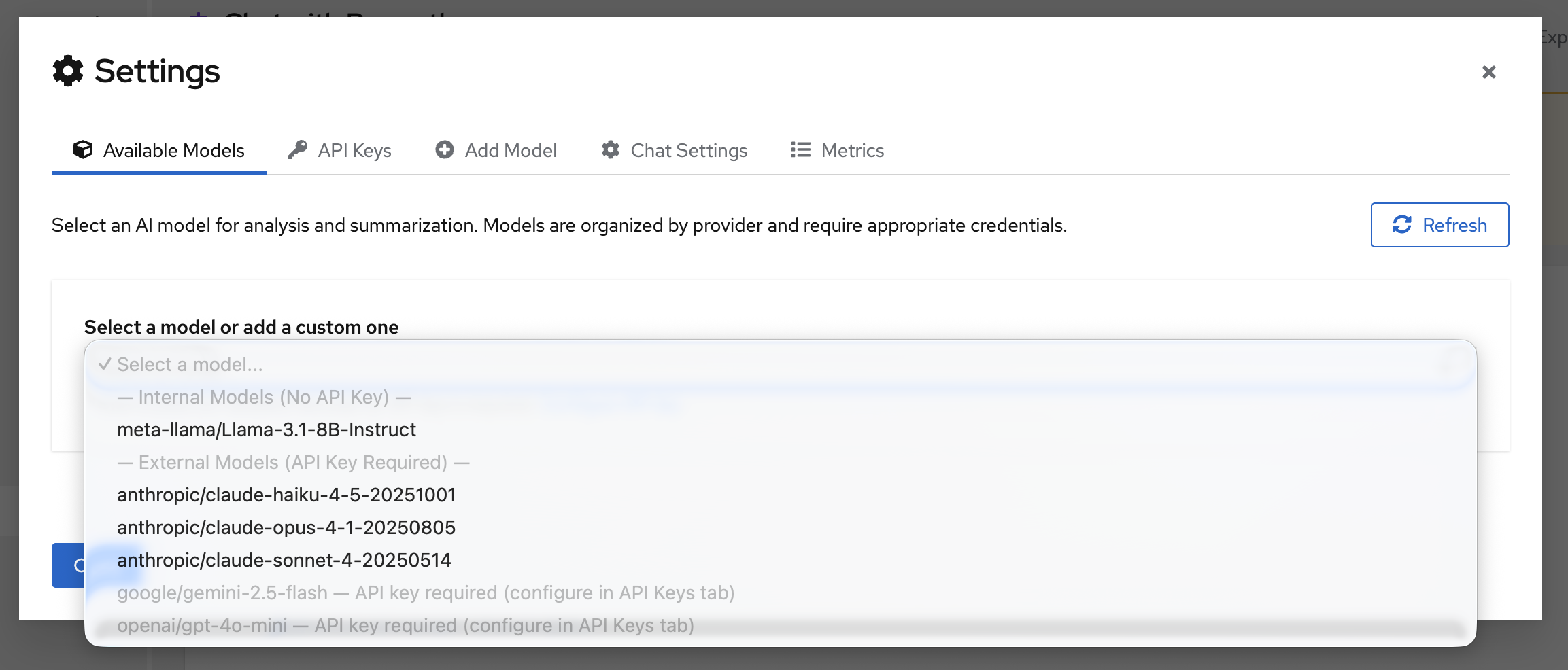

Once the model configuration is set, select your model from the dropdown:

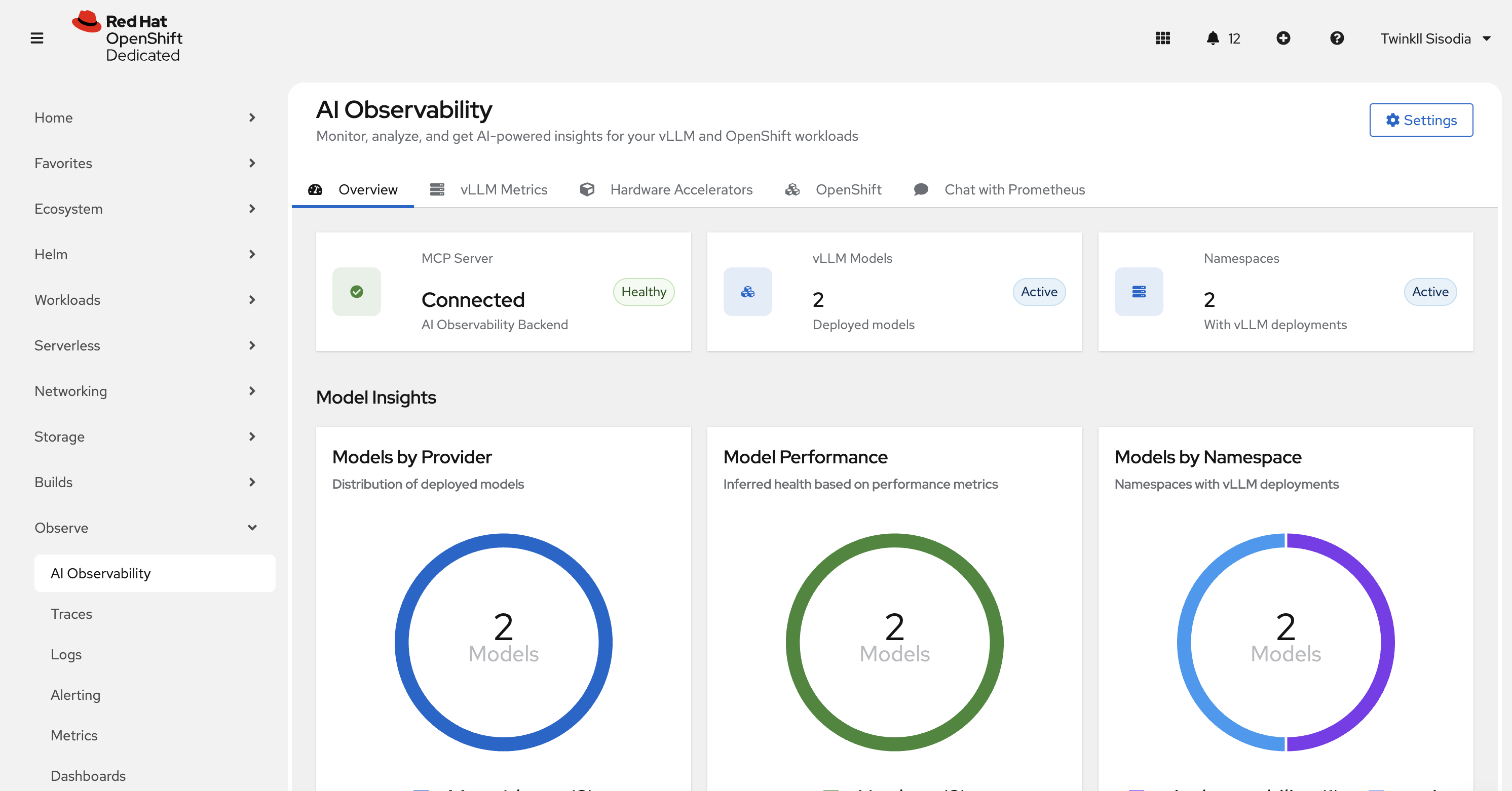

OpenShift Console Plugin (default)

Copy link

Open the OpenShift Console and navigate to AI Observability from the left navigation.

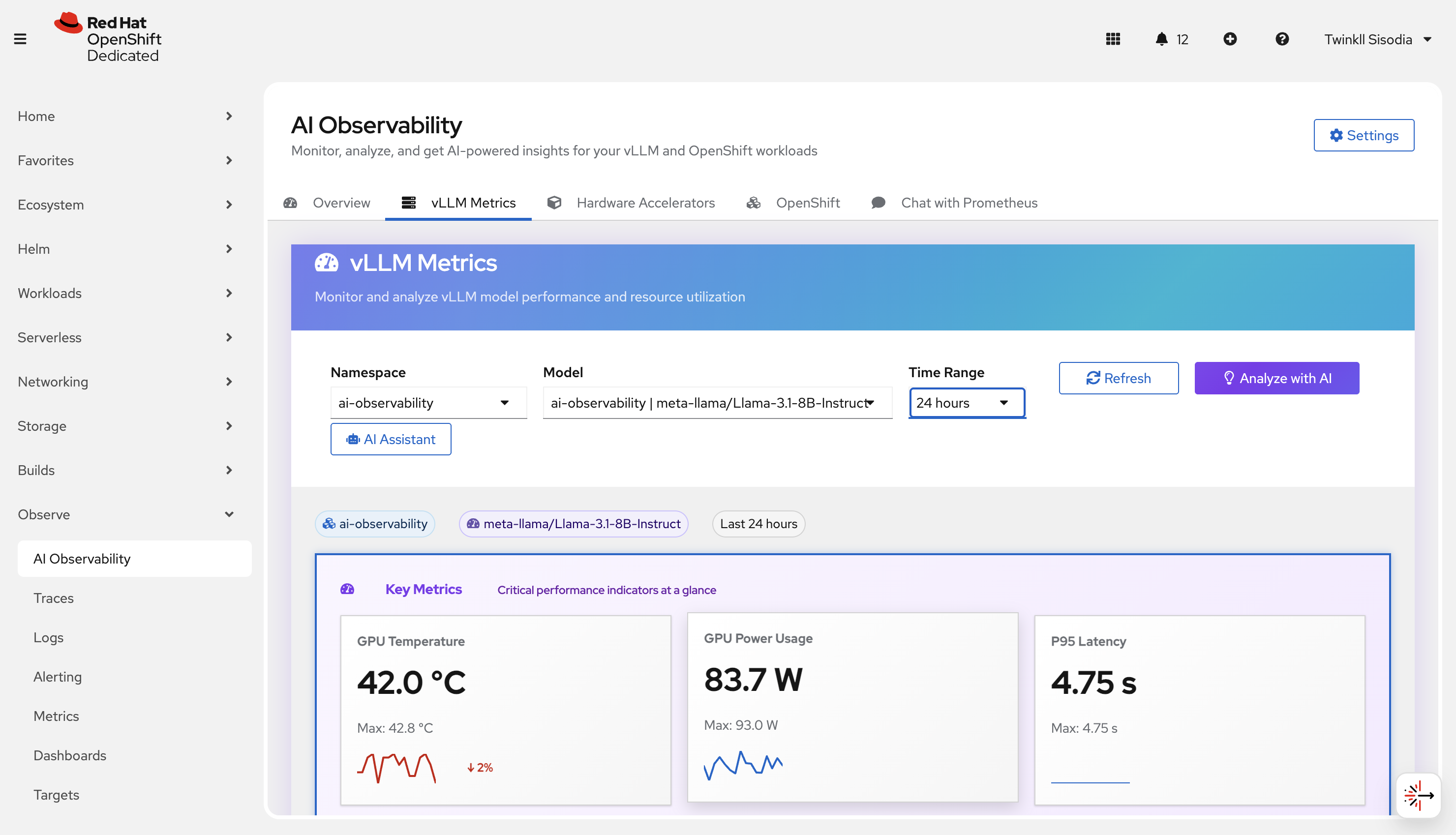

vLLM metrics

Copy link

Use this page to understand model-serving performance when vLLM metrics are present.

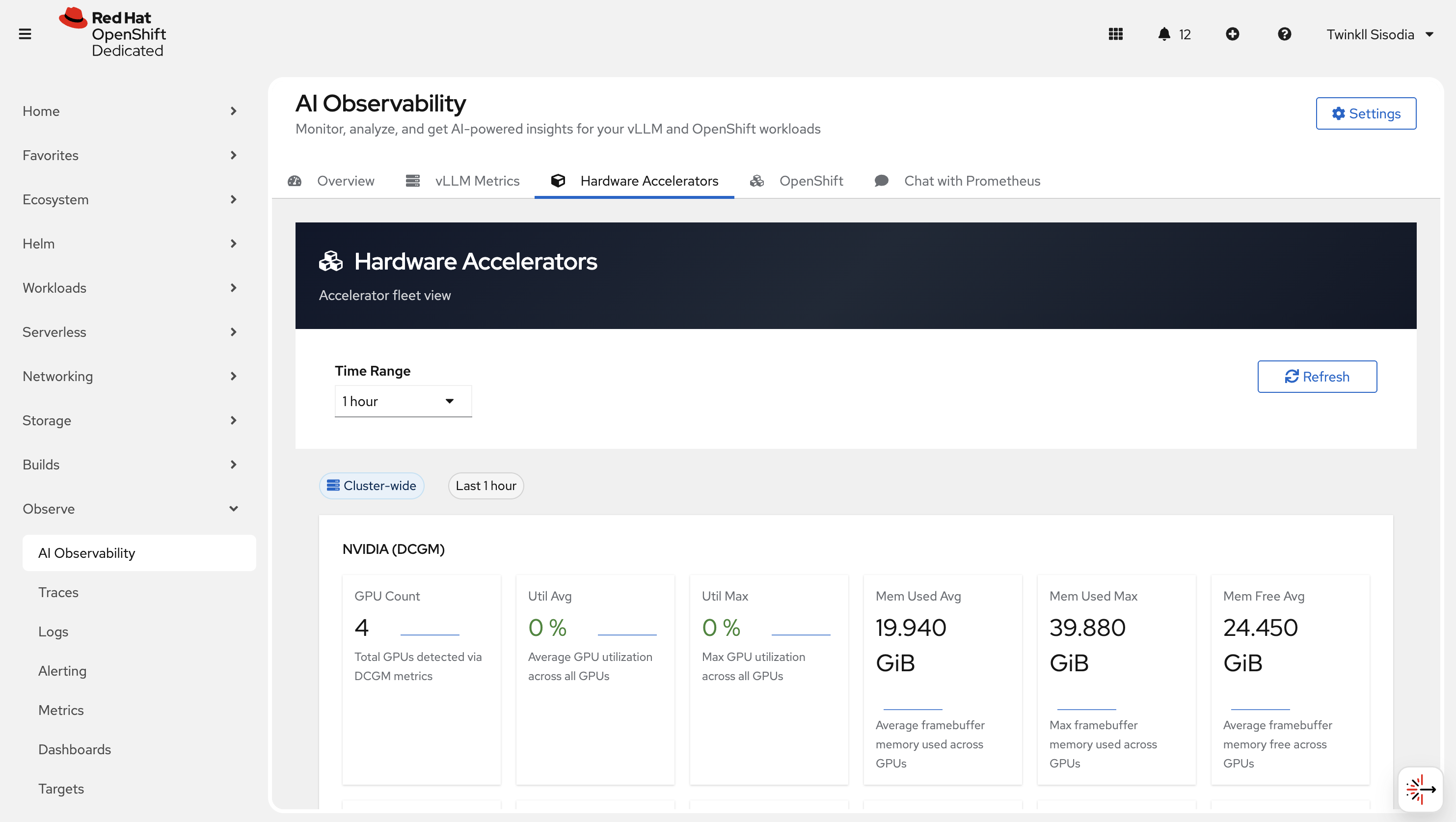

Hardware Accelerator

Copy link

Use this page to review accelerator-related signals (for example GPU utilization/health when available).

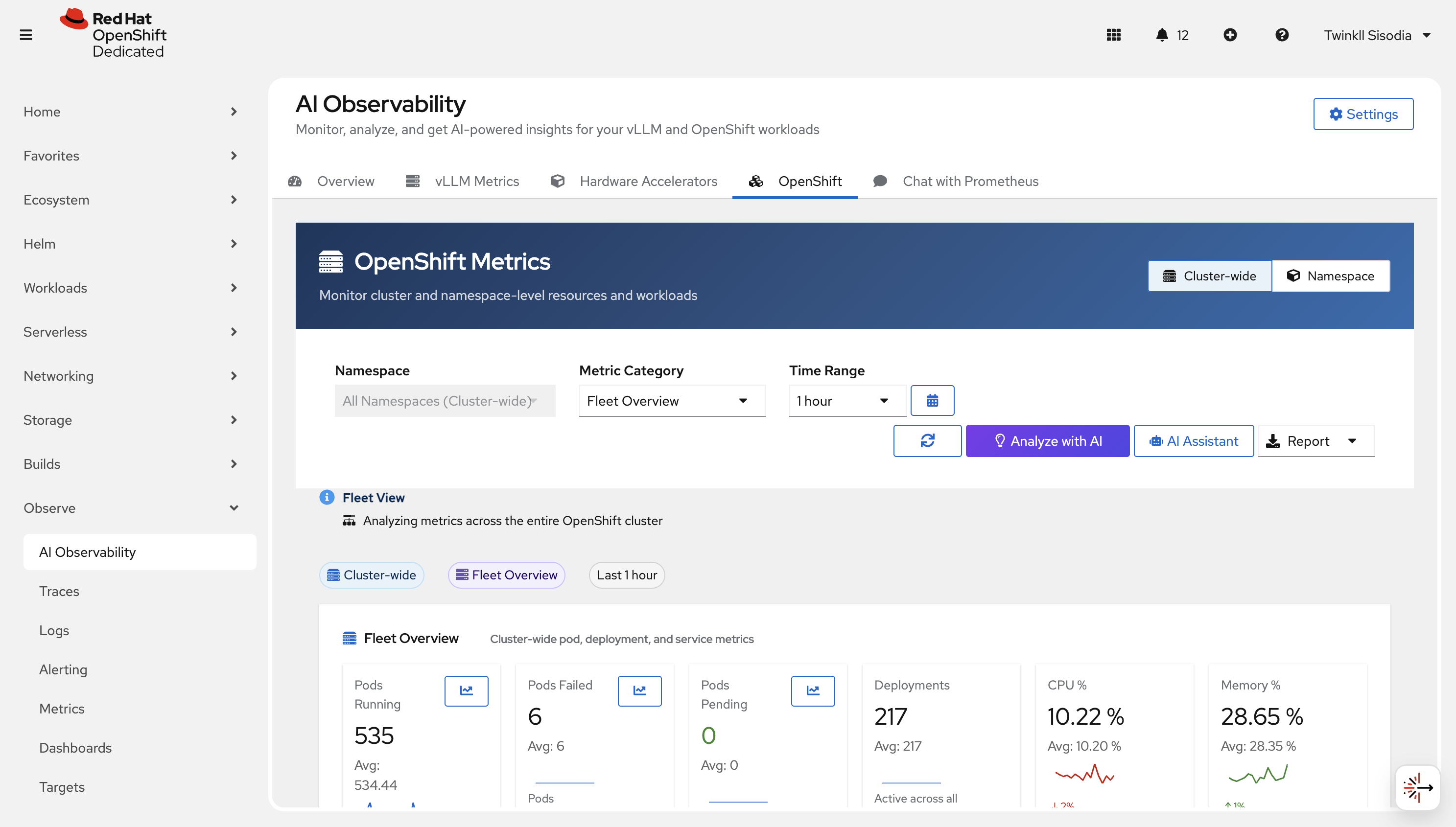

OpenShift metrics

Copy link

Use this page to analyze cluster-wide and namespace-scoped OpenShift metrics.

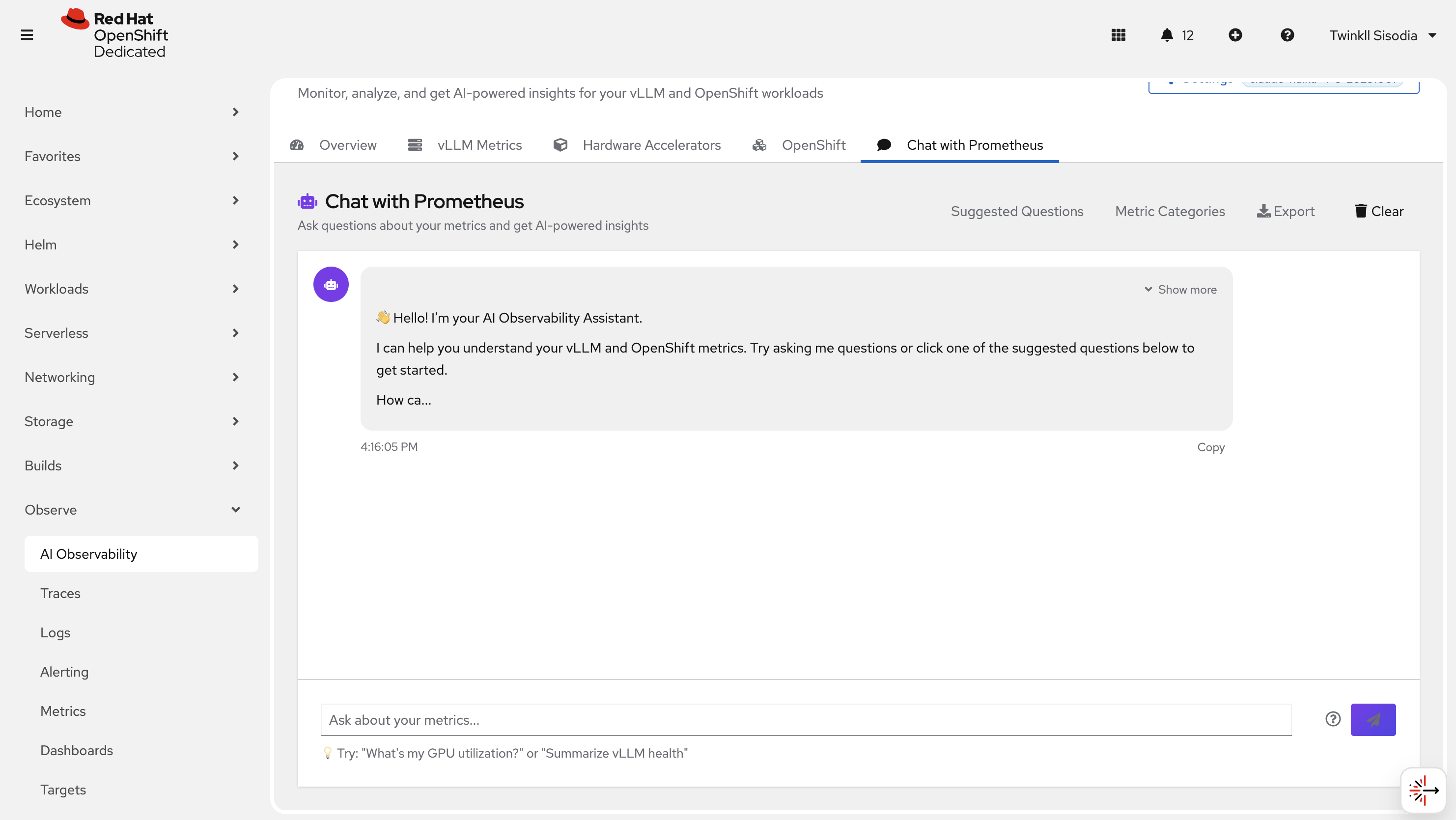

Chat with Prometheus

Copy link

Ask questions in natural language and get a query + explanation back.

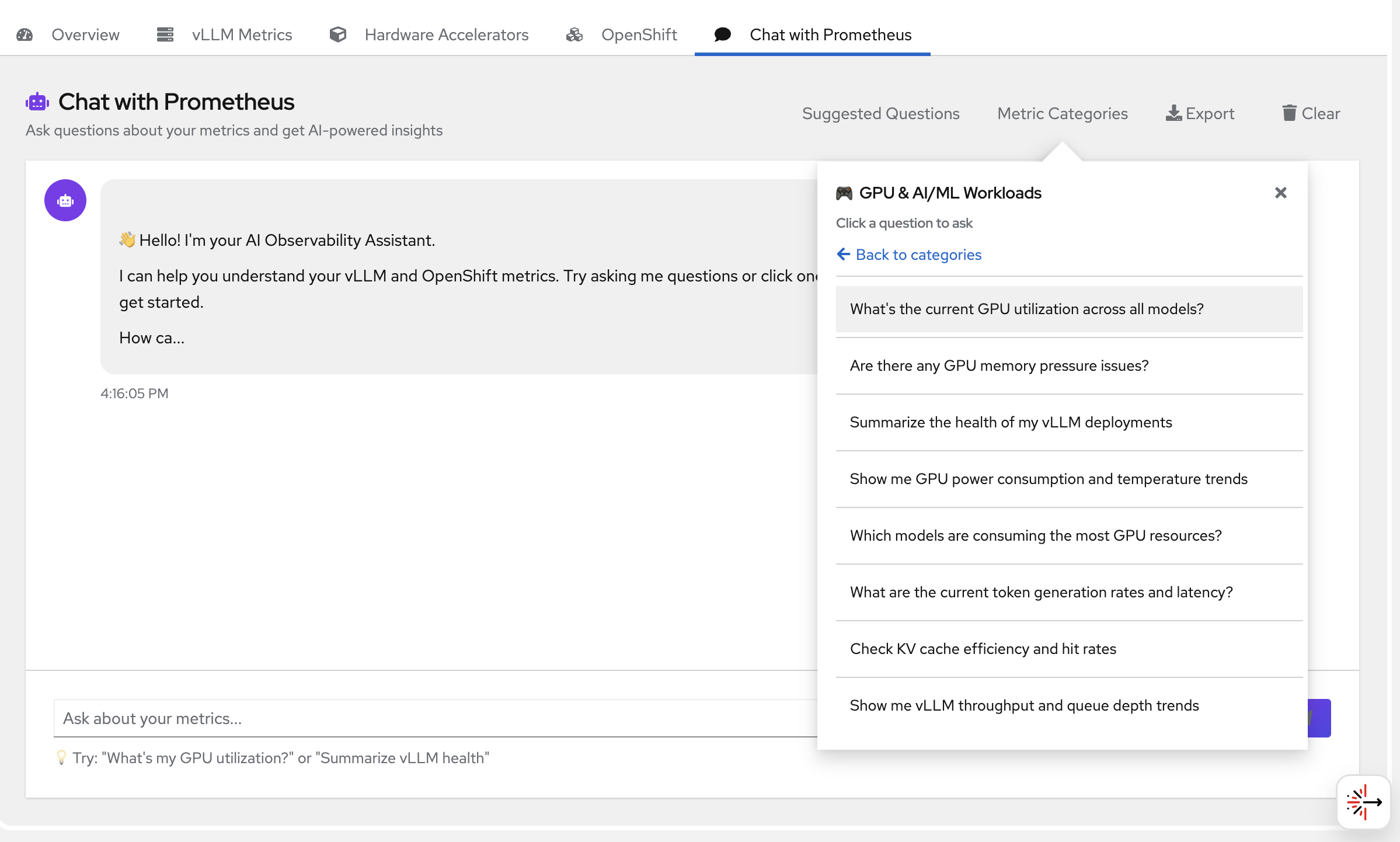

You can also navigate to suggested metrics and choose from the questions there -

Reports

Copy link

Export reports when needed (HTML/PDF/Markdown).

Observe → Traces / Observe → Logs (optional)

Copy link

If enabled in your cluster, use:

• Observe → Traces to view traces
• Observe → Logs to query logs

Delete

Copy link

Uninstall the deployment from the namespace:

make uninstall NAMESPACE=your-namespace

References

Copy link

• Uses Prometheus and Thanos
• Uses Tempo for traces
• Uses Loki for logs
• Uses vLLM for model serving (when applicable)
• Integrates with OpenTelemetry for distributed tracing and observability
