Chapter 1. Using Pipelines as Code

With Pipelines as Code, cluster administrators and users with the required privileges can define pipeline templates as part of source code Git repositories. When triggered by a source code push or a pull request for the configured Git repository, the feature runs the pipeline and reports the status.

1.1. Key features
Copy link

Pipelines as Code supports the following features:

  • Pull request status and control on the platform hosting the Git repository.
  • GitHub Checks API to set the status of a pipeline run, including rechecks.
  • GitHub pull request and commit events.
  • Pull request actions in comments, such as /retest.
  • Git events filtering and a separate pipeline for each event.
  • Automatic task resolution in OpenShift Pipelines, including local tasks, Tekton Hub, and remote URLs.
  • Retrieval of configurations using GitHub blobs and objects API.
  • Access Control List (ACL) over a GitHub organization, or using a Prow style OWNER file.
  • The tkn pac CLI plugin for managing bootstrapping and Pipelines as Code repositories.
  • Support for GitHub App, GitHub Webhook, Bitbucket Server, and Bitbucket Cloud.

Pipelines as Code is installed in the openshift-pipelines namespace when you install the Red Hat OpenShift Pipelines Operator. For more details, see Installing OpenShift Pipelines in the Additional resources section.

To disable the default installation of Pipelines as Code with the Operator, set the value of the enable parameter to false in the TektonConfig custom resource.

apiVersion: operator.tekton.dev/v1alpha1
kind: TektonConfig
metadata:
  name: config
spec:
  platforms:
    openshift:
      pipelinesAsCode:
        enable: false
        settings:
          application-name: Pipelines as Code CI
          auto-configure-new-github-repo: "false"
          bitbucket-cloud-check-source-ip: "true"
          hub-catalog-name: tekton
          hub-url: https://api.hub.tekton.dev/v1
          remote-tasks: "true"
          secret-auto-create: "true"
# ...
Copy to Clipboard Toggle word wrap

Optionally, you can run the following command:

$ oc patch tektonconfig config --type="merge" -p '{"spec": {"platforms": {"openshift":{"pipelinesAsCode": {"enable": false}}}}}'
Copy to Clipboard Toggle word wrap

To enable the default installation of Pipelines as Code with the Red Hat OpenShift Pipelines Operator, set the value of the enable parameter to true in the TektonConfig custom resource:

apiVersion: operator.tekton.dev/v1alpha1
kind: TektonConfig
metadata:
  name: config
spec:
    addon:
      enablePipelinesAsCode: false
...
Copy to Clipboard Toggle word wrap

Optionally, you can run the following command:

$ oc patch tektonconfig config --type="merge" -p '{"spec": {"platforms": {"openshift":{"pipelinesAsCode": {"enable": true}}}}}'
Copy to Clipboard Toggle word wrap

1.3. Installing Pipelines as Code CLI
Copy link

Cluster administrators can use the tkn pac and opc CLI tools on local machines or as containers for testing. The tkn pac and opc CLI tools are installed automatically when you install the tkn CLI for Red Hat OpenShift Pipelines.

You can install the tkn pac and opc version 1.9.1 binaries for the supported platforms:

After installing Pipelines as Code, cluster administrators can configure a Git repository hosting service provider. Currently, the following services are supported:

  • GitHub App
  • GitHub Webhook
  • GitLab
  • Bitbucket Server
  • Bitbucket Cloud
Note

GitHub App is the recommended service for using with Pipelines as Code.

1.5. Using Pipelines as Code with a GitHub App
Copy link

GitHub Apps act as a point of integration with Red Hat OpenShift Pipelines and bring the advantage of Git-based workflows to OpenShift Pipelines. Cluster administrators can configure a single GitHub App for all cluster users. For GitHub Apps to work with Pipelines as Code, ensure that the webhook of the GitHub App points to the Pipelines as Code event listener route (or ingress endpoint) that listens for GitHub events.

1.5.1. Configuring a GitHub App
Copy link

Cluster administrators can create a GitHub App by running the following command:

$ tkn pac bootstrap github-app
Copy to Clipboard Toggle word wrap

If the tkn pac CLI plugin is not installed, you can create the GitHub App manually.

Procedure

To create and configure a GitHub App manually for Pipelines as Code, perform the following steps:

  1. Sign in to your GitHub account.
  2. Go to Settings Developer settings GitHub Apps, and click New GitHub App.

  3. Provide the following information in the GitHub App form:

    • GitHub Application Name: OpenShift Pipelines
    • Homepage URL: OpenShift Console URL
    • Webhook URL: The Pipelines as Code route or ingress URL. You can find it by running the command echo https://$(oc get route -n openshift-pipelines pipelines-as-code-controller -o jsonpath='{.spec.host}').
    • Webhook secret: An arbitrary secret. You can generate a secret by executing the command openssl rand -hex 20.

  4. Select the following Repository permissions:

    • Checks: Read & Write
    • Contents: Read & Write
    • Issues: Read & Write
    • Metadata: Read-only
    • Pull request: Read & Write

  5. Select the following Organization permissions:

    • Members: Readonly
    • Plan: Readonly

  6. Select the following User permissions:

    • Commit comment
    • Issue comment
    • Pull request
    • Pull request review
    • Pull request review comment
    • Push
  7. Click Create GitHub App.
  8. On the Details page of the newly created GitHub App, note the App ID displayed at the top.
  9. In the Private keys section, click Generate Private key to automatically generate and download a private key for the GitHub app. Securely store the private key for future reference and usage.

To configure Pipelines as Code to access the newly created GitHub App, execute the following command:

+

$ oc -n openshift-pipelines create secret generic pipelines-as-code-secret \
        --from-literal github-private-key="$(cat <PATH_PRIVATE_KEY>)" \
1

        --from-literal github-application-id="<APP_ID>" \
2

        --from-literal webhook.secret="<WEBHOOK_SECRET>"
3
Copy to Clipboard Toggle word wrap
1
The path to the private key you downloaded while configuring the GitHub App.
2
The App ID of the GitHub App.
3
The webhook secret provided when you created the GitHub App.
Note

Pipelines as Code works automatically with GitHub Enterprise by detecting the header set from GitHub Enterprise and using it for the GitHub Enterprise API authorization URL.

As a cluster administrator, you can configure your GitHub App with the OpenShift Container Platform cluster to use Pipelines as Code. This configuration allows you to execute a set of tasks required for build deployment.

Prerequisites

You have installed the Red Hat OpenShift Pipelines pipelines-1.10 operator from the Operator Hub.

Procedure

  1. In the administrator perspective, navigate to Pipelines using the navigation pane.
  2. Click Setup GitHub App on the Pipelines page.
  3. Enter your GitHub App name. For example, pipelines-ci-clustername-testui.
  4. Click Setup.
  5. Enter your Git password when prompted in the browser.
  6. Click Create GitHub App for <username>, where <username> is your GitHub user name.

Verification

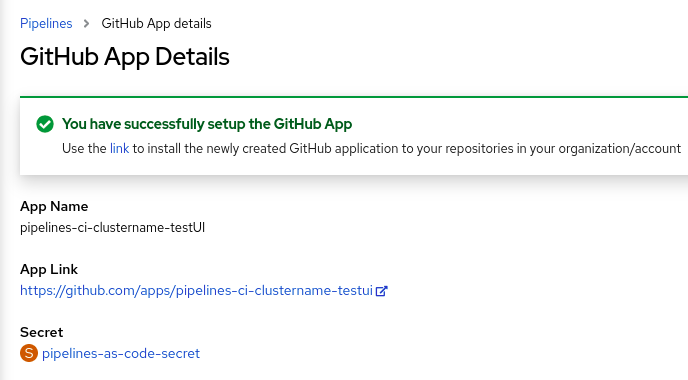

After successful creation of the GitHub App, the OpenShift Container Platform web console opens and displays the details about the application.

Github app details
View larger image
Github app details

The details of the GitHub App are saved as a secret in the openShift-pipelines namespace.

To view details such as name, link, and secret associated with the GitHub applications, navigate to Pipelines and click View GitHub App.

1.6. Using Pipelines as Code with GitHub Webhook
Copy link

Use Pipelines as Code with GitHub Webhook on your repository if you cannot create a GitHub App. However, using Pipelines as Code with GitHub Webhook does not give you access to the GitHub Check Runs API. The status of the tasks is added as comments on the pull request and is unavailable under the Checks tab.

Note

Pipelines as Code with GitHub Webhook does not support GitOps comments such as /retest and /ok-to-test. To restart the continuous integration (CI), create a new commit to the repository. For example, to create a new commit without any changes, you can use the following command:

$ git --amend -a --no-edit && git push --force-with-lease <origin> <branchname>
Copy to Clipboard Toggle word wrap

Prerequisites

  • Ensure that Pipelines as Code is installed on the cluster.

  • For authorization, create a personal access token on GitHub.

    • To generate a secure and fine-grained token, restrict its scope to a specific repository and grant the following permissions:

      Expand
      Table 1.1. Permissions for fine-grained tokens
      NameAccess

      Administration

      Read-only

      Metadata

      Read-only

      Content

      Read-only

      Commit statuses

      Read and Write

      Pull request

      Read and Write

      Webhooks

      Read and Write

    • To use classic tokens, set the scope as public_repo for public repositories and repo for private repositories. In addition, provide a short token expiration period and note the token in an alternate location.

      Note

      If you want to configure the webhook using the tkn pac CLI, add the admin:repo_hook scope.

Procedure

  1. Configure the webhook and create a Repository custom resource (CR).

    • To configure a webhook and create a Repository CR automatically using the tkn pac CLI tool, use the following command:

      $ tkn pac create repo
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Enter the Git repository url (default: https://github.com/owner/repo):
? Please enter the namespace where the pipeline should run (default: repo-pipelines):
! Namespace repo-pipelines is not found
? Would you like me to create the namespace repo-pipelines? Yes
✓ Repository owner-repo has been created in repo-pipelines namespace
✓ Setting up GitHub Webhook for Repository https://github.com/owner/repo
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
? Please enter the secret to configure the webhook for payload validation (default: sJNwdmTifHTs):  sJNwdmTifHTs
ℹ ️You now need to create a GitHub personal access token, please checkout the docs at https://docs.github.com/en/authentication/keeping-your-account-and-data-secure/creating-a-personal-access-token for the required scopes
? Please enter the GitHub access token:  ****************************************
✓ Webhook has been created on repository owner/repo
🔑 Webhook Secret owner-repo has been created in the repo-pipelines namespace.
🔑 Repository CR owner-repo has been updated with webhook secret in the repo-pipelines namespace
ℹ Directory .tekton has been created.
✓ We have detected your repository using the programming language Go.
✓ A basic template has been created in /home/Go/src/github.com/owner/repo/.tekton/pipelinerun.yaml, feel free to customize it.
      Copy to Clipboard Toggle word wrap

    • To configure a webhook and create a Repository CR manually, perform the following steps:

      1. On your OpenShift cluster, extract the public URL of the Pipelines as Code controller.

        $ echo https://$(oc get route -n pipelines-as-code pipelines-as-code-controller -o jsonpath='{.spec.host}')
        Copy to Clipboard Toggle word wrap

      2. On your GitHub repository or organization, perform the following steps:

        1. Go to Settings –> Webhooks and click Add webhook.
        2. Set the Payload URL to the Pipelines as Code controller public URL.
        3. Select the content type as application/json.

        4. Add a webhook secret and note it in an alternate location. With openssl installed on your local machine, generate a random secret.

          $ openssl rand -hex 20
          Copy to Clipboard Toggle word wrap
        5. Click Let me select individual events and select these events: Commit comments, Issue comments, Pull request, and Pushes.
        6. Click Add webhook.

      3. On your OpenShift cluster, create a Secret object with the personal access token and webhook secret.

        $ oc -n target-namespace create secret generic github-webhook-config \
  --from-literal provider.token="<GITHUB_PERSONAL_ACCESS_TOKEN>" \
  --from-literal webhook.secret="<WEBHOOK_SECRET>"
        Copy to Clipboard Toggle word wrap

      4. Create a Repository CR.

        Example: Repository CR

        apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
  url: "https://github.com/owner/repo"
  git_provider:
    secret:
      name: "github-webhook-config"
      key: "provider.token" # Set this if you have a different key in your secret
    webhook_secret:
      name: "github-webhook-config"
      key: "webhook.secret" # Set this if you have a different key for your secret
        Copy to Clipboard Toggle word wrap

        Note

        Pipelines as Code assumes that the OpenShift Secret object and the Repository CR are in the same namespace.

  2. Optional: For an existing Repository CR, add multiple GitHub Webhook secrets or provide a substitute for a deleted secret.

    1. Add a webhook using the tkn pac CLI tool.

      Example: Additional webhook using the tkn pac CLI

      $ tkn pac webhook add -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ✓ Setting up GitHub Webhook for Repository https://github.com/owner/repo
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
? Please enter the secret to configure the webhook for payload validation (default: AeHdHTJVfAeH):  AeHdHTJVfAeH
✓ Webhook has been created on repository owner/repo
🔑 Secret owner-repo has been updated with webhook secert in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

    2. Update the webhook.secret key in the existing OpenShift Secret object.

  3. Optional: For an existing Repository CR, update the personal access token.

    • Update the personal access token using the tkn pac CLI tool.

      Example: Updating personal access token using the tkn pac CLI

      $ tkn pac webhook update-token -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Please enter your personal access token:  ****************************************
🔑 Secret owner-repo has been updated with new personal access token in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

    • Alternatively, update the personal access token by modifying the Repository CR.

      1. Find the name of the secret in the Repository CR.

        apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
# ...
  git_provider:
    secret:
      name: "github-webhook-config"
# ...
        Copy to Clipboard Toggle word wrap

      2. Use the oc patch command to update the values of the $NEW_TOKEN in the $target_namespace namespace.

        $ oc -n $target_namespace patch secret github-webhook-config -p "{\"data\": {\"provider.token\": \"$(echo -n $NEW_TOKEN|base64 -w0)\"}}"
        Copy to Clipboard Toggle word wrap

Additional resources

1.7. Using Pipelines as Code with GitLab
Copy link

If your organization or project uses GitLab as the preferred platform, you can use Pipelines as Code for your repository with a webhook on GitLab.

Prerequisites

  • Ensure that Pipelines as Code is installed on the cluster.

  • For authorization, generate a personal access token as the manager of the project or organization on GitLab.

    Note
    • If you want to configure the webhook using the tkn pac CLI, add the admin:repo_hook scope to the token.
    • Using a token scoped for a specific project cannot provide API access to a merge request (MR) sent from a forked repository. In such cases, Pipelines as Code displays the result of a pipeline as a comment on the MR.

Procedure

  1. Configure the webhook and create a Repository custom resource (CR).

    • To configure a webhook and create a Repository CR automatically using the tkn pac CLI tool, use the following command:

      $ tkn pac create repo
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Enter the Git repository url (default: https://gitlab.com/owner/repo):
? Please enter the namespace where the pipeline should run (default: repo-pipelines):
! Namespace repo-pipelines is not found
? Would you like me to create the namespace repo-pipelines? Yes
✓ Repository repositories-project has been created in repo-pipelines namespace
✓ Setting up GitLab Webhook for Repository https://gitlab.com/owner/repo
? Please enter the project ID for the repository you want to be configured,
  project ID refers to an unique ID (e.g. 34405323) shown at the top of your GitLab project : 17103
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
? Please enter the secret to configure the webhook for payload validation (default: lFjHIEcaGFlF):  lFjHIEcaGFlF
ℹ ️You now need to create a GitLab personal access token with `api` scope
ℹ ️Go to this URL to generate one https://gitlab.com/-/profile/personal_access_tokens, see https://is.gd/rOEo9B for documentation
? Please enter the GitLab access token:  **************************
? Please enter your GitLab API URL::  https://gitlab.com
✓ Webhook has been created on your repository
🔑 Webhook Secret repositories-project has been created in the repo-pipelines namespace.
🔑 Repository CR repositories-project has been updated with webhook secret in the repo-pipelines namespace
ℹ Directory .tekton has been created.
✓ A basic template has been created in /home/Go/src/gitlab.com/repositories/project/.tekton/pipelinerun.yaml, feel free to customize it.
      Copy to Clipboard Toggle word wrap

    • To configure a webhook and create a Repository CR manually, perform the following steps:

      1. On your OpenShift cluster, extract the public URL of the Pipelines as Code controller.

        $ echo https://$(oc get route -n pipelines-as-code pipelines-as-code-controller -o jsonpath='{.spec.host}')
        Copy to Clipboard Toggle word wrap

      2. On your GitLab project, perform the following steps:

        1. Use the left sidebar to go to Settings –> Webhooks.
        2. Set the URL to the Pipelines as Code controller public URL.

        3. Add a webhook secret and note it in an alternate location. With openssl installed on your local machine, generate a random secret.

          $ openssl rand -hex 20
          Copy to Clipboard Toggle word wrap
        4. Click Let me select individual events and select these events: Commit comments, Issue comments, Pull request, and Pushes.
        5. Click Save changes.

      3. On your OpenShift cluster, create a Secret object with the personal access token and webhook secret.

        $ oc -n target-namespace create secret generic gitlab-webhook-config \
  --from-literal provider.token="<GITLAB_PERSONAL_ACCESS_TOKEN>" \
  --from-literal webhook.secret="<WEBHOOK_SECRET>"
        Copy to Clipboard Toggle word wrap

      4. Create a Repository CR.

        Example: Repository CR

        apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
  url: "https://gitlab.com/owner/repo" # The repository URL
  git_provider:
    #url: "https://gitlab.example.com/"
        1

    secret:
      name: "gitlab-webhook-config"
      key: "provider.token" # Set this if you have a different key in your secret
    webhook_secret:
      name: "gitlab-webhook-config"
      key: "webhook.secret" # Set this if you have a different key for your secret
        Copy to Clipboard Toggle word wrap

        1
        If you are using a private instance of GitLab and not GitLab.com, uncomment this field and set it to the URL of your GitLab API. The GitLab API is the same host as the repository. For example, if the repository is https://gitlab.example.com/owner/repo, the API URL is https://gitlab.example.com/.
    Note
    • Pipelines as Code assumes that the OpenShift Secret object and the Repository CR are in the same namespace.

  2. Optional: For an existing Repository CR, add multiple GitLab Webhook secrets or provide a substitute for a deleted secret.

    1. Add a webhook using the tkn pac CLI tool.

      Example: Adding additional webhook using the tkn pac CLI

      $ tkn pac webhook add -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ✓ Setting up GitLab Webhook for Repository https://gitlab.com/owner/repo
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
? Please enter the secret to configure the webhook for payload validation (default: AeHdHTJVfAeH):  AeHdHTJVfAeH
✓ Webhook has been created on repository owner/repo
🔑 Secret owner-repo has been updated with webhook secert in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

    2. Update the webhook.secret key in the existing OpenShift Secret object.

  3. Optional: For an existing Repository CR, update the personal access token.

    • Update the personal access token using the tkn pac CLI tool.

      Example: Updating personal access token using the tkn pac CLI

      $ tkn pac webhook update-token -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Please enter your personal access token:  ****************************************
🔑 Secret owner-repo has been updated with new personal access token in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

    • Alternatively, update the personal access token by modifying the Repository CR.

      1. Find the name of the secret in the Repository CR.

        ...
spec:
  git_provider:
    secret:
      name: "gitlab-webhook-config"
...
        Copy to Clipboard Toggle word wrap

      2. Use the oc patch command to update the values of the $NEW_TOKEN in the $target_namespace namespace.

        $ oc -n $target_namespace patch secret gitlab-webhook-config -p "{\"data\": {\"provider.token\": \"$(echo -n $NEW_TOKEN|base64 -w0)\"}}"
        Copy to Clipboard Toggle word wrap

Additional resources

1.8. Using Pipelines as Code with Bitbucket Cloud
Copy link

If your organization or project uses Bitbucket Cloud as the preferred platform, you can use Pipelines as Code for your repository with a webhook on Bitbucket Cloud.

Prerequisites

  • Ensure that Pipelines as Code is installed on the cluster.

  • Create an app password on Bitbucket Cloud.

    • Check the following boxes to add appropriate permissions to the token:

      • Account: Email, Read
      • Workspace membership: Read, Write
      • Projects: Read, Write
      • Issues: Read, Write

      • Pull requests: Read, Write

        Note
        • If you want to configure the webhook using the tkn pac CLI, add the Webhooks: Read and Write permission to the token.
        • Once generated, save a copy of the password or token in an alternate location.

Procedure

  1. Configure the webhook and create a Repository CR.

    • To configure a webhook and create a Repository CR automatically using the tkn pac CLI tool, use the following command:

      $ tkn pac create repo
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Enter the Git repository url (default: https://bitbucket.org/workspace/repo):
? Please enter the namespace where the pipeline should run (default: repo-pipelines):
! Namespace repo-pipelines is not found
? Would you like me to create the namespace repo-pipelines? Yes
✓ Repository workspace-repo has been created in repo-pipelines namespace
✓ Setting up Bitbucket Webhook for Repository https://bitbucket.org/workspace/repo
? Please enter your bitbucket cloud username:  <username>
ℹ ️You now need to create a Bitbucket Cloud app password, please checkout the docs at https://is.gd/fqMHiJ for the required permissions
? Please enter the Bitbucket Cloud app password:  ************************************
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
✓ Webhook has been created on repository workspace/repo
🔑 Webhook Secret workspace-repo has been created in the repo-pipelines namespace.
🔑 Repository CR workspace-repo has been updated with webhook secret in the repo-pipelines namespace
ℹ Directory .tekton has been created.
✓ A basic template has been created in /home/Go/src/bitbucket/repo/.tekton/pipelinerun.yaml, feel free to customize it.
      Copy to Clipboard Toggle word wrap

    • To configure a webhook and create a Repository CR manually, perform the following steps:

      1. On your OpenShift cluster, extract the public URL of the Pipelines as Code controller.

        $ echo https://$(oc get route -n pipelines-as-code pipelines-as-code-controller -o jsonpath='{.spec.host}')
        Copy to Clipboard Toggle word wrap

      2. On Bitbucket Cloud, perform the following steps:

        1. Use the left navigation pane of your Bitbucket Cloud repository to go to Repository settings –> Webhooks and click Add webhook.
        2. Set a Title. For example, "Pipelines as Code".
        3. Set the URL to the Pipelines as Code controller public URL.
        4. Select these events: Repository: Push, Pull Request: Created, Pull Request: Updated, and Pull Request: Comment created.
        5. Click Save.

      3. On your OpenShift cluster, create a Secret object with the app password in the target namespace.

        $ oc -n target-namespace create secret generic bitbucket-cloud-token \
  --from-literal provider.token="<BITBUCKET_APP_PASSWORD>"
        Copy to Clipboard Toggle word wrap

      4. Create a Repository CR.

        Example: Repository CR

        apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
  url: "https://bitbucket.com/workspace/repo"
  branch: "main"
  git_provider:
    user: "<BITBUCKET_USERNAME>"
        1

    secret:
      name: "bitbucket-cloud-token"
        2

      key: "provider.token" # Set this if you have a different key in your secret
        Copy to Clipboard Toggle word wrap

        1
        You can only reference a user by the ACCOUNT_ID in an owner file.
        2
        Pipelines as Code assumes that the secret referred in the git_provider.secret spec and the Repository CR is in the same namespace.
    Note
    • The tkn pac create and tkn pac bootstrap commands are not supported on Bitbucket Cloud.

    • Bitbucket Cloud does not support webhook secrets. To secure the payload and prevent hijacking of the CI, Pipelines as Code fetches the list of Bitbucket Cloud IP addresses and ensures that the webhook receptions come only from those IP addresses.

      • To disable the default behavior, set the bitbucket-cloud-check-source-ip key to false in the Pipelines as Code config map for the pipelines-as-code namespace.
      • To allow additional safe IP addresses or networks, add them as comma separated values to the bitbucket-cloud-additional-source-ip key in the Pipelines as Code config map for the pipelines-as-code namespace.

  2. Optional: For an existing Repository CR, add multiple Bitbucket Cloud Webhook secrets or provide a substitute for a deleted secret.

    1. Add a webhook using the tkn pac CLI tool.

      Example: Adding additional webhook using the tkn pac CLI

      $ tkn pac webhook add -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ✓ Setting up Bitbucket Webhook for Repository https://bitbucket.org/workspace/repo
? Please enter your bitbucket cloud username:  <username>
👀 I have detected a controller url: https://pipelines-as-code-controller-openshift-pipelines.apps.example.com
? Do you want me to use it? Yes
✓ Webhook has been created on repository workspace/repo
🔑 Secret workspace-repo has been updated with webhook secret in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

      Note

      Use the [-n <namespace>] option with the tkn pac webhook add command only when the Repository CR exists in a namespace other than the default namespace.

    2. Update the webhook.secret key in the existing OpenShift Secret object.

  3. Optional: For an existing Repository CR, update the personal access token.

    • Update the personal access token using the tkn pac CLI tool.

      Example: Updating personal access token using the tkn pac CLI

      $ tkn pac webhook update-token -n repo-pipelines
      Copy to Clipboard Toggle word wrap

      Sample interactive output

      ? Please enter your personal access token:  ****************************************
🔑 Secret owner-repo has been updated with new personal access token in the repo-pipelines namespace.
      Copy to Clipboard Toggle word wrap

      Note

      Use the [-n <namespace>] option with the tkn pac webhook update-token command only when the Repository CR exists in a namespace other than the default namespace.

    • Alternatively, update the personal access token by modifying the Repository CR.

      1. Find the name of the secret in the Repository CR.

        ...
spec:
  git_provider:
    user: "<BITBUCKET_USERNAME>"
    secret:
      name: "bitbucket-cloud-token"
      key: "provider.token"
...
        Copy to Clipboard Toggle word wrap

      2. Use the oc patch command to update the values of the $password in the $target_namespace namespace.

        $ oc -n $target_namespace patch secret bitbucket-cloud-token -p "{\"data\": {\"provider.token\": \"$(echo -n $NEW_TOKEN|base64 -w0)\"}}"
        Copy to Clipboard Toggle word wrap

Additional resources

1.9. Using Pipelines as Code with Bitbucket Server
Copy link

If your organization or project uses Bitbucket Server as the preferred platform, you can use Pipelines as Code for your repository with a webhook on Bitbucket Server.

Prerequisites

  • Ensure that Pipelines as Code is installed on the cluster.

  • Generate a personal access token as the manager of the project on Bitbucket Server, and save a copy of it in an alternate location.

    Note
    • The token must have the PROJECT_ADMIN and REPOSITORY_ADMIN permissions.
    • The token must have access to forked repositories in pull requests.

Procedure

  1. On your OpenShift cluster, extract the public URL of the Pipelines as Code controller.

    $ echo https://$(oc get route -n pipelines-as-code pipelines-as-code-controller -o jsonpath='{.spec.host}')
    Copy to Clipboard Toggle word wrap

  2. On Bitbucket Server, perform the following steps:

    1. Use the left navigation pane of your Bitbucket Data Center repository to go to Repository settings –> Webhooks and click Add webhook.
    2. Set a Title. For example, "Pipelines as Code".
    3. Set the URL to the Pipelines as Code controller public URL.

    4. Add a webhook secret and save a copy of it in an alternate location. If you have openssl installed on your local machine, generate a random secret using the following command:

      $ openssl rand -hex 20
      Copy to Clipboard Toggle word wrap

    5. Select the following events:

      • Repository: Push
      • Repository: Modified
      • Pull Request: Opened
      • Pull Request: Source branch updated
      • Pull Request: Comment added
    6. Click Save.

  3. On your OpenShift cluster, create a Secret object with the app password in the target namespace.

    $ oc -n target-namespace create secret generic bitbucket-server-webhook-config \
  --from-literal provider.token="<PERSONAL_TOKEN>" \
  --from-literal webhook.secret="<WEBHOOK_SECRET>"
    Copy to Clipboard Toggle word wrap

  4. Create a Repository CR.

    Example: Repository CR

    apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
  url: "https://bitbucket.com/workspace/repo"
  git_provider:
    url: "https://bitbucket.server.api.url/rest"
    1

    user: "<BITBUCKET_USERNAME>"
    2

    secret:
    3

      name: "bitbucket-server-webhook-config"
      key: "provider.token" # Set this if you have a different key in your secret
    webhook_secret:
      name: "bitbucket-server-webhook-config"
      key: "webhook.secret" # Set this if you have a different key for your secret
    Copy to Clipboard Toggle word wrap

    1
    Ensure that you have the right Bitbucket Server API URL without the /api/v1.0 suffix. Usually, the default install has a /rest suffix.
    2
    You can only reference a user by the ACCOUNT_ID in an owner file.
    3
    Pipelines as Code assumes that the secret referred in the git_provider.secret spec and the Repository CR is in the same namespace.
    Note

    The tkn pac create and tkn pac bootstrap commands are not supported on Bitbucket Server.

Additional resources

To configure Pipelines as Code with a Git repository that is accessible with a privately signed or custom certificate, you can expose the certificate to Pipelines as Code.

Procedure

  • If you have installed Pipelines as Code using the Red Hat OpenShift Pipelines Operator, you can add your custom certificate to the cluster using the Proxy object. The Operator exposes the certificate in all Red Hat OpenShift Pipelines components and workloads, including Pipelines as Code.

Additional resources

The Repository custom resource (CR) has the following primary functions:

  • Inform Pipelines as Code about processing an event from a URL.
  • Inform Pipelines as Code about the namespace for the pipeline runs.
  • Reference an API secret, username, or an API URL necessary for Git provider platforms when using webhook methods.
  • Provide the last pipeline run status for a repository.

You can use the tkn pac CLI or other alternative methods to create a Repository CR inside the target namespace. For example:

cat <<EOF|kubectl create -n my-pipeline-ci -f-
1


apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: project-repository
spec:
  url: "https://github.com/<repository>/<project>"
EOF
Copy to Clipboard Toggle word wrap
1
my-pipeline-ci is the target namespace.

Whenever there is an event coming from the URL such as https://github.com/<repository>/<project>, Pipelines as Code matches it and starts checking out the content of the <repository>/<project> repository for pipeline run to match the content in the .tekton/ directory.

Note
  • You must create the Repository CRD in the same namespace where pipelines associated with the source code repository will be executed; it cannot target a different namespace.
  • If multiple Repository CRDs match the same event, Pipelines as Code will process only the oldest one. If you need to match a specific namespace, add the pipelinesascode.tekton.dev/target-namespace: "<mynamespace>" annotation. Such explicit targeting prevents a malicious actor from executing a pipeline run in a namespace to which they do not have access.

1.11.1. Setting concurrency limits
Copy link

You can use the concurrency_limit spec in the Repository custom resource definition (CRD) to define the maximum number of pipeline runs running simultaneously for a repository.

apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: my-repo
  namespace: target-namespace
spec:
# ...
  concurrency_limit: <number>
# ...
Copy to Clipboard Toggle word wrap

If there are multiple pipeline runs matching an event, the pipeline runs that match the event start in an alphabetical order.

For example, if you have three pipeline runs in the .tekton directory and you create a pull request with a concurrency_limit of 1 in the repository configuration, then all the pipeline runs are executed in an alphabetical order. At any given time, only one pipeline run is in the running state while the rest are queued.

1.12. Using Pipelines as Code resolver
Copy link

The Pipelines as Code resolver ensures that a running pipeline run does not conflict with others.

To split your pipeline and pipeline run, store the files in the .tekton/ directory or its subdirectories.

If Pipelines as Code observes a pipeline run with a reference to a task or a pipeline in any YAML file located in the .tekton/ directory, Pipelines as Code automatically resolves the referenced task to provide a single pipeline run with an embedded spec in a PipelineRun object.

If Pipelines as Code cannot resolve the referenced tasks in the Pipeline or PipelineSpec definition, the run fails before applying any changes to the cluster. You can see the issue on your Git provider platform and inside the events of the target namespace where the Repository CR is located.

The resolver skips resolving if it observes the following type of tasks:

  • A reference to a cluster task.
  • A task or pipeline bundle.
  • A custom task with an API version that does not have a tekton.dev/ prefix.

The resolver uses such tasks literally, without any transformation.

To test your pipeline run locally before sending it in a pull request, use the tkn pac resolve command.

You can also reference remote pipelines and tasks.

Pipelines as Code supports fetching remote tasks or pipelines by using annotations in a pipeline run. If you reference a remote task in a pipeline run, or a pipeline in a PipelineRun or a PipelineSpec object, the Pipelines as Code resolver automatically includes it. If there is any error while fetching the remote tasks or parsing them, Pipelines as Code stops processing the tasks.

To include remote tasks, refer to the following examples of annotation:

Reference remote tasks in Tekton Hub

  • Reference a single remote task in Tekton Hub.

    ...
  pipelinesascode.tekton.dev/task: "git-clone"
    1

...
    Copy to Clipboard Toggle word wrap
    1
    Pipelines as Code includes the latest version of the task from the Tekton Hub.

  • Reference multiple remote tasks from Tekton Hub

    ...
  pipelinesascode.tekton.dev/task: "[git-clone, golang-test, tkn]"
...
    Copy to Clipboard Toggle word wrap

  • Reference multiple remote tasks from Tekton Hub using the -<NUMBER> suffix.

    ...
  pipelinesascode.tekton.dev/task: "git-clone"
  pipelinesascode.tekton.dev/task-1: "golang-test"
  pipelinesascode.tekton.dev/task-2: "tkn"
    1

...
    Copy to Clipboard Toggle word wrap
    1
    By default, Pipelines as Code interprets the string as the latest task to fetch from Tekton Hub.

  • Reference a specific version of a remote task from Tekton Hub.

    ...
  pipelinesascode.tekton.dev/task: "[git-clone:0.1]"
    1

...
    Copy to Clipboard Toggle word wrap
    1
    Refers to the 0.1 version of the git-clone remote task from Tekton Hub.

Remote tasks using URLs

...
  pipelinesascode.tekton.dev/task: "<https://remote.url/task.yaml>"
1

...
Copy to Clipboard Toggle word wrap

1
The public URL to the remote task.
Note

Reference a task from a YAML file inside your repository

...
pipelinesascode.tekton.dev/task: "<share/tasks/git-clone.yaml>"
1

...
Copy to Clipboard Toggle word wrap

1
Relative path to the local file containing the task definition.

You can share a pipeline definition across multiple repositories by using the remote pipeline annotation.

...
    pipelinesascode.tekton.dev/pipeline: "<https://git.provider/raw/pipeline.yaml>"
1

...
Copy to Clipboard Toggle word wrap
1
URL to the remote pipeline definition. You can also provide locations for files inside the same repository.
Note

You can reference only one pipeline definition using the annotation.

To run pipelines using Pipelines as Code, you can create pipelines definitions or templates as YAML files in the .tekton/ directory of the repository. You can reference YAML files in other repositories using remote URLs, but pipeline runs are only triggered by events in the repository containing the .tekton/ directory.

The Pipelines as Code resolver bundles the pipeline runs with all tasks as a single pipeline run without external dependencies.

Note
  • For pipelines, use at least one pipeline run with a spec, or a separated Pipeline object.
  • For tasks, embed task spec inside a pipeline, or define it separately as a Task object.

Parameterizing commits and URLs

You can specify the parameters of your commit and URL by using dynamic, expandable variables with the {{<var>}} format. Currently, you can use the following variables:

  • {{repo_owner}}: The repository owner.
  • {{repo_name}}: The repository name.
  • {{repo_url}}: The repository full URL.
  • {{revision}}: Full SHA revision of a commit.
  • {{sender}}: The username or account id of the sender of the commit.
  • {{source_branch}}: The branch name where the event originated.
  • {{target_branch}}: The branch name that the event targets. For push events, it’s the same as the source_branch.
  • {{pull_request_number}}: The pull or merge request number, defined only for a pull_request event type.
  • {{git_auth_secret}}: The secret name that is generated automatically with Git provider’s token for checking out private repos.

Matching an event to a pipeline run

You can match different Git provider events with each pipeline by using special annotations on the pipeline run. If there are multiple pipeline runs matching an event, Pipelines as Code runs them in parallel and posts the results to the Git provider as soon a pipeline run finishes.

Matching a pull event to a pipeline run

You can use the following example to match the pipeline-pr-main pipeline with a pull_request event that targets the main branch:

...
  metadata:
    name: pipeline-pr-main
  annotations:
    pipelinesascode.tekton.dev/on-target-branch: "[main]"
1

    pipelinesascode.tekton.dev/on-event: "[pull_request]"
...
Copy to Clipboard Toggle word wrap
1
You can specify multiple branches by adding comma-separated entries. For example, "[main, release-nightly]". In addition, you can specify the following:
  • Full references to branches such as "refs/heads/main"
  • Globs with pattern matching such as "refs/heads/\*"
  • Tags such as "refs/tags/1.\*"

Matching a push event to a pipeline run

You can use the following example to match the pipeline-push-on-main pipeline with a push event targeting the refs/heads/main branch:

...
  metadata:
    name: pipeline-push-on-main
  annotations:
    pipelinesascode.tekton.dev/on-target-branch: "[refs/heads/main]"
1

    pipelinesascode.tekton.dev/on-event: "[push]"
...
Copy to Clipboard Toggle word wrap
1
You can specifiy multiple branches by adding comma-separated entries. For example, "[main, release-nightly]". In addition, you can specify the following:
  • Full references to branches such as "refs/heads/main"
  • Globs with pattern matching such as "refs/heads/\*"
  • Tags such as "refs/tags/1.\*"

Advanced event matching

Pipelines as Code supports using Common Expression Language (CEL) based filtering for advanced event matching. If you have the pipelinesascode.tekton.dev/on-cel-expression annotation in your pipeline run, Pipelines as Code uses the CEL expression and skips the on-target-branch annotation. Compared to the simple on-target-branch annotation matching, the CEL expressions allow complex filtering and negation.

To use CEL-based filtering with Pipelines as Code, consider the following examples of annotations:

  • To match a pull_request event targeting the main branch and coming from the wip branch:

    ...
  pipelinesascode.tekton.dev/on-cel-expression: |
    event == "pull_request" && target_branch == "main" && source_branch == "wip"
...
    Copy to Clipboard Toggle word wrap

  • To run a pipeline only if a path has changed, you can use the .pathChanged suffix function with a glob pattern:

    ...
  pipelinesascode.tekton.dev/on-cel-expression: |
    event == "pull_request" && "docs/\*.md".pathChanged()
    1

...
    Copy to Clipboard Toggle word wrap
    1
    Matches all markdown files in the docs directory.

  • To match all pull requests starting with the title [DOWNSTREAM]:

    ...
  pipelinesascode.tekton.dev/on-cel-expression: |
    event == "pull_request && event_title.startsWith("[DOWNSTREAM]")
...
    Copy to Clipboard Toggle word wrap

  • To run a pipeline on a pull_request event, but skip the experimental branch:

    ...
  pipelinesascode.tekton.dev/on-cel-expression: |
    event == "pull_request" && target_branch != experimental"
...
    Copy to Clipboard Toggle word wrap

For advanced CEL-based filtering while using Pipelines as Code, you can use the following fields and suffix functions:

  • event: A push or pull_request event.
  • target_branch: The target branch.
  • source_branch: The branch of origin of a pull_request event. For push events, it is same as the target_branch.
  • event_title: Matches the title of the event, such as the commit title for a push event, and the title of a pull or merge request for a pull_request event. Currently, only GitHub, Gitlab, and Bitbucket Cloud are the supported providers.
  • .pathChanged: A suffix function to a string. The string can be a glob of a path to check if the path has changed. Currently, only GitHub and Gitlab are supported as providers.

Using the temporary GitHub App token for Github API operations

You can use the temporary installation token generated by Pipelines as Code from GitHub App to access the GitHub API. The token value is stored in the temporary {{git_auth_secret}} dynamic variable generated for private repositories in the git-provider-token key.

For example, to add a comment to a pull request, you can use the github-add-comment task from Tekton Hub using a Pipelines as Code annotation:

...
  pipelinesascode.tekton.dev/task: "github-add-comment"
...
Copy to Clipboard Toggle word wrap

You can then add a task to the tasks section or finally tasks in the pipeline run definition:

[...]
tasks:
  - name:
      taskRef:
        name: github-add-comment
      params:
        - name: REQUEST_URL
          value: "{{ repo_url }}/pull/{{ pull_request_number }}"
1

        - name: COMMENT_OR_FILE
          value: "Pipelines as Code IS GREAT!"
        - name: GITHUB_TOKEN_SECRET_NAME
          value: "{{ git_auth_secret }}"
        - name: GITHUB_TOKEN_SECRET_KEY
          value: "git-provider-token"
...
Copy to Clipboard Toggle word wrap
1
By using the dynamic variables, you can reuse this snippet template for any pull request from any repository.
Note

On GitHub Apps, the generated installation token is available for 8 hours and scoped to the repository from where the events originate unless configured differently on the cluster.

Additional resources

With default configuration, Pipelines as Code runs any pipeline run in the .tekton/ directory of the default branch of repository, when specified events such as pull request or push occurs on the repository. For example, if a pipeline run on the default branch has the annotation pipelinesascode.tekton.dev/on-event: "[pull_request]", it will run whenever a pull request event occurs.

In the event of a pull request or a merge request, Pipelines as Code also runs pipelines from branches other than the default branch, if the following conditions are met by the author of the pull request:

  • The author is the owner of the repository.
  • The author is a collaborator on the repository.
  • The author is a public member on the organization of the repository.
  • The pull request author is listed in an OWNER file located in the repository root of the main branch as defined in the GitHub configuration for the repository. Also, the pull request author is added to either approvers or reviewers section. For example, if an author is listed in the approvers section, then a pull request raised by that author starts the pipeline run.
...
  approvers:
    - approved
...
Copy to Clipboard Toggle word wrap

If the pull request author does not meet the requirements, another user who meets the requirements can comment /ok-to-test on the pull request, and start the pipeline run.

Pipeline run execution

A pipeline run always runs in the namespace of the Repository custom resource definition (CRD) associated with the repository that generated the event.

You can observe the execution of your pipeline runs using the tkn pac CLI tool.

  • To follow the execution of the last pipeline run, use the following example:

    $ tkn pac logs -n <my-pipeline-ci> -L
    1
    Copy to Clipboard Toggle word wrap
    1
    my-pipeline-ci is the namespace for the Repository CRD.

  • To follow the execution of any pipeline run interactively, use the following example:

    $ tkn pac logs -n <my-pipeline-ci>
    1
    Copy to Clipboard Toggle word wrap
    1
    my-pipeline-ci is the namespace for the Repository CRD. If you need to view a pipeline run other than the last one, you can use the tkn pac logs command to select a PipelineRun attached to the repository:

If you have configured Pipelines as Code with a GitHub App, Pipelines as Code posts a URL in the Checks tab of the GitHub App. You can click the URL and follow the pipeline execution.

Restarting a pipeline run

You can restart a pipeline run with no events, such as sending a new commit to your branch or raising a pull request. On a GitHub App, go to the Checks tab and click Re-run.

If you target a pull or merge request, use the following comments inside your pull request to restart all or specific pipeline runs:

  • The /retest comment restarts all pipeline runs.
  • The /retest <pipelinerun-name> comment restarts a specific pipeline run.
  • The /cancel comment cancels all pipeline runs.
  • The /cancel <pipelinerun-name> comment cancels a specific pipeline run.

The results of the comments are visible under the Checks tab of a GitHub App.

Depending on the context and supported tools, you can monitor the status of a pipeline run in different ways.

Status on GitHub Apps

When a pipeline run finishes, the status is added in the Check tabs with limited information on how long each task of your pipeline took, and the output of the tkn pipelinerun describe command.

Log error snippet

When Pipelines as Code detects an error in one of the tasks of a pipeline, a small snippet consisting of the last 3 lines in the task breakdown of the first failed task is displayed.

Note

Pipelines as Code avoids leaking secrets by looking into the pipeline run and replacing secret values with hidden characters. However, Pipelines as Code cannot hide secrets coming from workspaces and envFrom source.

Annotations for log error snippets

In the Pipelines as Code config map, if you set the error-detection-from-container-logs parameter to true, Pipelines as Code detects the errors from the container logs and adds them as annotations on the pull request where the error occurred.

Important

Adding annotations for log error snippets is a Technology Preview feature only. Technology Preview features are not supported with Red Hat production service level agreements (SLAs) and might not be functionally complete. Red Hat does not recommend using them in production. These features provide early access to upcoming product features, enabling customers to test functionality and provide feedback during the development process.

For more information about the support scope of Red Hat Technology Preview features, see Technology Preview Features Support Scope.

Currently, Pipelines as Code supports only the simple cases where the error looks like makefile or grep output of the following format:

<filename>:<line>:<column>: <error message>
Copy to Clipboard Toggle word wrap

You can customize the regular expression used to detect the errors with the error-detection-simple-regexp parameter. The regular expression uses named groups to give flexibility on how to specify the matching. The groups needed to match are filename, line, and error. You can view the Pipelines as Code config map for the default regular expression.

Note

By default, Pipelines as Code scans only the last 50 lines of the container logs. You can increase this value in the error-detection-max-number-of-lines field or set -1 for an unlimited number of lines. However, such configurations may increase the memory usage of the watcher.

Status for webhook

For webhook, when the event is a pull request, the status is added as a comment on the pull or merge request.

Failures

If a namespace is matched to a Repository custom resource definition (CRD), Pipelines as Code emits its failure log messages in the Kubernetes events inside the namespace.

Status associated with Repository CRD

The last 5 status messages for a pipeline run is stored inside the Repository custom resource.

$ oc get repo -n <pipelines-as-code-ci>
Copy to Clipboard Toggle word wrap
NAME                  URL                                                        NAMESPACE             SUCCEEDED   REASON      STARTTIME   COMPLETIONTIME
pipelines-as-code-ci   https://github.com/openshift-pipelines/pipelines-as-code   pipelines-as-code-ci   True        Succeeded   59m         56m
Copy to Clipboard Toggle word wrap

Using the tkn pac describe command, you can extract the status of the runs associated with your repository and its metadata.

Notifications

Pipelines as Code does not manage notifications. If you need to have notifications, use the finally feature of pipelines.

Additional resources

Pipelines as Code supports private repositories by creating or updating a secret in the target namespace with the user token. The git-clone task from Tekton Hub uses the user token to clone private repositories.

Whenever Pipelines as Code creates a new pipeline run in the target namespace, it creates or updates a secret with the pac-gitauth-<REPOSITORY_OWNER>-<REPOSITORY_NAME>-<RANDOM_STRING> format.

You must reference the secret with the basic-auth workspace in your pipeline run and pipeline definitions, which is then passed on to the git-clone task.

...
  workspace:
  - name: basic-auth
    secret:
      secretName: "{{ git_auth_secret }}"
...
Copy to Clipboard Toggle word wrap

In the pipeline, you can reference the basic-auth workspace for the git-clone task to reuse:

...
workspaces:
  - name basic-auth
params:
    - name: repo_url
    - name: revision
...
tasks:
  workspaces:
    - name: basic-auth
      workspace: basic-auth
  ...
  tasks:
  - name: git-clone-from-catalog
      taskRef:
        name: git-clone
1

      params:
        - name: url
          value: $(params.repo_url)
        - name: revision
          value: $(params.revision)
...
Copy to Clipboard Toggle word wrap
1
The git-clone task picks up the basic-auth workspace and uses it to clone the private repository.

You can modify this configuration by setting the secret-auto-create flag to either a false or true value, as required in the Pipelines as Code config map.

Additional resources

There can be many pipeline runs in a user namespace. By setting the max-keep-runs annotation, you can configure Pipelines as Code to retain a limited number of pipeline runs that matches an event. For example:

...
  pipelinesascode.tekton.dev/max-keep-runs: "<max_number>"
1

...
Copy to Clipboard Toggle word wrap
1
Pipelines as Code starts cleaning up right after it finishes a successful execution, retaining only the maximum number of pipeline runs configured using the annotation.
Note
  • Pipelines as Code skips cleaning the running pipelines but cleans up the pipeline runs with an unknown status.
  • Pipelines as Code skips cleaning a failed pull request.

Using an incoming webhook URL and a shared secret, you can start a pipeline run in a repository.

To use incoming webhooks, specify the following within the spec section of the Repository custom resource definition (CRD):

  • The incoming webhook URL that Pipelines as Code matches.

  • The Git provider and the user token. Currently, Pipelines as Code supports github, gitlab, and bitbucket-cloud.

    Note

    When using incoming webhook URLs in the context of GitHub app, you must specify the token.

  • The target branches and a secret for the incoming webhook URL.

Example: Repository CRD with incoming webhook

apiVersion: "pipelinesascode.tekton.dev/v1alpha1"
kind: Repository
metadata:
  name: repo
  namespace: ns
spec:
  url: "https://github.com/owner/repo"
  git_provider:
    type: github
    secret:
      name: "owner-token"
  incoming:
    - targets:
      - main
      secret:
        name: repo-incoming-secret
      type: webhook-url
Copy to Clipboard Toggle word wrap

Example: The repo-incoming-secret secret for incoming webhook

apiVersion: v1
kind: Secret
metadata:
  name: repo-incoming-secret
  namespace: ns
type: Opaque
stringData:
  secret: <very-secure-shared-secret>
Copy to Clipboard Toggle word wrap

To trigger a pipeline run located in the .tekton directory of a Git repository, use the following command:

$ curl -X POST 'https://control.pac.url/incoming?secret=very-secure-shared-secret&repository=repo&branch=main&pipelinerun=target_pipelinerun'
Copy to Clipboard Toggle word wrap

Pipelines as Code matches the incoming URL and treats it as a push event. However, Pipelines as Code does not report status of the pipeline runs triggered by this command.

To get a report or a notification, add it directly with a finally task to your pipeline. Alternatively, you can inspect the Repository CRD with the tkn pac CLI tool.

1.19. Customizing Pipelines as Code configuration
Copy link

To customize Pipelines as Code, cluster administrators can configure the following parameters using the pipelines-as-code config map in the pipelines-as-code namespace:

Expand
Table 1.2. Customizing Pipelines as Code configuration
ParameterDescriptionDefault

application-name

The name of the application. For example, the name displayed in the GitHub Checks labels.

"Pipelines as Code CI"

max-keep-days

The number of the days for which the executed pipeline runs are kept in the pipelines-as-code namespace.

Note that this configmap setting does not affect the cleanups of a user’s pipeline runs, which are controlled by the annotations on the pipeline run definition in the user’s GitHub repository.



secret-auto-create

Indicates whether or not a secret should be automatically created using the token generated in the GitHub application. This secret can then be used with private repositories.

enabled

remote-tasks

When enabled, allows remote tasks from pipeline run annotations.

enabled

hub-url

The base URL for the Tekton Hub API.

https://hub.tekton.dev/

hub-catalog-name

The Tekton Hub catalog name.

tekton

tekton-dashboard-url

The URL of the Tekton Hub dashboard. Pipelines as Code uses this URL to generate a PipelineRun URL on the Tekton Hub dashboard.

NA

bitbucket-cloud-check-source-ip

Indicates whether to secure the service requests by querying IP ranges for a public Bitbucket. Changing the parameter’s default value might result into a security issue.

enabled

bitbucket-cloud-additional-source-ip

Indicates whether to provide an additional set of IP ranges or networks, which are separated by commas.

NA

max-keep-run-upper-limit

A maximum limit for the max-keep-run value for a pipeline run.

NA

default-max-keep-runs

A default limit for the max-keep-run value for a pipeline run. If defined, the value is applied to all pipeline runs that do not have a max-keep-run annotation.

NA

auto-configure-new-github-repo

Configures new GitHub repositories automatically. Pipelines as Code sets up a namespace and creates a custom resource for your repository. This parameter is only supported with GitHub applications.

disabled

auto-configure-repo-namespace-template

Configures a template to automatically generate the namespace for your new repository, if auto-configure-new-github-repo is enabled.

{repo_name}-pipelines

error-log-snippet

Enables or disables the view of a log snippet for the failed tasks, with an error in a pipeline. You can disable this parameter in the case of data leakage from your pipeline.

enabled

1.20. Pipelines as Code command reference
Copy link

The tkn pac CLI tool offers the following capabilities:

  • Bootstrap Pipelines as Code installation and configuration.
  • Create a new Pipelines as Code repository.
  • List all Pipelines as Code repositories.
  • Describe a Pipelines as Code repository and the associated runs.
  • Generate a simple pipeline run to get started.
  • Resolve a pipeline run as if it was executed by Pipelines as Code.
Tip

You can use the commands corresponding to the capabilities for testing and experimentation, so that you don’t have to make changes to the Git repository containing the application source code.

1.20.1. Basic syntax
Copy link

$ tkn pac [command or options] [arguments]
Copy to Clipboard Toggle word wrap

1.20.2. Global options
Copy link

$ tkn pac --help
Copy to Clipboard Toggle word wrap

1.20.3. Utility commands
Copy link

1.20.3.1. bootstrap
Copy link

Expand
Table 1.3. Bootstrapping Pipelines as Code installation and configuration
CommandDescription

tkn pac bootstrap

Installs and configures Pipelines as Code for Git repository hosting service providers, such as GitHub and GitHub Enterprise.

tkn pac bootstrap --nightly

Installs the nightly build of Pipelines as Code.

tkn pac bootstrap --route-url <public_url_to_ingress_spec>

Overrides the OpenShift route URL.

By default, tkn pac bootstrap detects the OpenShift route, which is automatically associated with the Pipelines as Code controller service.

If you do not have an OpenShift Container Platform cluster, it asks you for the public URL that points to the ingress endpoint.

tkn pac bootstrap github-app

Create a GitHub application and secrets in the pipelines-as-code namespace.

1.20.3.2. repository
Copy link

Expand
Table 1.4. Managing Pipelines as Code repositories
CommandDescription

tkn pac repo create

Creates a new Pipelines as Code repository and a namespace based on the pipeline run template.

tkn pac repo list

Lists all the Pipelines as Code repositories and displays the last status of the associated runs.

tkn pac repo describe

Describes a Pipelines as Code repository and the associated runs.

1.20.3.3. generate
Copy link

Expand
Table 1.5. Generating pipeline runs using Pipelines as Code
CommandDescription

tkn pac generate

Generates a simple pipeline run.

When executed from the directory containing the source code, it automatically detects current Git information.

In addition, it uses basic language detection capability and adds extra tasks depending on the language.

For example, if it detects a setup.py file at the repository root, the pylint task is automatically added to the generated pipeline run.

1.20.3.4. resolve
Copy link

Expand
Table 1.6. Resolving and executing pipeline runs using Pipelines as Code
CommandDescription

tkn pac resolve

Executes a pipeline run as if it is owned by the Pipelines as Code on service.

tkn pac resolve -f .tekton/pull-request.yaml | oc apply -f -

Displays the status of a live pipeline run that uses the template in .tekton/pull-request.yaml.

Combined with a Kubernetes installation running on your local machine, you can observe the pipeline run without generating a new commit.

If you run the command from a source code repository, it attempts to detect the current Git information and automatically resolve parameters such as current revision or branch.

tkn pac resolve -f .tekton/pr.yaml -p revision=main -p repo_name=<repository_name>

Executes a pipeline run by overriding default parameter values derived from the Git repository.

The -f option can also accept a directory path and apply the tkn pac resolve command on all .yaml or .yml files in that directory. You can also use the -f flag multiple times in the same command.

You can override the default information gathered from the Git repository by specifying parameter values using the -p option. For example, you can use a Git branch as a revision and a different repository name.

Back to top
Red Hat logoGithubredditYoutubeTwitter

Learn

Try, buy, & sell

Communities

About Red Hat Documentation

We help Red Hat users innovate and achieve their goals with our products and services with content they can trust. Explore our recent updates.

Making open source more inclusive

Red Hat is committed to replacing problematic language in our code, documentation, and web properties. For more details, see the Red Hat Blog.

About Red Hat

We deliver hardened solutions that make it easier for enterprises to work across platforms and environments, from the core datacenter to the network edge.

Theme

© 2025 Red Hat
