Chapter 4. Brokers

4.1. Brokers
Copy link

Brokers can be used in combination with triggers to deliver events from an event source to an event sink. Events are sent from an event source to a broker as an HTTP POST request. After events have entered the broker, they can be filtered by CloudEvent attributes using triggers, and sent as an HTTP POST request to an event sink.

Broker event delivery overview
View larger image
Broker event delivery overview

4.2. Broker types
Copy link

Cluster administrators can set the default broker implementation for a cluster. When you create a broker, the default broker implementation is used, unless you provide set configurations in the Broker object.

Knative provides a default, channel-based broker implementation. This channel-based broker can be used for development and testing purposes, but does not provide adequate event delivery guarantees for production environments. The default broker is backed by the InMemoryChannel channel implementation by default.

If you want to use Apache Kafka to reduce network hops, use the Knative broker implementation for Apache Kafka. Do not configure the channel-based broker to be backed by the KafkaChannel channel implementation.

For production-ready Knative Eventing deployments, Red Hat recommends using the Knative broker implementation for Apache Kafka. The broker is an Apache Kafka native implementation of the Knative broker, which sends CloudEvents directly to the Kafka instance.

The Knative broker has a native integration with Kafka for storing and routing events. This allows better integration with Kafka for the broker and trigger model over other broker types, and reduces network hops. Other benefits of the Knative broker implementation include:

  • At-least-once delivery guarantees
  • Ordered delivery of events, based on the CloudEvents partitioning extension
  • Control plane high availability
  • A horizontally scalable data plane

The Knative broker implementation for Apache Kafka stores incoming CloudEvents as Kafka records, using the binary content mode. This means that all CloudEvent attributes and extensions are mapped as headers on the Kafka record, while the data spec of the CloudEvent corresponds to the value of the Kafka record.

4.3. Creating brokers
Copy link

Knative provides a default, channel-based broker implementation. This channel-based broker can be used for development and testing purposes, but does not provide adequate event delivery guarantees for production environments.

If a cluster administrator has configured your OpenShift Serverless deployment to use Apache Kafka as the default broker type, creating a broker by using the default settings creates a Knative broker for Apache Kafka.

If your OpenShift Serverless deployment is not configured to use the Knative broker for Apache Kafka as the default broker type, the channel-based broker is created when you use the default settings in the following procedures.

4.3.1. Creating a broker by using the Knative CLI
Copy link

Brokers can be used in combination with triggers to deliver events from an event source to an event sink. Using the Knative (kn) CLI to create brokers provides a more streamlined and intuitive user interface over modifying YAML files directly. You can use the kn broker create command to create a broker.

Prerequisites

  • The OpenShift Serverless Operator and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • You have installed the Knative (kn) CLI.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.

Procedure

  • Create a broker:

    $ kn broker create <broker_name>
    Copy to Clipboard Toggle word wrap

Verification

  1. Use the kn command to list all existing brokers:

    $ kn broker list
    Copy to Clipboard Toggle word wrap

    Example output

    NAME      URL                                                                     AGE   CONDITIONS   READY   REASON
default   http://broker-ingress.knative-eventing.svc.cluster.local/test/default   45s   5 OK / 5     True
    Copy to Clipboard Toggle word wrap

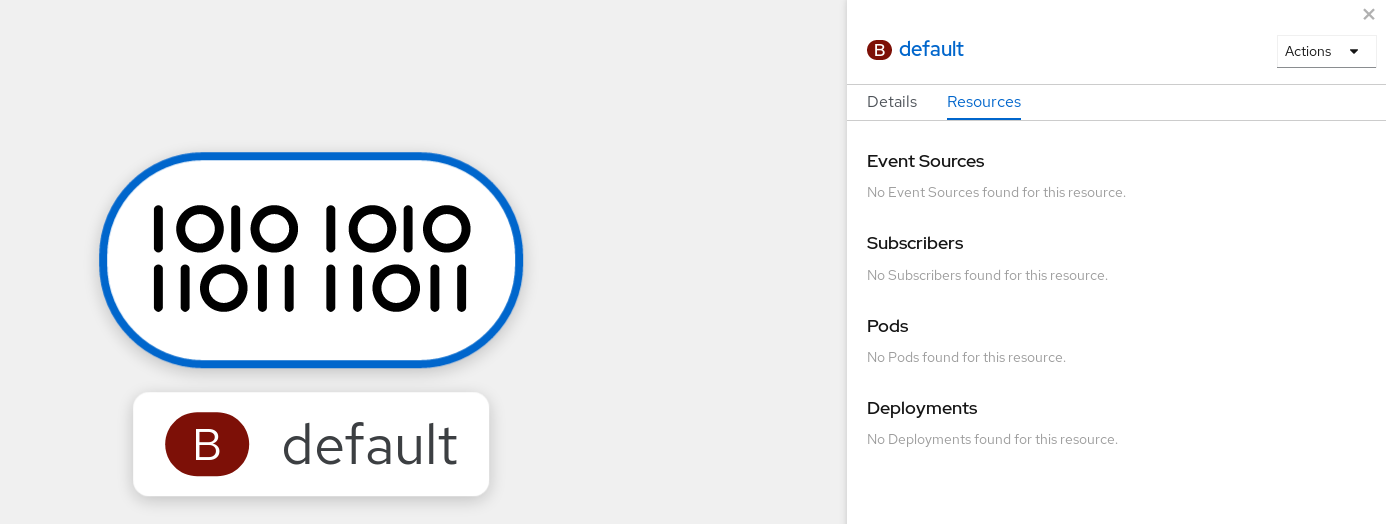

  2. Optional: If you are using the OpenShift Container Platform web console, you can navigate to the Topology view and observe that the broker exists:

    View the broker in the web console Topology view
    View larger image
    View the broker in the web console Topology view

4.3.2. Creating a broker by annotating a trigger
Copy link

Brokers can be used in combination with triggers to deliver events from an event source to an event sink. You can create a broker by adding the eventing.knative.dev/injection: enabled annotation to a Trigger object.

Important

If you create a broker by using the eventing.knative.dev/injection: enabled annotation, you cannot delete this broker without cluster administrator permissions. If you delete the broker without having a cluster administrator remove this annotation first, the broker is created again after deletion.

Prerequisites

  • The OpenShift Serverless Operator and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • Install the OpenShift CLI (oc).
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.

Procedure

  1. Create a Trigger object as a YAML file that has the eventing.knative.dev/injection: enabled annotation:

    apiVersion: eventing.knative.dev/v1
kind: Trigger
metadata:
  annotations:
    eventing.knative.dev/injection: enabled
  name: <trigger_name>
spec:
  broker: default
  subscriber:
    1

    ref:
      apiVersion: serving.knative.dev/v1
      kind: Service
      name: <service_name>
    Copy to Clipboard Toggle word wrap
    1
    Specify details about the event sink, or subscriber, that the trigger sends events to.

  2. Apply the Trigger YAML file:

    $ oc apply -f <filename>
    Copy to Clipboard Toggle word wrap

Verification

You can verify that the broker has been created successfully by using the oc CLI, or by observing it in the Topology view in the web console.

  1. Enter the following oc command to get the broker:

    $ oc -n <namespace> get broker default
    Copy to Clipboard Toggle word wrap

    Example output

    NAME      READY     REASON    URL                                                                     AGE
default   True                http://broker-ingress.knative-eventing.svc.cluster.local/test/default   3m56s
    Copy to Clipboard Toggle word wrap

  2. Optional: If you are using the OpenShift Container Platform web console, you can navigate to the Topology view and observe that the broker exists:

    View the broker in the web console Topology view
    View larger image
    View the broker in the web console Topology view

4.3.3. Creating a broker by labeling a namespace
Copy link

Brokers can be used in combination with triggers to deliver events from an event source to an event sink. You can create the default broker automatically by labelling a namespace that you own or have write permissions for.

Note

Brokers created using this method are not removed if you remove the label. You must manually delete them.

Prerequisites

  • The OpenShift Serverless Operator and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • Install the OpenShift CLI (oc).
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have cluster or dedicated administrator permissions if you are using Red Hat OpenShift Service on AWS or OpenShift Dedicated.

Procedure

  • Label a namespace with eventing.knative.dev/injection=enabled:

    $ oc label namespace <namespace> eventing.knative.dev/injection=enabled
    Copy to Clipboard Toggle word wrap

Verification

You can verify that the broker has been created successfully by using the oc CLI, or by observing it in the Topology view in the web console.

  1. Use the oc command to get the broker:

    $ oc -n <namespace> get broker <broker_name>
    Copy to Clipboard Toggle word wrap

    Example command

    $ oc -n default get broker default
    Copy to Clipboard Toggle word wrap

    Example output

    NAME      READY     REASON    URL                                                                     AGE
default   True                http://broker-ingress.knative-eventing.svc.cluster.local/test/default   3m56s
    Copy to Clipboard Toggle word wrap

  2. Optional: If you are using the OpenShift Container Platform web console, you can navigate to the Topology view and observe that the broker exists:

    View the broker in the web console Topology view
    View larger image
    View the broker in the web console Topology view

If you create a broker by injection and later want to delete it, you must delete it manually. Brokers created by using a namespace label or trigger annotation are not deleted permanently if you remove the label or annotation.

Prerequisites

  • Install the OpenShift CLI (oc).

Procedure

  1. Remove the eventing.knative.dev/injection=enabled label from the namespace:

    $ oc label namespace <namespace> eventing.knative.dev/injection-
    Copy to Clipboard Toggle word wrap

    Removing the annotation prevents Knative from recreating the broker after you delete it.

  2. Delete the broker from the selected namespace:

    $ oc -n <namespace> delete broker <broker_name>
    Copy to Clipboard Toggle word wrap

Verification

  • Use the oc command to get the broker:

    $ oc -n <namespace> get broker <broker_name>
    Copy to Clipboard Toggle word wrap

    Example command

    $ oc -n default get broker default
    Copy to Clipboard Toggle word wrap

    Example output

    No resources found.
Error from server (NotFound): brokers.eventing.knative.dev "default" not found
    Copy to Clipboard Toggle word wrap

4.3.5. Creating a broker by using the web console
Copy link

After Knative Eventing is installed on your cluster, you can create a broker by using the web console. Using the OpenShift Container Platform web console provides a streamlined and intuitive user interface to create a broker.

Prerequisites

  • You have logged in to the OpenShift Container Platform web console.
  • The OpenShift Serverless Operator, Knative Serving and Knative Eventing are installed on the cluster.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.

Procedure

  1. Navigate to +Add Broker. The Broker page is displayed.
  2. Optional. Update the Name of the broker. If you do not update the name, the generated broker is named default.
  3. Click Create.

Verification

You can verify that the broker was created by viewing broker components in the Topology page.

  1. Navigate to Topology.

  2. View the mt-broker-ingress, mt-broker-filter, and mt-broker-controller components.

    View the broker components in the Topology view
    View larger image
    View the broker components in the Topology view

4.3.6. Next steps
Copy link

If you are using a channel-based broker, you can set the default backing channel type for the broker to either InMemoryChannel or KafkaChannel.

Prerequisites

  • You have administrator permissions on OpenShift Container Platform.
  • You have installed the OpenShift Serverless Operator and Knative Eventing on your cluster.
  • You have installed the OpenShift (oc) CLI.
  • If you want to use Apache Kafka channels as the default backing channel type, you must also install the KnativeKafka CR on your cluster.

Procedure

  1. Modify the KnativeEventing custom resource (CR) to add configuration details for the config-br-default-channel config map:

    apiVersion: operator.knative.dev/v1beta1
kind: KnativeEventing
metadata:
  name: knative-eventing
  namespace: knative-eventing
spec:
  config:
    1

    config-br-default-channel:
      channel-template-spec: |
        apiVersion: messaging.knative.dev/v1beta1
        kind: KafkaChannel
    2

        spec:
          numPartitions: 6
    3

          replicationFactor: 3
    4
    Copy to Clipboard Toggle word wrap
    1
    In spec.config, you can specify the config maps that you want to add modified configurations for.
    2
    The default backing channel type configuration. In this example, the default channel implementation for the cluster is KafkaChannel.
    3
    The number of partitions for the Kafka channel that backs the broker.
    4
    The replication factor for the Kafka channel that backs the broker.

  2. Apply the updated KnativeEventing CR:

    $ oc apply -f <filename>
    Copy to Clipboard Toggle word wrap

4.5. Configuring the default broker class
Copy link

You can use the config-br-defaults config map to specify default broker class settings for Knative Eventing. You can specify the default broker class for the entire cluster or for one or more namespaces. Currently the MTChannelBasedBroker and Kafka broker types are supported.

Prerequisites

  • You have administrator permissions on OpenShift Container Platform.
  • You have installed the OpenShift Serverless Operator and Knative Eventing on your cluster.
  • If you want to use the Knative broker for Apache Kafka as the default broker implementation, you must also install the KnativeKafka CR on your cluster.

Procedure

  • Modify the KnativeEventing custom resource to add configuration details for the config-br-defaults config map:

    apiVersion: operator.knative.dev/v1beta1
kind: KnativeEventing
metadata:
  name: knative-eventing
  namespace: knative-eventing
spec:
  defaultBrokerClass: Kafka
    1

  config:
    2

    config-br-defaults:
    3

      default-br-config: |
        clusterDefault:
    4

          brokerClass: Kafka
          apiVersion: v1
          kind: ConfigMap
          name: kafka-broker-config
    5

          namespace: knative-eventing
    6

        namespaceDefaults:
    7

          my-namespace:
            brokerClass: MTChannelBasedBroker
            apiVersion: v1
            kind: ConfigMap
            name: config-br-default-channel
    8

            namespace: knative-eventing
    9

...
    Copy to Clipboard Toggle word wrap
    1
    The default broker class for Knative Eventing.
    2
    In spec.config, you can specify the config maps that you want to add modified configurations for.
    3
    The config-br-defaults config map specifies the default settings for any broker that does not specify spec.config settings or a broker class.
    4
    The cluster-wide default broker class configuration. In this example, the default broker class implementation for the cluster is Kafka.
    5
    The kafka-broker-config config map specifies default settings for the Kafka broker. See "Configuring Knative broker for Apache Kafka settings" in the "Additional resources" section.
    6
    The namespace where the kafka-broker-config config map exists.
    7
    The namespace-scoped default broker class configuration. In this example, the default broker class implementation for the my-namespace namespace is MTChannelBasedBroker. You can specify default broker class implementations for multiple namespaces.
    8
    The config-br-default-channel config map specifies the default backing channel for the broker. See "Configuring the default broker backing channel" in the "Additional resources" section.
    9
    The namespace where the config-br-default-channel config map exists.
    Important

    Configuring a namespace-specific default overrides any cluster-wide settings.

For production-ready Knative Eventing deployments, Red Hat recommends using the Knative broker implementation for Apache Kafka. The broker is an Apache Kafka native implementation of the Knative broker, which sends CloudEvents directly to the Kafka instance.

The Knative broker has a native integration with Kafka for storing and routing events. This allows better integration with Kafka for the broker and trigger model over other broker types, and reduces network hops. Other benefits of the Knative broker implementation include:

  • At-least-once delivery guarantees
  • Ordered delivery of events, based on the CloudEvents partitioning extension
  • Control plane high availability
  • A horizontally scalable data plane

The Knative broker implementation for Apache Kafka stores incoming CloudEvents as Kafka records, using the binary content mode. This means that all CloudEvent attributes and extensions are mapped as headers on the Kafka record, while the data spec of the CloudEvent corresponds to the value of the Kafka record.

If your OpenShift Serverless deployment is not configured to use Kafka broker as the default broker type, you can use one of the following procedures to create a Kafka-based broker.

Creating Knative resources by using YAML files uses a declarative API, which enables you to describe applications declaratively and in a reproducible manner. To create a Kafka broker by using YAML, you must create a YAML file that defines a Broker object, then apply it by using the oc apply command.

Prerequisites

  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka custom resource are installed on your OpenShift Container Platform cluster.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have installed the OpenShift CLI (oc).

Procedure

  1. Create a Kafka-based broker as a YAML file:

    apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  annotations:
    eventing.knative.dev/broker.class: Kafka
    1

  name: example-kafka-broker
spec:
  config:
    apiVersion: v1
    kind: ConfigMap
    name: kafka-broker-config
    2

    namespace: knative-eventing
    Copy to Clipboard Toggle word wrap
    1
    The broker class. If not specified, brokers use the default class as configured by cluster administrators. To use the Kafka broker, this value must be Kafka.
    2
    The default config map for Knative brokers for Apache Kafka. This config map is created when the Kafka broker functionality is enabled on the cluster by a cluster administrator.

  2. Apply the Kafka-based broker YAML file:

    $ oc apply -f <filename>
    Copy to Clipboard Toggle word wrap

If you want to use a Kafka broker without allowing it to create its own internal topic, you can use an externally managed Kafka topic instead. To do this, you must create a Kafka Broker object that uses the kafka.eventing.knative.dev/external.topic annotation.

Prerequisites

  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka custom resource are installed on your OpenShift Container Platform cluster.
  • You have access to a Kafka instance such as Red Hat AMQ Streams, and have created a Kafka topic.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have installed the OpenShift CLI (oc).

Procedure

  1. Create a Kafka-based broker as a YAML file:

    apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  annotations:
    eventing.knative.dev/broker.class: Kafka
    1

    kafka.eventing.knative.dev/external.topic: <topic_name>
    2

...
    Copy to Clipboard Toggle word wrap
    1
    The broker class. If not specified, brokers use the default class as configured by cluster administrators. To use the Kafka broker, this value must be Kafka.
    2
    The name of the Kafka topic that you want to use.

  2. Apply the Kafka-based broker YAML file:

    $ oc apply -f <filename>
    Copy to Clipboard Toggle word wrap
Important

The Knative Broker implementation for Apache Kafka with isolated data plane is a Technology Preview feature only. Technology Preview features are not supported with Red Hat production service level agreements (SLAs) and might not be functionally complete. Red Hat does not recommend using them in production. These features provide early access to upcoming product features, enabling customers to test functionality and provide feedback during the development process.

For more information about the support scope of Red Hat Technology Preview features, see Technology Preview Features Support Scope.

The Knative Broker implementation for Apache Kafka has 2 planes:

Control plane
Consists of controllers that talk to the Kubernetes API, watch for custom objects, and manage the data plane.
Data plane
The collection of components that listen for incoming events, talk to Apache Kafka, and send events to the event sinks. The Knative Broker implementation for Apache Kafka data plane is where events flow. The implementation consists of kafka-broker-receiver and kafka-broker-dispatcher deployments.

When you configure a Broker class of Kafka, the Knative Broker implementation for Apache Kafka uses a shared data plane. This means that the kafka-broker-receiver and kafka-broker-dispatcher deployments in the knative-eventing namespace are used for all Apache Kafka Brokers in the cluster.

However, when you configure a Broker class of KafkaNamespaced, the Apache Kafka broker controller creates a new data plane for each namespace where a broker exists. This data plane is used by all KafkaNamespaced brokers in that namespace. This provides isolation between the data planes, so that the kafka-broker-receiver and kafka-broker-dispatcher deployments in the user namespace are only used for the broker in that namespace.

Important

As a consequence of having separate data planes, this security feature creates more deployments and uses more resources. Unless you have such isolation requirements, use a regular Broker with a class of Kafka.

Important

The Knative Broker implementation for Apache Kafka with isolated data plane is a Technology Preview feature only. Technology Preview features are not supported with Red Hat production service level agreements (SLAs) and might not be functionally complete. Red Hat does not recommend using them in production. These features provide early access to upcoming product features, enabling customers to test functionality and provide feedback during the development process.

For more information about the support scope of Red Hat Technology Preview features, see Technology Preview Features Support Scope.

To create a KafkaNamespaced broker, you must set the eventing.knative.dev/broker.class annotation to KafkaNamespaced.

Prerequisites

  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka custom resource are installed on your OpenShift Container Platform cluster.
  • You have access to an Apache Kafka instance, such as Red Hat AMQ Streams, and have created a Kafka topic.
  • You have created a project, or have access to a project, with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have installed the OpenShift CLI (oc).

Procedure

  1. Create an Apache Kafka-based broker by using a YAML file:

    apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  annotations:
    eventing.knative.dev/broker.class: KafkaNamespaced
    1

  name: default
  namespace: my-namespace
    2

spec:
  config:
    apiVersion: v1
    kind: ConfigMap
    name: my-config
    3

...
    Copy to Clipboard Toggle word wrap
    1
    To use the Apache Kafka broker with isolated data planes, the broker class value must be KafkaNamespaced.
    2 3
    The referenced ConfigMap object my-config must be in the same namespace as the Broker object, in this case my-namespace.

  2. Apply the Apache Kafka-based broker YAML file:

    $ oc apply -f <filename>
    Copy to Clipboard Toggle word wrap
Important

The ConfigMap object in spec.config must be in the same namespace as the Broker object:

apiVersion: v1
kind: ConfigMap
metadata:
  name: my-config
  namespace: my-namespace
data:
  ...
Copy to Clipboard Toggle word wrap

After the creation of the first Broker object with the KafkaNamespaced class, the kafka-broker-receiver and kafka-broker-dispatcher deployments are created in the namespace. Subsequently, all brokers with the KafkaNamespaced class in the same namespace will use the same data plane. If no brokers with the KafkaNamespaced class exist in the namespace, the data plane in the namespace is deleted.

4.6.2. Configuring Apache Kafka broker settings
Copy link

You can configure the replication factor, bootstrap servers, and the number of topic partitions for a Kafka broker, by creating a config map and referencing this config map in the Kafka Broker object.

Knative Eventing supports the full set of topic config options that Kafka supports. To set these options, you must add a key to the ConfigMap with the default.topic.config. prefix.

Prerequisites

  • You have cluster or dedicated administrator permissions on OpenShift Container Platform.
  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka custom resource (CR) are installed on your OpenShift Container Platform cluster.
  • You have created a project or have access to a project that has the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have installed the OpenShift CLI (oc).

Procedure

  1. Modify the kafka-broker-config config map, or create your own config map that contains the following configuration:

    apiVersion: v1
kind: ConfigMap
metadata:
  name: <config_map_name>
    1

  namespace: <namespace>
    2

data:
  default.topic.partitions: <integer>
    3

  default.topic.replication.factor: <integer>
    4

  bootstrap.servers: <list_of_servers>
    5

  default.topic.config.<config_option>: <value>
    6
    Copy to Clipboard Toggle word wrap
    1
    The config map name.
    2
    The namespace where the config map exists.
    3
    The number of topic partitions for the Kafka broker. This controls how quickly events can be sent to the broker. A higher number of partitions requires greater compute resources.
    4
    The replication factor of topic messages. This prevents against data loss. A higher replication factor requires greater compute resources and more storage.
    5
    A comma separated list of bootstrap servers. This can be inside or outside of the OpenShift Container Platform cluster, and is a list of Kafka clusters that the broker receives events from and sends events to.
    6
    A topic config option. For more information, see the full set of possible options and values.
    Important

    The default.topic.replication.factor value must be less than or equal to the number of Kafka broker instances in your cluster. For example, if you only have one Kafka broker, the default.topic.replication.factor value should not be more than "1".

    Example Kafka broker config map

    apiVersion: v1
kind: ConfigMap
metadata:
  name: kafka-broker-config
  namespace: knative-eventing
data:
  default.topic.partitions: "10"
  default.topic.replication.factor: "3"
  bootstrap.servers: "my-cluster-kafka-bootstrap.kafka:9092"
  default.topic.config.retention.ms: "3600"
    Copy to Clipboard Toggle word wrap

  2. Apply the config map:

    $ oc apply -f <config_map_filename>
    Copy to Clipboard Toggle word wrap

  3. Specify the config map for the Kafka Broker object:

    Example Broker object

    apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  name: <broker_name>
    1

  namespace: <namespace>
    2

  annotations:
    eventing.knative.dev/broker.class: Kafka
    3

spec:
  config:
    apiVersion: v1
    kind: ConfigMap
    name: <config_map_name>
    4

    namespace: <namespace>
    5

...
    Copy to Clipboard Toggle word wrap

    1
    The broker name.
    2
    The namespace where the broker exists.
    3
    The broker class annotation. In this example, the broker is a Kafka broker that uses the class value Kafka.
    4
    The config map name.
    5
    The namespace where the config map exists.

  4. Apply the broker:

    $ oc apply -f <broker_filename>
    Copy to Clipboard Toggle word wrap

Kafka clusters are generally secured by using the TLS or SASL authentication methods. You can configure a Kafka broker or channel to work against a protected Red Hat AMQ Streams cluster by using TLS or SASL.

Note

Red Hat recommends that you enable both SASL and TLS together.

Transport Layer Security (TLS) is used by Apache Kafka clients and servers to encrypt traffic between Knative and Kafka, as well as for authentication. TLS is the only supported method of traffic encryption for the Knative broker implementation for Apache Kafka.

Prerequisites

  • You have cluster or dedicated administrator permissions on OpenShift Container Platform.
  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka CR are installed on your OpenShift Container Platform cluster.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have a Kafka cluster CA certificate stored as a .pem file.
  • You have a Kafka cluster client certificate and a key stored as .pem files.
  • Install the OpenShift CLI (oc).

Procedure

  1. Create the certificate files as a secret in the knative-eventing namespace:

    $ oc create secret -n knative-eventing generic <secret_name> \
  --from-literal=protocol=SSL \
  --from-file=ca.crt=caroot.pem \
  --from-file=user.crt=certificate.pem \
  --from-file=user.key=key.pem
    Copy to Clipboard Toggle word wrap
    Important

    Use the key names ca.crt, user.crt, and user.key. Do not change them.

  2. Edit the KnativeKafka CR and add a reference to your secret in the broker spec:

    apiVersion: operator.serverless.openshift.io/v1alpha1
kind: KnativeKafka
metadata:
  namespace: knative-eventing
  name: knative-kafka
spec:
  broker:
    enabled: true
    defaultConfig:
      authSecretName: <secret_name>
...
    Copy to Clipboard Toggle word wrap

Simple Authentication and Security Layer (SASL) is used by Apache Kafka for authentication. If you use SASL authentication on your cluster, users must provide credentials to Knative for communicating with the Kafka cluster; otherwise events cannot be produced or consumed.

Prerequisites

  • You have cluster or dedicated administrator permissions on OpenShift Container Platform.
  • The OpenShift Serverless Operator, Knative Eventing, and the KnativeKafka CR are installed on your OpenShift Container Platform cluster.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have a username and password for a Kafka cluster.
  • You have chosen the SASL mechanism to use, for example, PLAIN, SCRAM-SHA-256, or SCRAM-SHA-512.
  • If TLS is enabled, you also need the ca.crt certificate file for the Kafka cluster.
  • Install the OpenShift CLI (oc).

Procedure

  1. Create the certificate files as a secret in the knative-eventing namespace:

    $ oc create secret -n knative-eventing generic <secret_name> \
  --from-literal=protocol=SASL_SSL \
  --from-literal=sasl.mechanism=<sasl_mechanism> \
  --from-file=ca.crt=caroot.pem \
  --from-literal=password="SecretPassword" \
  --from-literal=user="my-sasl-user"
    Copy to Clipboard Toggle word wrap

    • Use the key names protocol, sasl.mechanism, ca.crt, password, and user. Do not change them.

      Note

      The ca.crt key is optional if the Kafka cluster uses a certificate signed by a public CA whose certificate is already in the system truststore.

  2. Edit the KnativeKafka CR and add a reference to your secret in the broker spec:

    apiVersion: operator.serverless.openshift.io/v1alpha1
kind: KnativeKafka
metadata:
  namespace: knative-eventing
  name: knative-kafka
spec:
  broker:
    enabled: true
    defaultConfig:
      authSecretName: <secret_name>
...
    Copy to Clipboard Toggle word wrap

4.7. Managing brokers
Copy link

After you have created a broker, you can manage your broker by using Knative (kn) CLI commands, or by modifying it in the OpenShift Container Platform web console.

4.7.1. Managing brokers using the CLI
Copy link

The Knative (kn) CLI provides commands that can be used to describe and list existing brokers.

Using the Knative (kn) CLI to list brokers provides a streamlined and intuitive user interface. You can use the kn broker list command to list existing brokers in your cluster by using the Knative CLI.

Prerequisites

  • The OpenShift Serverless Operator and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • You have installed the Knative (kn) CLI.

Procedure

  • List all existing brokers:

    $ kn broker list
    Copy to Clipboard Toggle word wrap

    Example output

    NAME      URL                                                                     AGE   CONDITIONS   READY   REASON
default   http://broker-ingress.knative-eventing.svc.cluster.local/test/default   45s   5 OK / 5     True
    Copy to Clipboard Toggle word wrap

Using the Knative (kn) CLI to describe brokers provides a streamlined and intuitive user interface. You can use the kn broker describe command to print information about existing brokers in your cluster by using the Knative CLI.

Prerequisites

  • The OpenShift Serverless Operator and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • You have installed the Knative (kn) CLI.

Procedure

  • Describe an existing broker:

    $ kn broker describe <broker_name>
    Copy to Clipboard Toggle word wrap

    Example command using default broker

    $ kn broker describe default
    Copy to Clipboard Toggle word wrap

    Example output

    Name:         default
Namespace:    default
Annotations:  eventing.knative.dev/broker.class=MTChannelBasedBroker, eventing.knative.dev/creato ...
Age:          22s

Address:
  URL:    http://broker-ingress.knative-eventing.svc.cluster.local/default/default

Conditions:
  OK TYPE                   AGE REASON
  ++ Ready                  22s
  ++ Addressable            22s
  ++ FilterReady            22s
  ++ IngressReady           22s
  ++ TriggerChannelReady    22s
    Copy to Clipboard Toggle word wrap

4.7.2. Connect a broker to a sink
Copy link

You can connect a broker to an event sink in the OpenShift Container Platform web console by creating a trigger.

Prerequisites

  • The OpenShift Serverless Operator, Knative Serving, and Knative Eventing are installed on your OpenShift Container Platform cluster.
  • You have logged in to the web console.
  • You have created a project or have access to a project with the appropriate roles and permissions to create applications and other workloads in OpenShift Container Platform.
  • You have created a sink, such as a Knative service or channel.
  • You have created a broker.

Procedure

  1. In the Topology view, point to the broker that you have created. An arrow appears. Drag the arrow to the sink that you want to connect to the broker. This action opens the Add Trigger dialog box.
  2. In the Add Trigger dialog box, enter a name for the trigger and click Add.

Verification

You can verify that the broker is connected to the sink by viewing the Topology page.

  1. Navigate to Topology.
  2. Click the line that connects the broker to the sink to see details about the trigger in the Details panel.
Back to top
Red Hat logoGithubredditYoutubeTwitter

Learn

Try, buy, & sell

Communities

About Red Hat Documentation

We help Red Hat users innovate and achieve their goals with our products and services with content they can trust. Explore our recent updates.

Making open source more inclusive

Red Hat is committed to replacing problematic language in our code, documentation, and web properties. For more details, see the Red Hat Blog.

About Red Hat

We deliver hardened solutions that make it easier for enterprises to work across platforms and environments, from the core datacenter to the network edge.

Theme

© 2025 Red Hat
