红帽全球峰会第 1 章 Red Hat Advanced Cluster Security for Kubernetes 架构
发现 Red Hat Advanced Cluster Security for Kubernetes 架构和概念。
Red Hat Advanced Cluster Security for Kubernetes (RHACS) 使用分布式架构，它支持大规模部署，并进行了优化，以最大程度降低对底层 OpenShift Container Platform 或 Kubernetes 节点的影响。

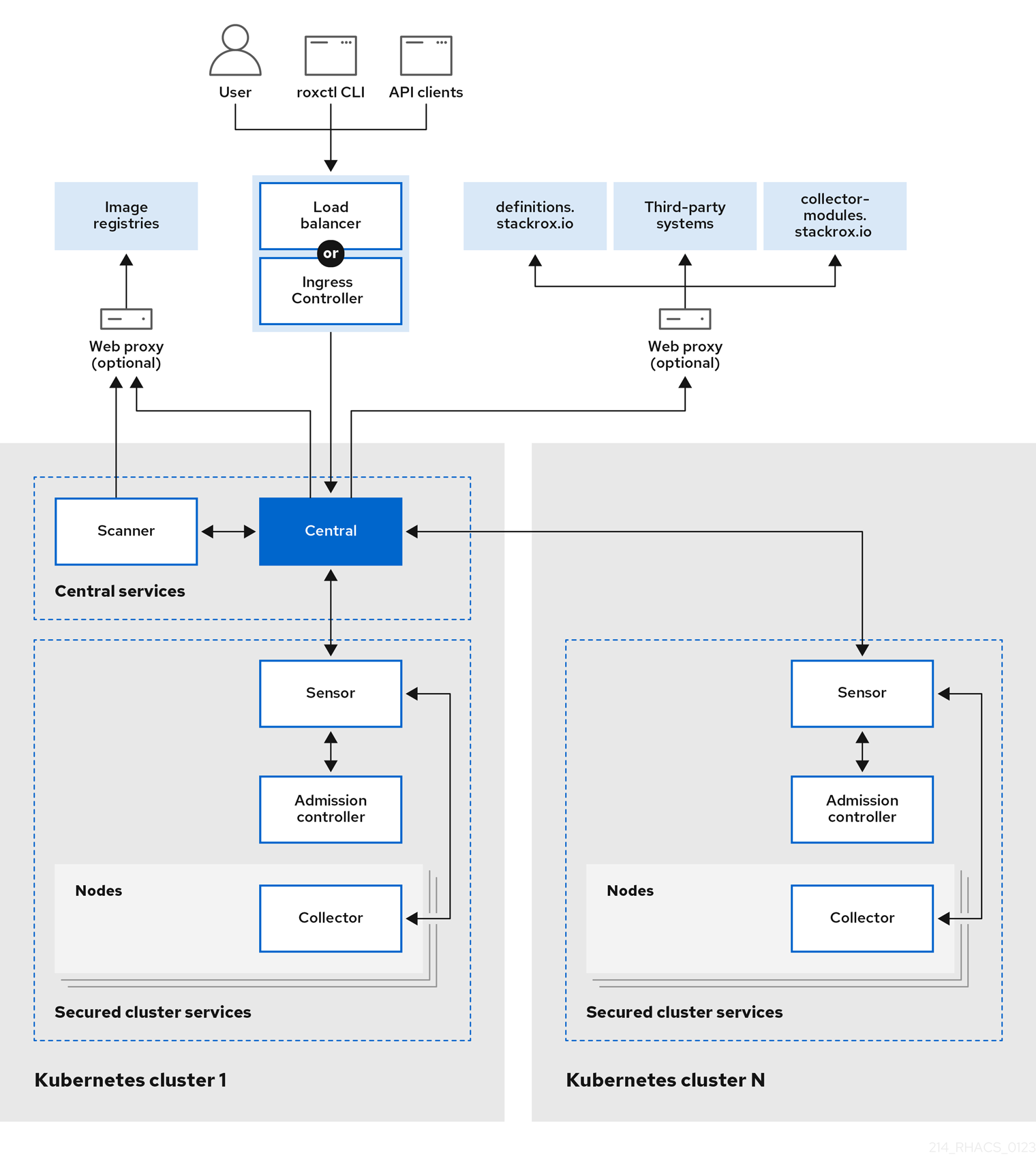

图 1.1. Red Hat Advanced Cluster Security for Kubernetes 架构
注意
当您在 Kubernetes 和 OpenShift Container Platform 上安装 RHACS 时，架构略有不同。但是，底层组件及其之间的交互保持不变。
您可以将 RHACS 作为 OpenShift Container Platform 或 Kubernetes 集群中的一组容器安装。RHACS 包括：
- 您在一个集群中安装的核心服务。
- 在您要由 RHACS 保护的每个集群中安装的安全集群服务。
除了这些主要服务外，RHACS 也与其他外部组件交互，以增强集群的安全性。
