2.6.3. OVS-DPDK Too Slow to Drain vhost-user
在本例中,MonyD 线程是从主机角度轮询 virtio TX 的接收队列。如果 PMD 线程被数据包卷超过,或者中断,数据包可能会丢弃。

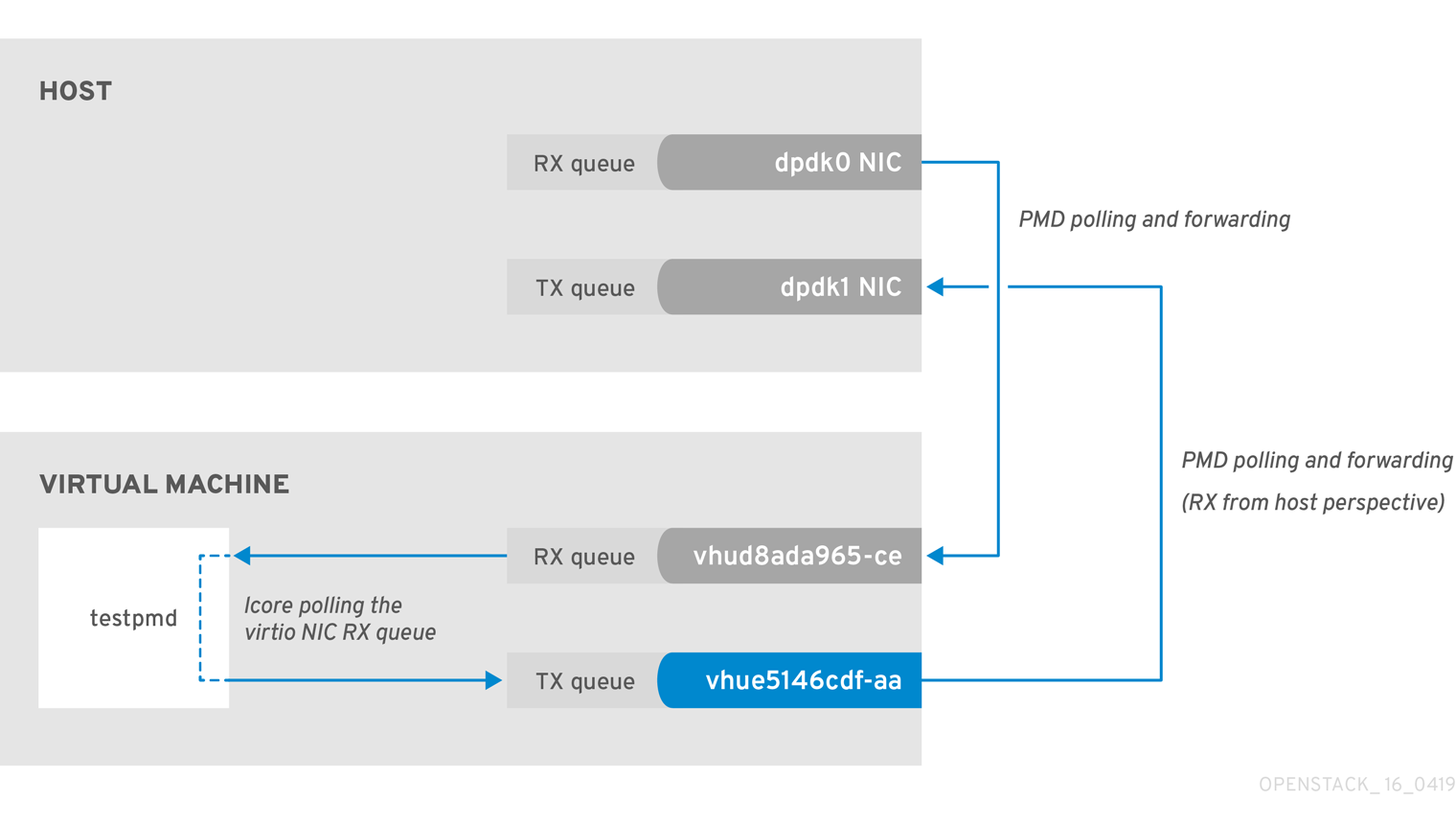

图 2.3. 轮询虚拟适配器 TX 队列
					跟踪来自虚拟机的数据包的返回路径,并提供主机上的丢弃计数器(tx_dropped)和 VM(rx_dropped)端值,运行以下命令:

ovs-vsctl --column statistics list interface vhue5146cdf-aa
statistics          : {"rx_1024_to_1522_packets"=0, "rx_128_to_255_packets"=0, "rx_1523_to_max_packets"=0,
"rx_1_to_64_packets"=0, "rx_256_to_511_packets"=0, "rx_512_to_1023_packets"=0, "rx_65_to_127_packets"=0,
rx_bytes=0, rx_dropped=0, rx_errors=0, rx_packets=0, tx_bytes=0, tx_dropped=0, tx_packets=0}
ovs-vsctl --column statistics list interface vhue5146cdf-aa
statistics          : {"rx_1024_to_1522_packets"=0, "rx_128_to_255_packets"=0, "rx_1523_to_max_packets"=0,
"rx_1_to_64_packets"=0, "rx_256_to_511_packets"=0, "rx_512_to_1023_packets"=0, "rx_65_to_127_packets"=0,
rx_bytes=0, rx_dropped=0, rx_errors=0, rx_packets=0, tx_bytes=0, tx_dropped=0, tx_packets=0}
