2.2. Enabling metrics monitoring in a Helm chart installation on an OpenShift Container Platform cluster

Procedure

1. From the Developer perspective in the OpenShift Container Platform web console, select the Topology view.

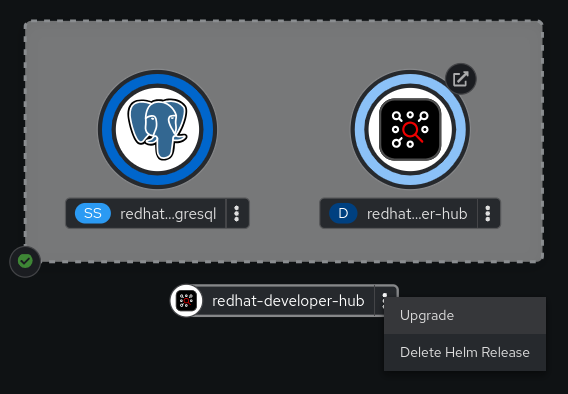

2. Click the overflow menu of the Red Hat Developer Hub Helm chart, and select Upgrade.



3. On the Upgrade Helm Release page, select the YAML view option in Configure via, then configure the metrics section in the YAML, as shown in the following example:

   upstream:
   # ...
     metrics:
       serviceMonitor:
         enabled: true
         path: /metrics
         port: http-metrics
   # ...


4. Click Upgrade.

Verification

1. From the Developer perspective in the OpenShift Container Platform web console, select the Observe view.
2. Click the Metrics tab to view metrics for Red Hat Developer Hub pods.
