Red Hat Summit1.8. Setting up replication between two servers using the Web UI
Using the Identity Management (IdM) Web UI, you can choose two servers and create a new replication agreement between them.
Prerequisites
- You are logged in as an IdM administrator.
Procedure
In the topology graph, hover your mouse over one of the server nodes.

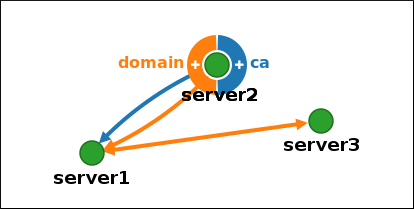

Domain or CA options
-
Click on the
domainor thecapart of the circle depending on what type of topology segment you want to create. A new arrow representing the new replication agreement appears under your mouse pointer. Move your mouse to the other server node, and click on it.
Creating a new segment
In the
Add topology segmentwindow, click to confirm the properties of the new segment.The new topology segment between the two servers joins them in a replication agreement. The topology graph now shows the updated replication topology:
New segment created
