红帽全球峰会5.4. 附加文档架构文件
如果任何 Source Body、Target Body 和/或 Parameter (s) 是结构化数据，您可以附加一个架构文件并在树形视图中视觉化数据结构。
注意
如果数据不是结构化的，而只是一个原语值，则不需要附加一个模式文件。
按照以下步骤附加一个 schema 文件：
- 将架构文件放在工作区目录中。
单击
Source Body、Target Body或Parameters部分中的Attach a schema按钮。
选择要附加的 schema 文件

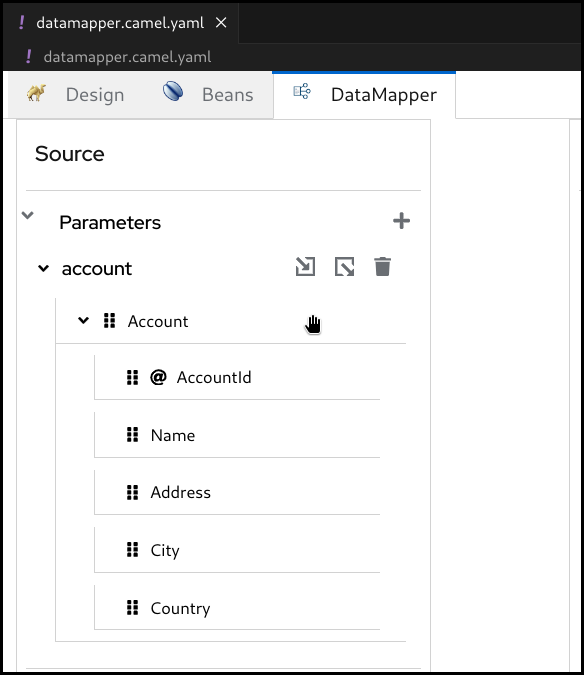

现在，文档结构呈现在一个树中。
