第 28 章 Restricting an application to trust only a subset of certificates

If your Identity Management (IdM) installation is configured with the integrated Certificate System (CS) certificate authority (CA), you are able to create lightweight sub-CAs. All sub-CAs you create are subordinated to the primary CA of the certificate system, the ipa CA.

A lightweight sub-CA in this context means a sub-CA issuing certificates for a specific purpose. For example, a lightweight sub-CA enables you to configure a service, such as a virtual private network (VPN) gateway and a web browser, to accept only certificates issued by sub-CA A. By configuring other services to accept certificates only issued by sub-CA B, you prevent them from accepting certificates issued by sub-CA A, the primary CA, that is the ipa CA, and any intermediate sub-CA between the two.

If you revoke the intermediate certificate of a sub-CA, all certificates issued by this sub-CA are automatically considered invalid by correctly configured clients. All the other certificates issued directly by the root CA, ipa, or another sub-CA, remain valid.

This section uses the example of the Apache web server to illustrate how to restrict an application to trust only a subset of certificates. Complete this section to restrict the web server running on your IdM client to use a certificate issued by the webserver-ca IdM sub-CA, and to require the users to authenticate to the web server using user certificates issued by the webclient-ca IdM sub-CA.

The steps you need to take are:

  1. Create an IdM sub-CA
  2. Download the sub-CA certificate from IdM WebUI
  3. Create a CA ACL specifying the correct combination of users, services and CAs, and the certificate profile used
  4. Request a certificate for the web service running on an IdM client from the IdM sub-CA
  5. Set up a single-instance Apache HTTP Server
  6. Add TLS encryption to the Apache HTTP Server
  7. Set the supported TLS protocol versions on an Apache HTTP Server
  8. Set the supported ciphers on the Apache HTTP Server
  9. Configure TLS client certificate authentication on the web server
  10. Request a certificate for the user from the IdM sub-CA and export it to the client
  11. Import the user certificate into the browser and configure the browser to trust the sub-CA certificate

28.1. Managing lightweight sub-CAs
复制链接

This section describes how to manage lightweight subordinate certificate authorities (sub-CAs). All sub-CAs you create are subordinated to the primary CA of the certificate system, the ipa CA. You can also disable and delete sub-CAs.

注意
  • If you delete a sub-CA, revocation checking for that sub-CA will no longer work. Only delete a sub-CA when there are no more certificates that were issued by that sub-CA whose notAfter expiration time is in the future.
  • You should only disable sub-CAs while there are still non-expired certificates that were issued by that sub-CA. If all certificates that were issued by a sub-CA have expired, you can delete that sub-CA.
  • You cannot disable or delete the IdM CA.

28.1.1. Creating a sub-CA from the IdM WebUI
复制链接

Follow this procedure to use the IdM WebUI to create new sub-CAs named webserver-ca and webclient-ca.

Prerequisites

  • You are logged in as the administrator.

Procedure

  1. In the Authentication menu, click Certificates.
  2. Select Certificate Authorities and click Add.
  3. Enter the name of the webserver-ca sub-CA. Enter the Subject DN, for example CN=WEBSERVER,O=IDM.EXAMPLE.COM, in the Subject DN field. Note that the Subject DN must be unique in the IdM CA infrastructure.
  4. Enter the name of the webclient-ca sub-CA. Enter the Subject DN CN=WEBCLIENT,O=IDM.EXAMPLE.COM in the Subject DN field.

  5. On the command line, run the ipa-certupdate command to create a certmonger tracking request for the webserver-ca and webclient-ca sub-CA certificates:

    [root@ipaserver ~]# ipa-certupdate
    重要

    Forgetting to run the ipa-certupdate command after creating a sub-CA means that if the sub-CA certificate expires, end-entity certificates issued by the sub-CA are considered invalid even if the end-entity certificate has not expired.

Verification

  • Verify that the signing certificate of the new sub-CA has been added to the IdM database:

    [root@ipaserver ~]# certutil -d /etc/pki/pki-tomcat/alias/ -L

Certificate Nickname                      Trust Attributes
                                          SSL,S/MIME,JAR/XPI

caSigningCert cert-pki-ca                 CTu,Cu,Cu
Server-Cert cert-pki-ca                   u,u,u
auditSigningCert cert-pki-ca              u,u,Pu
caSigningCert cert-pki-ca ba83f324-5e50-4114-b109-acca05d6f1dc u,u,u
ocspSigningCert cert-pki-ca               u,u,u
subsystemCert cert-pki-ca                 u,u,u
    注意

    The new sub-CA certificate is automatically transferred to all the replicas that have a certificate system instance installed.

28.1.2. Deleting a sub-CA from the IdM WebUI
复制链接

Follow this procedure to delete lightweight sub-CAs in the IdM WebUI.

注意
  • If you delete a sub-CA, revocation checking for that sub-CA will no longer work. Only delete a sub-CA when there are no more certificates that were issued by that sub-CA whose notAfter expiration time is in the future.
  • You should only disable sub-CAs while there are still non-expired certificates that were issued by that sub-CA. If all certificates that were issued by a sub-CA have expired, you can delete that sub-CA.
  • You cannot disable or delete the IdM CA.

Prerequisites

Procedure

  1. In the IdM WebUI, open the Authentication tab, and select the Certificates subtab.
  2. Select Certificate Authorities.

  3. Select the sub-CA to remove and click Delete.

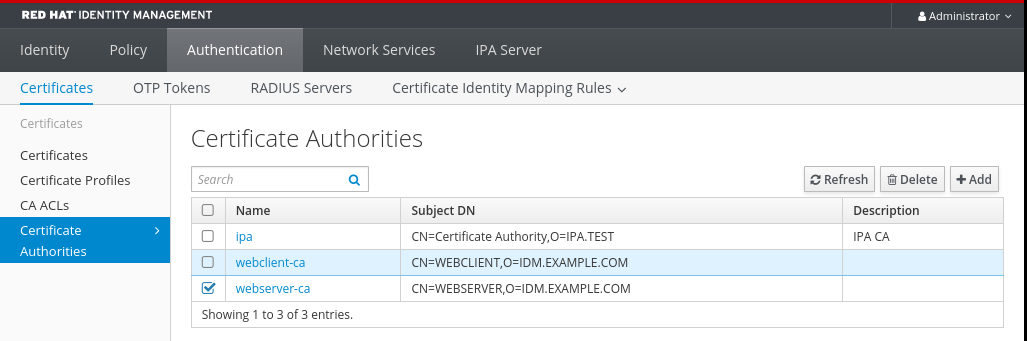

    图 28.1. Deleting a sub-CA in the IdM Web UI

    Screenshot of the
  4. Click Delete to confirm.

28.1.3. Creating a sub-CA from the IdM CLI
复制链接

Follow this procedure to use the IdM CLI to create new sub-CAs named webserver-ca and webclient-ca.

Prerequisites

  • You are logged in as the administrator to an IdM server that is a CA server.

Procedure

  1. Enter the ipa ca-add command, and specify the name of the webserver-ca sub-CA and its Subject Distinguished Name (DN):

    [root@ipaserver ~]# ipa ca-add webserver-ca --subject="CN=WEBSERVER,O=IDM.EXAMPLE.COM"
-------------------
Created CA "webserver-ca"
-------------------
  Name: webserver-ca
  Authority ID: ba83f324-5e50-4114-b109-acca05d6f1dc
  Subject DN: CN=WEBSERVER,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IDM.EXAMPLE.COM
    Name
    Name of the CA.
    Authority ID
    Automatically created, individual ID for the CA.
    Subject DN
    Subject Distinguished Name (DN). The Subject DN must be unique in the IdM CA infrastructure.
    Issuer DN
    Parent CA that issued the sub-CA certificate. All sub-CAs are created as a child of the IdM root CA.

  2. Create the webclient-ca sub-CA for issuing certificates to web clients:

    [root@ipaserver ~]# ipa ca-add webclient-ca --subject="CN=WEBCLIENT,O=IDM.EXAMPLE.COM"
-------------------
Created CA "webclient-ca"
-------------------
  Name: webclient-ca
  Authority ID: 8a479f3a-0454-4a4d-8ade-fd3b5a54ab2e
  Subject DN: CN=WEBCLIENT,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IDM.EXAMPLE.COM

  3. Run the ipa-certupdate command to create a certmonger tracking request for the webserver-ca and webclient-ca sub-CAs certificates:

    [root@ipaserver ~]# ipa-certupdate
    重要

    If you forget to run the ipa-certupdate command after creating a sub-CA and the sub-CA certificate expires, end-entity certificates issued by that sub-CA are considered invalid even though the end-entity certificate has not expired.

Verification

  • Verify that the signing certificate of the new sub-CA has been added to the IdM database:

    [root@ipaserver ~]# certutil -d /etc/pki/pki-tomcat/alias/ -L

Certificate Nickname                      Trust Attributes
                                          SSL,S/MIME,JAR/XPI

caSigningCert cert-pki-ca                 CTu,Cu,Cu
Server-Cert cert-pki-ca                   u,u,u
auditSigningCert cert-pki-ca              u,u,Pu
caSigningCert cert-pki-ca ba83f324-5e50-4114-b109-acca05d6f1dc u,u,u
ocspSigningCert cert-pki-ca               u,u,u
subsystemCert cert-pki-ca                 u,u,u
    注意

    The new sub-CA certificate is automatically transferred to all the replicas that have a certificate system instance installed.

28.1.4. Disabling a sub-CA from the IdM CLI
复制链接

Follow this procedure to disable a sub-CA from the IdM CLI. If there are still non-expired certificates that were issued by a sub-CA, you should not delete it but you can disable it. If you delete the sub-CA, revocation checking for that sub-CA will no longer work.

Prerequisites

  • You are logged in as the administrator.

Procedure

  1. Run the ipa ca-find command to determine the name of the sub-CA you are deleting:

    [root@ipaserver ~]# ipa ca-find
-------------
3 CAs matched
-------------
  Name: ipa
  Description: IPA CA
  Authority ID: 5195deaf-3b61-4aab-b608-317aff38497c
  Subject DN: CN=Certificate Authority,O=IPA.TEST
  Issuer DN: CN=Certificate Authority,O=IPA.TEST

  Name: webclient-ca
  Authority ID: 605a472c-9c6e-425e-b959-f1955209b092
  Subject DN: CN=WEBCLIENT,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IPA.TEST

 Name: webserver-ca
  Authority ID: 02d537f9-c178-4433-98ea-53aa92126fc3
  Subject DN: CN=WEBSERVER,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IPA.TEST
----------------------------
Number of entries returned 3
----------------------------

  2. Run the ipa ca-disable command to disable your sub-CA, in this example, the webserver-ca:

    ipa ca-disable webserver-ca
--------------------------
Disabled CA "webserver-ca"
--------------------------

28.1.5. Deleting a sub-CA from the IdM CLI
复制链接

Follow this procedure to delete lightweight sub-CAs from the IdM CLI.

注意
  • If you delete a sub-CA, revocation checking for that sub-CA will no longer work. Only delete a sub-CA when there are no more certificates that were issued by that sub-CA whose notAfter expiration time is in the future.
  • You should only disable sub-CAs while there are still non-expired certificates that were issued by that sub-CA. If all certificates that were issued by a sub-CA have expired, you can delete that sub-CA.
  • You cannot disable or delete the IdM CA.

Prerequisites

  • You are logged in as the administrator.

Procedure

  1. To display a list of sub-CAs and CAs, run the ipa ca-find command:

    # ipa ca-find
-------------
3 CAs matched
-------------
  Name: ipa
  Description: IPA CA
  Authority ID: 5195deaf-3b61-4aab-b608-317aff38497c
  Subject DN: CN=Certificate Authority,O=IPA.TEST
  Issuer DN: CN=Certificate Authority,O=IPA.TEST

  Name: webclient-ca
  Authority ID: 605a472c-9c6e-425e-b959-f1955209b092
  Subject DN: CN=WEBCLIENT,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IPA.TEST

 Name: webserver-ca
  Authority ID: 02d537f9-c178-4433-98ea-53aa92126fc3
  Subject DN: CN=WEBSERVER,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IPA.TEST
----------------------------
Number of entries returned 3
----------------------------

  2. Run the ipa ca-disable command to disable your sub-CA, in this example, the webserver-ca:

    # ipa ca-disable webserver-ca
--------------------------
Disabled CA "webserver-ca"
--------------------------

  3. Delete the sub-CA, in this example, the webserver-ca:

    # ipa ca-del webserver-ca
-------------------------
Deleted CA "webserver-ca"
-------------------------

Verification

  • Run ipa ca-find to display the list of CAs and sub-CAs. The webserver-ca is no longer on the list.

    # ipa ca-find
-------------
2 CAs matched
-------------
  Name: ipa
  Description: IPA CA
  Authority ID: 5195deaf-3b61-4aab-b608-317aff38497c
  Subject DN: CN=Certificate Authority,O=IPA.TEST
  Issuer DN: CN=Certificate Authority,O=IPA.TEST

  Name: webclient-ca
  Authority ID: 605a472c-9c6e-425e-b959-f1955209b092
  Subject DN: CN=WEBCLIENT,O=IDM.EXAMPLE.COM
  Issuer DN: CN=Certificate Authority,O=IPA.TEST
----------------------------
Number of entries returned 2
----------------------------
