Learning about ROSA

Red Hat OpenShift Service on AWS 4

Learning about Red Hat OpenShift Service on AWS

Red Hat OpenShift Documentation Team

Legal Notice

Abstract

This document includes workshops on creating a cluster and deploying an application.

Chapter 1. Creating a cluster workshop
Copia collegamento

1.1. Creating a cluster
Copia collegamento

Follow this workshop to deploy a sample Red Hat OpenShift Service on AWS (ROSA) cluster. You can then use your cluster in the next workshops.

Workshop objectives

Learn to create your cluster prerequisites:
- Create a sample virtual private cloud (VPC)
- Create sample OpenID Connect (OIDC) resources
Create sample environment variables
Deploy a sample ROSA cluster

Prerequisites

ROSA version 1.2.31 or later
Amazon Web Service (AWS) command-line interface (CLI)
ROSA CLI (rosa)

1.1.1. Creating your cluster prerequisites
Copia collegamento

Before deploying a ROSA cluster, you must have both a VPC and OIDC resources. We will create these resources first. ROSA uses the bring your own VPC (BYO-VPC) model.

1.1.1.1. Creating a VPC
Copia collegamento

Make sure your AWS CLI (aws) is configured to use a region where ROSA is available. See the regions supported by the AWS CLI by running the following command:
```
rosa list regions --hosted-cp
```
```
$ rosa list regions --hosted-cp
```
Copy to Clipboard Toggle word wrap

Create the VPC. For this workshop, the following script creates the VPC and its required components. It uses the region configured in your aws CLI.

This script will create the network requirements for a ROSA cluster. This will be
a public cluster. This creates:
- VPC
- Public and private subnets
- Internet Gateway
- Relevant route tables
- NAT Gateway
This will automatically use the region configured for the aws cli
Create VPC
Create tag name
Enable dns hostname
Create Public Subnet
Create private subnet
Create an internet gateway for outbound traffic and attach it to the VPC.
Create a route table for outbound traffic and associate it to the public subnet.
Create a NAT gateway in the public subnet for outgoing traffic from the private network.
Create a route table for the private subnet to the NAT gateway.
echo "***********VARIABLE VALUES*********"
echo "VPC_ID="$VPC_ID
echo "PUBLIC_SUBNET_ID="$PUBLIC_SUBNET_ID
echo "PRIVATE_SUBNET_ID="$PRIVATE_SUBNET_ID
echo "PUBLIC_ROUTE_TABLE_ID="$PUBLIC_ROUTE_TABLE_ID
echo "PRIVATE_ROUTE_TABLE_ID="$PRIVATE_ROUTE_TABLE_ID
echo "NAT_GATEWAY_ID="$NAT_GATEWAY_ID
echo "IGW_ID="$IGW_ID
echo "NAT_IP_ADDRESS="$NAT_IP_ADDRESS

#!/bin/bash

set -e
##########
# This script will create the network requirements for a ROSA cluster. This will be
# a public cluster. This creates:
# - VPC
# - Public and private subnets
# - Internet Gateway
# - Relevant route tables
# - NAT Gateway
#
# This will automatically use the region configured for the aws cli
#
##########

VPC_CIDR=10.0.0.0/16
PUBLIC_CIDR_SUBNET=10.0.1.0/24
PRIVATE_CIDR_SUBNET=10.0.0.0/24

# Create VPC
echo -n "Creating VPC..."
VPC_ID=$(aws ec2 create-vpc --cidr-block $VPC_CIDR --query Vpc.VpcId --output text)

# Create tag name
aws ec2 create-tags --resources $VPC_ID --tags Key=Name,Value=$CLUSTER_NAME

# Enable dns hostname
aws ec2 modify-vpc-attribute --vpc-id $VPC_ID --enable-dns-hostnames
echo "done."

# Create Public Subnet
echo -n "Creating public subnet..."
PUBLIC_SUBNET_ID=$(aws ec2 create-subnet --vpc-id $VPC_ID --cidr-block $PUBLIC_CIDR_SUBNET --query Subnet.SubnetId --output text)

aws ec2 create-tags --resources $PUBLIC_SUBNET_ID --tags Key=Name,Value=$CLUSTER_NAME-public
echo "done."

# Create private subnet
echo -n "Creating private subnet..."
PRIVATE_SUBNET_ID=$(aws ec2 create-subnet --vpc-id $VPC_ID --cidr-block $PRIVATE_CIDR_SUBNET --query Subnet.SubnetId --output text)

aws ec2 create-tags --resources $PRIVATE_SUBNET_ID --tags Key=Name,Value=$CLUSTER_NAME-private
echo "done."

# Create an internet gateway for outbound traffic and attach it to the VPC.
echo -n "Creating internet gateway..."
IGW_ID=$(aws ec2 create-internet-gateway --query InternetGateway.InternetGatewayId --output text)
echo "done."

aws ec2 create-tags --resources $IGW_ID --tags Key=Name,Value=$CLUSTER_NAME

aws ec2 attach-internet-gateway --vpc-id $VPC_ID --internet-gateway-id $IGW_ID > /dev/null 2>&1
echo "Attached IGW to VPC."

# Create a route table for outbound traffic and associate it to the public subnet.
echo -n "Creating route table for public subnet..."
PUBLIC_ROUTE_TABLE_ID=$(aws ec2 create-route-table --vpc-id $VPC_ID --query RouteTable.RouteTableId --output text)

aws ec2 create-tags --resources $PUBLIC_ROUTE_TABLE_ID --tags Key=Name,Value=$CLUSTER_NAME
echo "done."

aws ec2 create-route --route-table-id $PUBLIC_ROUTE_TABLE_ID --destination-cidr-block 0.0.0.0/0 --gateway-id $IGW_ID > /dev/null 2>&1
echo "Created default public route."

aws ec2 associate-route-table --subnet-id $PUBLIC_SUBNET_ID --route-table-id $PUBLIC_ROUTE_TABLE_ID > /dev/null 2>&1
echo "Public route table associated"

# Create a NAT gateway in the public subnet for outgoing traffic from the private network.
echo -n "Creating NAT Gateway..."
NAT_IP_ADDRESS=$(aws ec2 allocate-address --domain vpc --query AllocationId --output text)

NAT_GATEWAY_ID=$(aws ec2 create-nat-gateway --subnet-id $PUBLIC_SUBNET_ID --allocation-id $NAT_IP_ADDRESS --query NatGateway.NatGatewayId --output text)

aws ec2 create-tags --resources $NAT_IP_ADDRESS --resources $NAT_GATEWAY_ID --tags Key=Name,Value=$CLUSTER_NAME
sleep 10
echo "done."

# Create a route table for the private subnet to the NAT gateway.
echo -n "Creating a route table for the private subnet to the NAT gateway..."
PRIVATE_ROUTE_TABLE_ID=$(aws ec2 create-route-table --vpc-id $VPC_ID --query RouteTable.RouteTableId --output text)

aws ec2 create-tags --resources $PRIVATE_ROUTE_TABLE_ID $NAT_IP_ADDRESS --tags Key=Name,Value=$CLUSTER_NAME-private

aws ec2 create-route --route-table-id $PRIVATE_ROUTE_TABLE_ID --destination-cidr-block 0.0.0.0/0 --gateway-id $NAT_GATEWAY_ID > /dev/null 2>&1

aws ec2 associate-route-table --subnet-id $PRIVATE_SUBNET_ID --route-table-id $PRIVATE_ROUTE_TABLE_ID > /dev/null 2>&1

echo "done."

# echo "***********VARIABLE VALUES*********"
# echo "VPC_ID="$VPC_ID
# echo "PUBLIC_SUBNET_ID="$PUBLIC_SUBNET_ID
# echo "PRIVATE_SUBNET_ID="$PRIVATE_SUBNET_ID
# echo "PUBLIC_ROUTE_TABLE_ID="$PUBLIC_ROUTE_TABLE_ID
# echo "PRIVATE_ROUTE_TABLE_ID="$PRIVATE_ROUTE_TABLE_ID
# echo "NAT_GATEWAY_ID="$NAT_GATEWAY_ID
# echo "IGW_ID="$IGW_ID
# echo "NAT_IP_ADDRESS="$NAT_IP_ADDRESS

echo "Setup complete."
echo ""
echo "To make the cluster create commands easier, please run the following commands to set the environment variables:"
echo "export PUBLIC_SUBNET_ID=$PUBLIC_SUBNET_ID"
echo "export PRIVATE_SUBNET_ID=$PRIVATE_SUBNET_ID"

Copy to Clipboard

Toggle word wrap

The script outputs commands. Set the commands as environment variables to store the subnet IDs for later use. Copy and run the commands:
```
export PUBLIC_SUBNET_ID=$PUBLIC_SUBNET_ID
export PRIVATE_SUBNET_ID=$PRIVATE_SUBNET_ID
```
```
$ export PUBLIC_SUBNET_ID=$PUBLIC_SUBNET_ID
$ export PRIVATE_SUBNET_ID=$PRIVATE_SUBNET_ID
```
Copy to Clipboard Toggle word wrap

Confirm your environment variables by running the following command:

echo "Public Subnet: $PUBLIC_SUBNET_ID"; echo "Private Subnet: $PRIVATE_SUBNET_ID"

$ echo "Public Subnet: $PUBLIC_SUBNET_ID"; echo "Private Subnet: $PRIVATE_SUBNET_ID"

Copy to Clipboard

Toggle word wrap

Example output

Public Subnet: subnet-0faeeeb0000000000
Private Subnet: subnet-011fe340000000000

Public Subnet: subnet-0faeeeb0000000000
Private Subnet: subnet-011fe340000000000

Copy to Clipboard

Toggle word wrap

1.1.1.2. Creating your OIDC configuration
Copia collegamento

In this workshop, we will use the automatic mode when creating the OIDC configuration. We will also store the OIDC ID as an environment variable for later use. The command uses the ROSA CLI to create your cluster’s unique OIDC configuration.

Create the OIDC configuration by running the following command:

export OIDC_ID=$(rosa create oidc-config --mode auto --managed --yes -o json | jq -r '.id')

$ export OIDC_ID=$(rosa create oidc-config --mode auto --managed --yes -o json | jq -r '.id')

Copy to Clipboard

Toggle word wrap

1.1.2. Creating additional environment variables
Copia collegamento

Run the following command to set up environment variables. These variables make it easier to run the command to create a ROSA cluster:
```
export CLUSTER_NAME=<cluster_name>
export REGION=<VPC_region>
```
```
$ export CLUSTER_NAME=<cluster_name>
$ export REGION=<VPC_region>
```
Copy to Clipboard Toggle word wrap
Tip
Run rosa whoami to find the VPC region.

1.1.3. Creating a cluster
Copia collegamento

Optional: Run the following command to create the account-wide roles and policies, including the Operator policies and the AWS IAM roles and policies:
Important
Only complete this step if this is the first time you are deploying ROSA in this account and you have not yet created your account roles and policies.
```
rosa create account-roles --mode auto --yes
```
```
$ rosa create account-roles --mode auto --yes
```
Copy to Clipboard Toggle word wrap

Run the following command to create the cluster:

rosa create cluster --cluster-name $CLUSTER_NAME \
--subnet-ids ${PUBLIC_SUBNET_ID},${PRIVATE_SUBNET_ID} \
--hosted-cp \
--region $REGION \
--oidc-config-id $OIDC_ID \
--sts --mode auto --yes

$ rosa create cluster --cluster-name $CLUSTER_NAME \
--subnet-ids ${PUBLIC_SUBNET_ID},${PRIVATE_SUBNET_ID} \
--hosted-cp \
--region $REGION \
--oidc-config-id $OIDC_ID \
--sts --mode auto --yes

Copy to Clipboard

Toggle word wrap

The cluster is ready after about 10 minutes. The cluster will have a control plane across three AWS availability zones in your selected region and create two worker nodes in your AWS account.

1.1.4. Checking the installation status
Copia collegamento

Run one of the following commands to check the status of the cluster:
- For a detailed view of the cluster status, run:
  $ rosa describe cluster --cluster $CLUSTER_NAME
  Copy to Clipboard Toggle word wrap
- For an abridged view of the cluster status, run:
  $ rosa list clusters
  Copy to Clipboard Toggle word wrap
- To watch the log as it progresses, run:
  $ rosa logs install --cluster $CLUSTER_NAME --watch
  Copy to Clipboard Toggle word wrap
Once the state changes to “ready” your cluster is installed. It might take a few more minutes for the worker nodes to come online.

1.2. Creating an admin user
Copia collegamento

Creating an administration (admin) user allows you to access your cluster quickly. Follow these steps to create an admin user.

Note

An admin user works well in this tutorial setting. For actual deployment, use a formal identity provider to access the cluster and grant the user admin privileges.

Run the following command to create the admin user:

rosa create admin --cluster=<cluster-name>

rosa create admin --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

W: It is recommended to add an identity provider to login to this cluster. See 'rosa create idp --help' for more information.
I: Admin account has been added to cluster 'my-rosa-cluster'. It may take up to a minute for the account to become active.
I: To login, run the following command:
oc login https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443 \
--username cluster-admin \
--password FWGYL-2mkJI-00000-00000

W: It is recommended to add an identity provider to login to this cluster. See 'rosa create idp --help' for more information.
I: Admin account has been added to cluster 'my-rosa-cluster'. It may take up to a minute for the account to become active.
I: To login, run the following command:
oc login https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443 \
--username cluster-admin \
--password FWGYL-2mkJI-00000-00000

Copy to Clipboard

Toggle word wrap

Copy the log in command returned to you in the previous step and paste it into your terminal. This will log you in to the cluster using the CLI so you can start using the cluster.

oc login https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443 \
   --username cluster-admin \
   --password FWGYL-2mkJI-00000-00000

$ oc login https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443 \
>    --username cluster-admin \
>    --password FWGYL-2mkJI-00000-00000

Copy to Clipboard

Toggle word wrap

Example output

Login successful.

You have access to 79 projects, the list has been suppressed. You can list all projects with ' projects'

Using project "default".

Login successful.

You have access to 79 projects, the list has been suppressed. You can list all projects with ' projects'

Using project "default".

Copy to Clipboard

Toggle word wrap

To check that you are logged in as the admin user, run one of the following commands:
- Option 1:
  $ oc whoami
  Copy to Clipboard Toggle word wrap
  Example output
  cluster-admin

  Copy to Clipboard Toggle word wrap
- Option 2:
  oc get all -n openshift-apiserver
  Copy to Clipboard Toggle word wrap
  Only an admin user can run this command without errors.
You can now use the cluster as an admin user, which will suffice for this tutorial. For actual deployment, it is highly recommended to set up an identity provider, which is explained in the next tutorial.

1.3. Setting up an identity provider
Copia collegamento

To log in to your cluster, set up an identity provider (IDP). This tutorial uses GitHub as an example IDP. See the full list of IDPs supported by ROSA.

To view all IDP options, run the following command:
```
rosa create idp --help
```
```
rosa create idp --help
```
Copy to Clipboard Toggle word wrap

1.3.1. Setting up an IDP with GitHub
Copia collegamento

Log in to your GitHub account.
Create a new GitHub organization where you are an administrator.
Tip
If you are already an administrator in an existing organization and you want to use that organization, skip to step 9.
Click the + icon, then click New Organization.

View larger image
Choose the most applicable plan for your situation or click Join for free.
Enter an organization account name, an email, and whether it is a personal or business account. Then, click Next.

View larger image
Optional: Add the GitHub IDs of other users to grant additional access to your ROSA cluster. You can also add them later.
Click Complete Setup.
Optional: Enter the requested information on the following page.
Click Submit.
Go back to the terminal and enter the following command to set up the GitHub IDP:
```
rosa create idp --cluster=<cluster name> --interactive
```
```
rosa create idp --cluster=<cluster name> --interactive
```
Copy to Clipboard Toggle word wrap

Enter the following values:

Type of identity provider: github
Identity Provider Name: <IDP-name>
Restrict to members of: organizations
GitHub organizations: <organization-account-name>

Type of identity provider: github
Identity Provider Name: <IDP-name>
Restrict to members of: organizations
GitHub organizations: <organization-account-name>

Copy to Clipboard

Toggle word wrap

The CLI will provide you with a link. Copy and paste the link into a browser and press Enter. This will fill the required information to register this application for OAuth. You do not need to modify any of the information.

View larger image
Click Register application.

View larger image
The next page displays a Client ID. Copy the ID and paste it in the terminal where it asks for Client ID.
Note
Do not close the tab.
The CLI will ask for a Client Secret. Go back in your browser and click Generate a new client secret.

View larger image
A secret is generated for you. Copy your secret because it will never be visible again.
Paste your secret into the terminal and press Enter.
Leave GitHub Enterprise Hostname blank.
Select claim.
Wait approximately 1 minute for the IDP to be created and the configuration to land on your cluster.

View larger image
Copy the returned link and paste it into your browser. The new IDP should be available under your chosen name. Click your IDP and use your GitHub credentials to access the cluster.

View larger image

1.3.2. Granting other users access to the cluster
Copia collegamento

To grant access to other cluster user you will need to add their GitHub user ID to the GitHub organization used for this cluster.

In GitHub, go to the Your organizations page.
Click your profile icon, then Your organizations. Then click <your-organization-name>. In our example, it is my-rosa-cluster.

View larger image
Click Invite someone.

View larger image
Enter the GitHub ID of the new user, select the correct user, and click Invite.
Once the new user accepts the invitation, they will be able to log in to the ROSA cluster using the Hybrid Cloud Console link and their GitHub credentials.

1.4. Granting admin privileges
Copia collegamento

Administration (admin) privileges are not automatically granted to users that you add to your cluster. If you want to grant admin-level privileges to certain users, you will need to manually grant them to each user. You can grant admin privileges from either the ROSA command-line interface (CLI) or the Red Hat OpenShift Cluster Manager web user interface (UI).

Red Hat offers two types of admin privileges:

cluster-admin: cluster-admin privileges give the admin user full privileges within the cluster.
dedicated-admin: dedicated-admin privileges allow the admin user to complete most administrative tasks with certain limitations to prevent cluster damage. It is best practice to use dedicated-admin when elevated privileges are needed.

For more information on admin privileges, see the administering a cluster documentation.

1.4.1. Using the ROSA CLI
Copia collegamento

Assuming you are the user who created the cluster, run one of the following commands to grant admin privileges:

For cluster-admin:

rosa grant user cluster-admin --user <idp_user_name> --cluster=<cluster-name>

$ rosa grant user cluster-admin --user <idp_user_name> --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

For dedicated-admin:

rosa grant user dedicated-admin --user <idp_user_name> --cluster=<cluster-name>

$ rosa grant user dedicated-admin --user <idp_user_name> --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

Verify that the admin privileges were added by running the following command:

rosa list users --cluster=<cluster-name>

$ rosa list users --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

rosa list users --cluster=my-rosa-cluster

$ rosa list users --cluster=my-rosa-cluster
ID                 GROUPS
<idp_user_name>    cluster-admins

Copy to Clipboard

Toggle word wrap

If you are currently logged into the Red Hat Hybrid Cloud Console, log out of the console and log back in to the cluster to see a new perspective with the "Administrator Panel". You might need an incognito or private window.
You can also test that admin privileges were added to your account by running the following command. Only a cluster-admin users can run this command without errors.
```
oc get all -n openshift-apiserver
```
```
$ oc get all -n openshift-apiserver
```
Copy to Clipboard Toggle word wrap

1.4.2. Using the Red Hat OpenShift Cluster Manager UI
Copia collegamento

Log in to the OpenShift Cluster Manager.
Select your cluster.
Click the Access Control tab.
Click the Cluster roles and Access tab in the sidebar.
Click Add user.

View larger image
On the pop-up screen, enter the user ID.
Select whether you want to grant the user cluster-admins or dedicated-admins privileges.

View larger image

1.5. Accessing your cluster
Copia collegamento

You can connect to your cluster using the command-line interface (CLI) or the Red Hat Hybrid Cloud Console user interface (UI).

1.5.1. Accessing your cluster using the CLI
Copia collegamento

To access the cluster using the CLI, you must have the oc CLI installed. If you are following the tutorials, you already installed the oc CLI.

Log in to the OpenShift Cluster Manager.

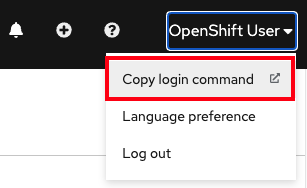

Click your username in the top right corner.
Click Copy Login Command.

View larger image
This opens a new tab with a choice of identity providers (IDPs). Click the IDP you want to use. For example, "rosa-github".

View larger image
A new tab opens. Click Display token.

Run the following command in your terminal:

oc login --token=sha256~GBAfS4JQ0t1UTKYHbWAK6OUWGUkdMGz000000000000 --server=https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443

$ oc login --token=sha256~GBAfS4JQ0t1UTKYHbWAK6OUWGUkdMGz000000000000 --server=https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443

Copy to Clipboard

Toggle word wrap

Example output

Logged into "https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443" as "rosa-user" using the token provided.

You have access to 79 projects, the list has been suppressed. You can list all projects with ' projects'

Using project "default".

Logged into "https://api.my-rosa-cluster.abcd.p1.openshiftapps.com:6443" as "rosa-user" using the token provided.

You have access to 79 projects, the list has been suppressed. You can list all projects with ' projects'

Using project "default".

Copy to Clipboard

Toggle word wrap

Confirm that you are logged in by running the following command:
```
oc whoami
```
```
$ oc whoami
```
Copy to Clipboard Toggle word wrap
Example output
```
rosa-user
```
```
rosa-user
```
Copy to Clipboard Toggle word wrap
You can now access your cluster.

1.5.2. Accessing the cluster via the Hybrid Cloud Console
Copia collegamento

Log in to the OpenShift Cluster Manager.
1. To retrieve the Hybrid Cloud Console URL run:
  rosa describe cluster -c <cluster-name> | grep Console
  Copy to Clipboard Toggle word wrap
Click your IDP. For example, "rosa-github".

View larger image
Enter your user credentials.
You should be logged in. If you are following the tutorials, you will be a cluster-admin and should see the Hybrid Cloud Console webpage with the Administrator panel visible.

View larger image

1.6. Managing worker nodes
Copia collegamento

In Red Hat OpenShift Service on AWS (ROSA), changing aspects of your worker nodes is performed through the use of machine pools. A machine pool allows users to manage many machines as a single entity. Every ROSA cluster has a default machine pool that is created when the cluster is created. For more information, see the machine pool documentation.

1.6.1. Creating a machine pool
Copia collegamento

You can create a machine pool with either the command-line interface (CLI) or the user interface (UI).

1.6.1.1. Creating a machine pool with the CLI
Copia collegamento

Run the following command:

rosa create machinepool --cluster=<cluster-name> --name=<machinepool-name> --replicas=<number-nodes>

$ rosa create machinepool --cluster=<cluster-name> --name=<machinepool-name> --replicas=<number-nodes>

Copy to Clipboard

Toggle word wrap

Example input

rosa create machinepool --cluster=my-rosa-cluster --name=new-mp

 $ rosa create machinepool --cluster=my-rosa-cluster --name=new-mp
 --replicas=2

Copy to Clipboard

Toggle word wrap

Example output

I: Machine pool 'new-mp' created successfully on cluster 'my-rosa-cluster'
I: To view all machine pools, run 'rosa list machinepools -c my-rosa-cluster'

I: Machine pool 'new-mp' created successfully on cluster 'my-rosa-cluster'
I: To view all machine pools, run 'rosa list machinepools -c my-rosa-cluster'

Copy to Clipboard

Toggle word wrap

Optional: Add node labels or taints to specific nodes in a new machine pool by running the following command:

rosa create machinepool --cluster=<cluster-name> --name=<machinepool-name> --replicas=<number-nodes> --labels=`<key=pair>`

rosa create machinepool --cluster=<cluster-name> --name=<machinepool-name> --replicas=<number-nodes> --labels=`<key=pair>`

Copy to Clipboard

Toggle word wrap

Example input

rosa create machinepool --cluster=my-rosa-cluster --name=db-nodes-mp --replicas=2 --labels='app=db','tier=backend'

$ rosa create machinepool --cluster=my-rosa-cluster --name=db-nodes-mp --replicas=2 --labels='app=db','tier=backend'

Copy to Clipboard

Toggle word wrap

Example output

I: Machine pool 'db-nodes-mp' created successfully on cluster 'my-rosa-cluster'

I: Machine pool 'db-nodes-mp' created successfully on cluster 'my-rosa-cluster'

Copy to Clipboard

Toggle word wrap

This creates an additional 2 nodes that can be managed as a unit and also assigns them the labels shown.

Run the following command to confirm machine pool creation and the assigned labels:

rosa list machinepools --cluster=<cluster-name>

rosa list machinepools --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  Yes          2/2-4     m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  Yes          2/2-4     m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

Copy to Clipboard

Toggle word wrap

1.6.1.2. Creating a machine pool with the UI
Copia collegamento

Log in to the OpenShift Cluster Manager and click your cluster.

View larger image
Click the Machine pools tab.
Click Add machine pool.
Enter the desired configuration.
Tip
You can also and expand the Edit node labels and taints section to add node labels and taints to the nodes in the machine pool.

View larger image
Click the Add machine pool button to save.
You will see the new machine pool you created.

View larger image

1.6.2. Scaling worker nodes
Copia collegamento

Edit a machine pool to scale the number of worker nodes in that specific machine pool. You can use either the CLI or the UI to scale worker nodes.

1.6.2.1. Scaling worker nodes using the CLI
Copia collegamento

Run the following command to see the default machine pool that is created with each cluster:

rosa list machinepools --cluster=<cluster-name>

rosa list machinepools --cluster=<cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

ID          AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS            TAINTS    AVAILABILITY ZONES
Default     No           2         m5.xlarge                                  us-east-1a

ID          AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS            TAINTS    AVAILABILITY ZONES
Default     No           2         m5.xlarge                                  us-east-1a

Copy to Clipboard

Toggle word wrap

To scale the default machine pool out to a different number of nodes, run the following command:

rosa edit machinepool --cluster=<cluster-name> --replicas=<number-nodes> <machinepool-name>

rosa edit machinepool --cluster=<cluster-name> --replicas=<number-nodes> <machinepool-name>

Copy to Clipboard

Toggle word wrap

Example input

rosa edit machinepool --cluster=my-rosa-cluster --replicas 3 Default

rosa edit machinepool --cluster=my-rosa-cluster --replicas 3 Default

Copy to Clipboard

Toggle word wrap

Run the following command to confirm that the machine pool has scaled:

rosa describe cluster --cluster=<cluster-name> | grep Compute

rosa describe cluster --cluster=<cluster-name> | grep Compute

Copy to Clipboard

Toggle word wrap

Example input

rosa describe cluster --cluster=my-rosa-cluster | grep Compute

$ rosa describe cluster --cluster=my-rosa-cluster | grep Compute

Copy to Clipboard

Toggle word wrap

Example output

 - Compute (Autoscaled):    2-4
 - Compute (current):       2

 - Compute (Autoscaled):    2-4
 - Compute (current):       2

Copy to Clipboard

Toggle word wrap

1.6.2.2. Scaling worker nodes using the UI
Copia collegamento

Click the three dots to the right of the machine pool you want to edit.
Click Edit.
Enter the desired number of nodes, and click Save.
Confirm that the cluster has scaled by selecting the cluster, clicking the Overview tab, and scrolling to Compute listing. The compute listing should equal the scaled nodes. For example, 3/3.

View larger image

1.6.2.3. Adding node labels
Copia collegamento

Use the following command to add node labels:

rosa edit machinepool --cluster=<cluster-name> --replicas=<number-nodes> --labels='key=value' <machinepool-name>

rosa edit machinepool --cluster=<cluster-name> --replicas=<number-nodes> --labels='key=value' <machinepool-name>

Copy to Clipboard

Toggle word wrap

Example input

rosa edit machinepool --cluster=my-rosa-cluster --replicas=2 --labels 'foo=bar','baz=one' new-mp

rosa edit machinepool --cluster=my-rosa-cluster --replicas=2 --labels 'foo=bar','baz=one' new-mp

Copy to Clipboard

Toggle word wrap

This adds 2 labels to the new machine pool.

Important

This command replaces all machine pool configurations with the newly defined configuration. If you want to add another label and keep the old label, you must state both the new and preexisting the label. Otherwise the command will replace all preexisting labels with the one you wanted to add. Similarly, if you want to delete a label, run the command and state the ones you want, excluding the one you want to delete.

1.6.3. Mixing node types
Copia collegamento

You can also mix different worker node machine types in the same cluster by using new machine pools. You cannot change the node type of a machine pool once it is created, but you can create a new machine pool with different nodes by adding the --instance-type flag.

For example, to change the database nodes to a different node type, run the following command:

rosa create machinepool --cluster=<cluster-name> --name=<mp-name> --replicas=<number-nodes> --labels='<key=pair>' --instance-type=<type>

rosa create machinepool --cluster=<cluster-name> --name=<mp-name> --replicas=<number-nodes> --labels='<key=pair>' --instance-type=<type>

Copy to Clipboard

Toggle word wrap

Example input

rosa create machinepool --cluster=my-rosa-cluster --name=db-nodes-large-mp --replicas=2 --labels='app=db','tier=backend' --instance-type=m5.2xlarge

rosa create machinepool --cluster=my-rosa-cluster --name=db-nodes-large-mp --replicas=2 --labels='app=db','tier=backend' --instance-type=m5.2xlarge

Copy to Clipboard

Toggle word wrap

To see all the instance types available, run the following command:
```
rosa list instance-types
```
```
rosa list instance-types
```
Copy to Clipboard Toggle word wrap
To make step-by-step changes, use the --interactive flag:
```
rosa create machinepool -c <cluster-name> --interactive
```
```
rosa create machinepool -c <cluster-name> --interactive
```
Copy to Clipboard Toggle word wrap
View larger image
Run the following command to list the machine pools and see the new, larger instance type:
```
rosa list machinepools -c <cluster-name>
```
```
rosa list machinepools -c <cluster-name>
```
Copy to Clipboard Toggle word wrap
View larger image

1.7. Autoscaling
Copia collegamento

The cluster autoscaler adds or removes worker nodes from a cluster based on pod resources.

The cluster autoscaler increases the size of the cluster when:

Pods fail to schedule on the current nodes due to insufficient resources.
Another node is necessary to meet deployment needs.

The cluster autoscaler does not increase the cluster resources beyond the limits that you specify.

The cluster autoscaler decreases the size of the cluster when:

Some nodes are consistently not needed for a significant period. For example, when a node has low resource use and all of its important pods can fit on other nodes.

1.7.1. Enabling autoscaling for an existing machine pool using the CLI
Copia collegamento

Note

Cluster autoscaling can be enabled at cluster creation and when creating a new machine pool by using the --enable-autoscaling option.

Autoscaling is set based on machine pool availability. To find out which machine pools are available for autoscaling, run the following command:

rosa list machinepools -c <cluster-name>

$ rosa list machinepools -c <cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  No           2/2       m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  No           2/2       m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

Copy to Clipboard

Toggle word wrap

Run the following command to add autoscaling to an available machine pool:

rosa edit machinepool -c <cluster-name> --enable-autoscaling <machinepool-name> --min-replicas=<num> --max-replicas=<num>

$ rosa edit machinepool -c <cluster-name> --enable-autoscaling <machinepool-name> --min-replicas=<num> --max-replicas=<num>

Copy to Clipboard

Toggle word wrap

Example input

rosa edit machinepool -c my-rosa-cluster --enable-autoscaling workers --min-replicas=2 --max-replicas=4

$ rosa edit machinepool -c my-rosa-cluster --enable-autoscaling workers --min-replicas=2 --max-replicas=4

Copy to Clipboard

Toggle word wrap

The above command creates an autoscaler for the worker nodes that scales between 2 and 4 nodes depending on the resources.

1.7.2. Enabling autoscaling for an existing machine pool using the UI
Copia collegamento

Note

Cluster autoscaling can be enabled at cluster creation by checking the Enable autoscaling checkbox when creating machine pools.

Go to the Machine pools tab and click the three dots in the right..
Click Edit, then Enable autoscaling.
Edit the number of minimum and maximum node counts or leave the default numbers.
Click Save.

Run the following command to confirm that autoscaling was added:

rosa list machinepools -c <cluster-name>

$ rosa list machinepools -c <cluster-name>

Copy to Clipboard

Toggle word wrap

Example output

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  Yes          2/2-4     m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

ID       AUTOSCALING  REPLICAS  INSTANCE TYPE  LABELS    TAINTS    AVAILABILITY ZONE  SUBNET                    DISK SIZE  VERSION  AUTOREPAIR
workers  Yes          2/2-4     m5.xlarge                          us-east-1f         subnet-<subnet_id>  300 GiB    4.14.36  Yes

Copy to Clipboard

Toggle word wrap

1.8. Upgrading your cluster
Copia collegamento

Red Hat OpenShift Service on AWS (ROSA) executes all cluster upgrades as part of the managed service. You do not need to run any commands or make changes to the cluster. You can schedule the upgrades at a convenient time.

Ways to schedule a cluster upgrade include:

Manually using the command line interface (CLI): Start a one-time immediate upgrade or schedule a one-time upgrade for a future date and time.
Manually using the Red Hat OpenShift Cluster Manager user interface (UI): Start a one-time immediate upgrade or schedule a one-time upgrade for a future date and time.
Automated upgrades: Set an upgrade window for recurring y-stream upgrades whenever a new version is available without needing to manually schedule it. Minor versions have to be manually scheduled.

For more details about cluster upgrades, run the following command:

rosa upgrade cluster --help

$ rosa upgrade cluster --help

Copy to Clipboard

Toggle word wrap

1.8.1. Manually upgrading your cluster using the CLI
Copia collegamento

Check if there is an upgrade available by running the following command:
```
rosa list upgrade -c <cluster-name>
```
```
$ rosa list upgrade -c <cluster-name>
```
Copy to Clipboard Toggle word wrap
Example output
```
rosa list upgrade -c <cluster-name>
```
```
$ rosa list upgrade -c <cluster-name>
VERSION  NOTES
4.14.7   recommended
4.14.6
...
```
Copy to Clipboard Toggle word wrap
In the above example, versions 4.14.7 and 4.14.6 are both available.

Schedule the cluster to upgrade within the hour by running the following command:

rosa upgrade cluster -c --control-plane <cluster-name> --version <desired-version>

$ rosa upgrade cluster -c --control-plane <cluster-name> --version <desired-version>

Copy to Clipboard

Toggle word wrap

Optional: Schedule the cluster to upgrade at a later date and time by running the following command:

rosa upgrade cluster -c <cluster-name> --version <desired-version> --schedule-date <future-date-for-update> --schedule-time <future-time-for-update>

$ rosa upgrade cluster -c <cluster-name> --version <desired-version> --schedule-date <future-date-for-update> --schedule-time <future-time-for-update>

Copy to Clipboard

Toggle word wrap

1.8.2. Manually upgrading your cluster using the UI
Copia collegamento

Log in to the OpenShift Cluster Manager, and select the cluster you want to upgrade.
Click the Settings tab.
If an upgrade is available, click Update.

View larger image
Select the version to which you want to upgrade in the new window.
Schedule a time for the upgrade or begin it immediately.

1.8.3. Setting up automatic recurring upgrades
Copia collegamento

Log in to the OpenShift Cluster Manager, and select the cluster you want to upgrade.
Click the Settings tab.
1. Under Update Strategy, click Recurring updates.
Set the day and time for the upgrade to occur.
Click Save.

1.9. Deleting your cluster
Copia collegamento

You can delete your Red Hat OpenShift Service on AWS (ROSA) cluster using either the command-line interface (CLI) or the user interface (UI).

1.9.1. Deleting a ROSA cluster using the CLI
Copia collegamento

Optional: List your clusters to make sure you are deleting the correct one by running the following command:
```
rosa list clusters
```
```
$ rosa list clusters
```
Copy to Clipboard Toggle word wrap
Delete a cluster by running the following command:
```
rosa delete cluster --cluster <cluster-name>
```
```
$ rosa delete cluster --cluster <cluster-name>
```
Copy to Clipboard Toggle word wrap
Warning
This command is non-recoverable.
The CLI prompts you to confirm that you want to delete the cluster. Press y and then Enter. The cluster and all its associated infrastructure will be deleted.
Note
All AWS STS and IAM roles and policies will remain and must be deleted manually once the cluster deletion is complete by following the steps below.
The CLI outputs the commands to delete the OpenID Connect (OIDC) provider and Operator IAM roles resources that were created. Wait until the cluster finishes deleting before deleting these resources. Perform a quick status check by running the following command:
```
rosa list clusters
```
```
$ rosa list clusters
```
Copy to Clipboard Toggle word wrap
Once the cluster is deleted, delete the OIDC provider by running the following command:
```
rosa delete oidc-provider -c <clusterID> --mode auto --yes
```
```
$ rosa delete oidc-provider -c <clusterID> --mode auto --yes
```
Copy to Clipboard Toggle word wrap
Delete the Operator IAM roles by running the following command:
```
rosa delete operator-roles -c <clusterID> --mode auto --yes
```
```
$ rosa delete operator-roles -c <clusterID> --mode auto --yes
```
Copy to Clipboard Toggle word wrap
Note
This command requires the cluster ID and not the cluster name.
Only remove the remaining account roles if they are no longer needed by other clusters in the same account. If you want to create other ROSA clusters in this account, do not perform this step.
To delete the account roles, you need to know the prefix used when creating them. The default is "ManagedOpenShift" unless you specified otherwise.
Delete the account roles by running the following command:
```
rosa delete account-roles --prefix <prefix> --mode auto --yes
```
```
$ rosa delete account-roles --prefix <prefix> --mode auto --yes
```
Copy to Clipboard Toggle word wrap

1.9.2. Deleting a ROSA cluster using the UI
Copia collegamento

Log in to the OpenShift Cluster Manager, and locate the cluster you want to delete.
Click the three dots to the right of the cluster.

View larger image
In the dropdown menu, click Delete cluster.

View larger image
Enter the name of the cluster to confirm deletion, and click Delete.

1.10. Obtaining support
Copia collegamento

Finding the right help when you need it is important. These are some of the resources at your disposal when you need assistance.

1.10.1. Adding support contacts
Copia collegamento

You can add additional email addresses for communications about your cluster.

On the Red Hat OpenShift Cluster Manager user interface (UI), click Cluster List in the side navigation tabs.
Select the cluster that needs support.
Click the Support tab.
Click Add notification contact, and enter the additional email addresses.

1.10.2. Contacting Red Hat for support using the UI
Copia collegamento

On the OpenShift Cluster Manager UI, click the Support tab.
Click Open support case.

1.10.3. Contacting Red Hat for support using the support page
Copia collegamento

Go to the Red Hat support page.
Click Open a new Case.

View larger image
Log in to your Red Hat account.
Select the reason for contacting support.

View larger image
Select Red Hat OpenShift Service on AWS.

View larger image
Click continue.
Enter a summary of the issue and the details of your request. Upload any files, logs, and screenshots. The more details you provide, the better Red Hat support can help your case.
Note
Relevant suggestions that might help with your issue will appear at the bottom of this page.

View larger image
Click Continue.
Answer the questions in the new fields.
Click Continue.
Enter the following information about your case:
1. Support level: Premium
2. Severity: Review the Red Hat Support Severity Level Definitions to choose the correct one.
3. Group: If this is related to a few other cases you can select the corresponding group.
4. Language
5. Send notifications: Add any additional email addresses to keep notified of activity.
6. Red Hat associates: If you are working with anyone from Red Hat and want to keep them in the loop you can enter their email address here.
7. Alternate Case ID: If you want to attach your own ID to it you can enter it here.
Click Continue.
On the review screen make sure you select the correct cluster ID that you are contacting support about.

View larger image
Click Submit.
You will be contacted based on the response time committed to for the indicated severity level.

Chapter 2. Deploying an application workshop
Copia collegamento

2.1. Workshop overview
Copia collegamento

2.1.1. Introduction
Copia collegamento

After successfully provisioning your cluster, follow this workshop to deploy an application on it to understand the concepts of deploying and operating container-based applications.

Workshop objectives

Deploy a Node.js-based application by using Source-to-Image (S2I) and Kubernetes deployment objects
Set up a continuous delivery (CD) pipeline to automatically push source code changes
Experience self-healing applications
Explore configuration management through ConfigMaps, secrets, and environment variables
Use persistent storage to share data across pod restarts
Explore networking in Kubernetes and applications
Familiarize yourself with ROSA and Kubernetes functionality
Automatically scale pods based on loads from the Horizontal Pod Autoscaler (HPA)

Prerequisites

A provisioned ROSA cluster
The OpenShift command-line interface (CLI)
A GitHub account

2.1.2. About the OSToy application
Copia collegamento

OSToy is a Node.js application that deploys to a ROSA cluster to help explore the functionality of Kubernetes.

This application has a user interface where you can:

Write messages to the log (stdout / stderr)

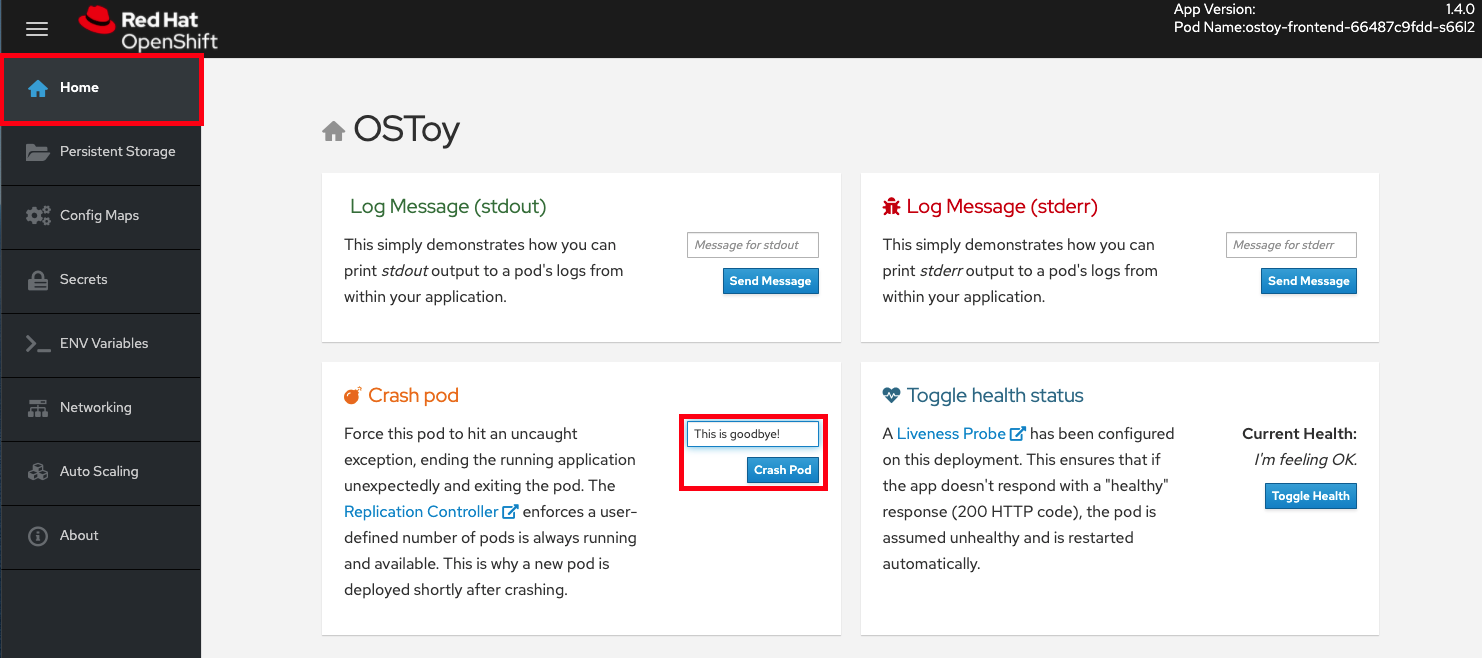

Intentionally crash the application to view self-healing
Toggle a liveness probe and monitor OpenShift behavior
Read ConfigMaps, secrets, and environment variables
Read and write files when connected to shared storage
Check network connectivity, intra-cluster DNS, and intra-communication with the included microservice
Increase the load to view automatic scaling of the pods by using the HPA

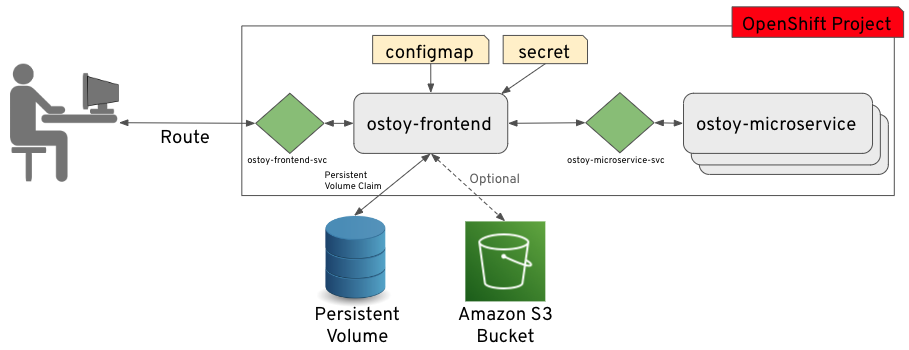

2.1.2.1. OSToy application diagram
Copia collegamento

2.1.2.2. Understanding the OSToy UI
Copia collegamento

Pod name
Home: Application home page

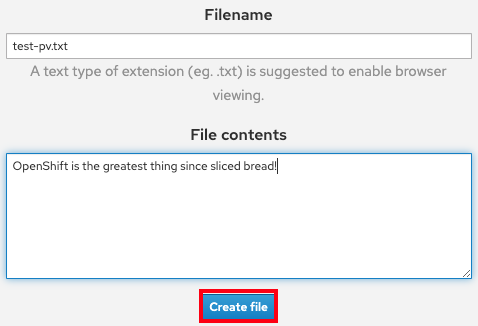

Persistent Storage: Writes data to the persistent volume bound to the application
Config Maps: Shows ConfigMaps available to the application and the key:value pairs
Secrets: Shows secrets available to the application and the key:value pairs
ENV Variables: Shows environment variables available to the application

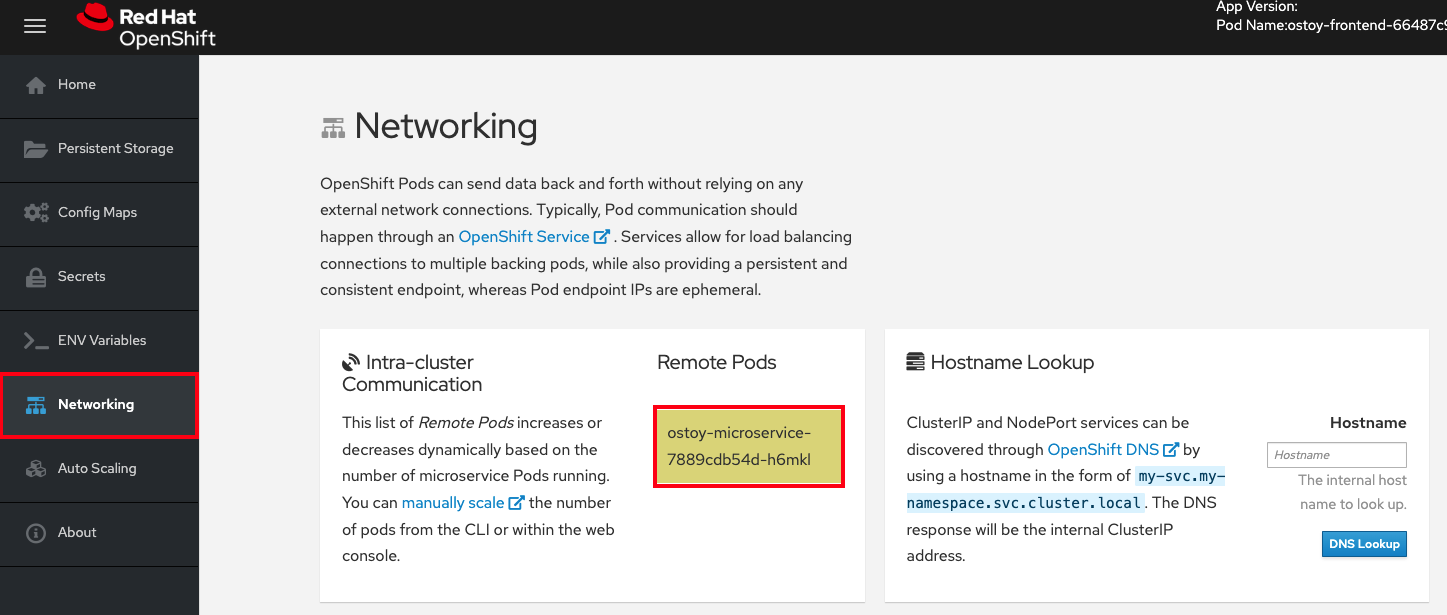

Networking: Networking tools
Pod Auto Scaling: Increase the load of the pods and test the Horizontal Pod Autoscaler (HPA)
ACK S3: Integrate with AWS S3 to read and write objects to a bucket
About: Application information

2.1.2.3. Lab resources
Copia collegamento

OSToy application source code
OSToy front-end container image
OSToy microservice container image

Deployment definition YAML files:

ostoy-frontend-deployment.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ostoy-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ostoy-frontend
  labels:
    app: ostoy
spec:
  selector:
    matchLabels:
      app: ostoy-frontend
  strategy:
    type: Recreate
  replicas: 1
  template:
    metadata:
      labels:
        app: ostoy-frontend
    spec:
      # Uncomment to use with ACK portion of the workshop
      # If you chose a different service account name please replace it.
      # serviceAccount: ostoy-sa
      containers:
      - name: ostoy-frontend
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          seccompProfile:
            type: RuntimeDefault
          capabilities:
            drop:
            - ALL
        image: quay.io/ostoylab/ostoy-frontend:1.6.0
        imagePullPolicy: IfNotPresent
        ports:
        - name: ostoy-port
          containerPort: 8080
        resources:
          requests:
            memory: "256Mi"
            cpu: "100m"
          limits:
            memory: "512Mi"
            cpu: "200m"
        volumeMounts:
        - name: configvol
          mountPath: /var/config
        - name: secretvol
          mountPath: /var/secret
        - name: datavol
          mountPath: /var/demo_files
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
          initialDelaySeconds: 10
          periodSeconds: 5
        env:
        - name: ENV_TOY_SECRET
          valueFrom:
            secretKeyRef:
              name: ostoy-secret-env
              key: ENV_TOY_SECRET
        - name: MICROSERVICE_NAME
          value: OSTOY_MICROSERVICE_SVC
        - name: NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
      volumes:
        - name: configvol
          configMap:
            name: ostoy-configmap-files
        - name: secretvol
          secret:
            defaultMode: 420
            secretName: ostoy-secret
        - name: datavol
          persistentVolumeClaim:
            claimName: ostoy-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: ostoy-frontend-svc
  labels:
    app: ostoy-frontend
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: ostoy-port
      protocol: TCP
      name: ostoy
  selector:
    app: ostoy-frontend
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  name: ostoy-route
spec:
  to:
    kind: Service
    name: ostoy-frontend-svc
---
apiVersion: v1
kind: Secret
metadata:
  name: ostoy-secret-env
type: Opaque
data:
  ENV_TOY_SECRET: VGhpcyBpcyBhIHRlc3Q=
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: ostoy-configmap-files
data:
  config.json:  '{ "default": "123" }'
---
apiVersion: v1
kind: Secret
metadata:
  name: ostoy-secret
data:
  secret.txt: VVNFUk5BTUU9bXlfdXNlcgpQQVNTV09SRD1AT3RCbCVYQXAhIzYzMlk1RndDQE1UUWsKU01UUD1sb2NhbGhvc3QKU01UUF9QT1JUPTI1
type: Opaque

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ostoy-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ostoy-frontend
  labels:
    app: ostoy
spec:
  selector:
    matchLabels:
      app: ostoy-frontend
  strategy:
    type: Recreate
  replicas: 1
  template:
    metadata:
      labels:
        app: ostoy-frontend
    spec:
      # Uncomment to use with ACK portion of the workshop
      # If you chose a different service account name please replace it.
      # serviceAccount: ostoy-sa
      containers:
      - name: ostoy-frontend
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          seccompProfile:
            type: RuntimeDefault
          capabilities:
            drop:
            - ALL
        image: quay.io/ostoylab/ostoy-frontend:1.6.0
        imagePullPolicy: IfNotPresent
        ports:
        - name: ostoy-port
          containerPort: 8080
        resources:
          requests:
            memory: "256Mi"
            cpu: "100m"
          limits:
            memory: "512Mi"
            cpu: "200m"
        volumeMounts:
        - name: configvol
          mountPath: /var/config
        - name: secretvol
          mountPath: /var/secret
        - name: datavol
          mountPath: /var/demo_files
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
          initialDelaySeconds: 10
          periodSeconds: 5
        env:
        - name: ENV_TOY_SECRET
          valueFrom:
            secretKeyRef:
              name: ostoy-secret-env
              key: ENV_TOY_SECRET
        - name: MICROSERVICE_NAME
          value: OSTOY_MICROSERVICE_SVC
        - name: NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
      volumes:
        - name: configvol
          configMap:
            name: ostoy-configmap-files
        - name: secretvol
          secret:
            defaultMode: 420
            secretName: ostoy-secret
        - name: datavol
          persistentVolumeClaim:
            claimName: ostoy-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: ostoy-frontend-svc
  labels:
    app: ostoy-frontend
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: ostoy-port
      protocol: TCP
      name: ostoy
  selector:
    app: ostoy-frontend
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  name: ostoy-route
spec:
  to:
    kind: Service
    name: ostoy-frontend-svc
---
apiVersion: v1
kind: Secret
metadata:
  name: ostoy-secret-env
type: Opaque
data:
  ENV_TOY_SECRET: VGhpcyBpcyBhIHRlc3Q=
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: ostoy-configmap-files
data:
  config.json:  '{ "default": "123" }'
---
apiVersion: v1
kind: Secret
metadata:
  name: ostoy-secret
data:
  secret.txt: VVNFUk5BTUU9bXlfdXNlcgpQQVNTV09SRD1AT3RCbCVYQXAhIzYzMlk1RndDQE1UUWsKU01UUD1sb2NhbGhvc3QKU01UUF9QT1JUPTI1
type: Opaque

Copy to Clipboard

Toggle word wrap

ostoy-microservice-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: ostoy-microservice
  labels:
    app: ostoy
spec:
  selector:
    matchLabels:
      app: ostoy-microservice
  replicas: 1
  template:
    metadata:
      labels:
        app: ostoy-microservice
    spec:
      containers:
      - name: ostoy-microservice
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          seccompProfile:
            type: RuntimeDefault
          capabilities:
            drop:
            - ALL
        image: quay.io/ostoylab/ostoy-microservice:1.5.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          protocol: TCP
        resources:
          requests:
            memory: "128Mi"
            cpu: "50m"
          limits:
            memory: "256Mi"
            cpu: "100m"
---
apiVersion: v1
kind: Service
metadata:
  name: ostoy-microservice-svc
  labels:
    app: ostoy-microservice
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
      protocol: TCP
  selector:
    app: ostoy-microservice

apiVersion: apps/v1
kind: Deployment
metadata:
  name: ostoy-microservice
  labels:
    app: ostoy
spec:
  selector:
    matchLabels:
      app: ostoy-microservice
  replicas: 1
  template:
    metadata:
      labels:
        app: ostoy-microservice
    spec:
      containers:
      - name: ostoy-microservice
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          seccompProfile:
            type: RuntimeDefault
          capabilities:
            drop:
            - ALL
        image: quay.io/ostoylab/ostoy-microservice:1.5.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          protocol: TCP
        resources:
          requests:
            memory: "128Mi"
            cpu: "50m"
          limits:
            memory: "256Mi"
            cpu: "100m"
---
apiVersion: v1
kind: Service
metadata:
  name: ostoy-microservice-svc
  labels:
    app: ostoy-microservice
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
      protocol: TCP
  selector:
    app: ostoy-microservice

Copy to Clipboard

Toggle word wrap

S3 bucket manifest for ACK S3

s3-bucket.yaml

apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
  name: ostoy-bucket
  namespace: ostoy
spec:
  name: ostoy-bucket

apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
  name: ostoy-bucket
  namespace: ostoy
spec:
  name: ostoy-bucket

Copy to Clipboard

Toggle word wrap

Note

To simplify deployment of the OSToy application, all of the objects required in the above deployment manifests are grouped together. For a typical enterprise deployment, a separate manifest file for each Kubernetes object is recommended.

2.2. Deploying the OSToy application with Kubernetes
Copia collegamento

Deploying an application involves creating a container image, storing it in an image repository, and defining Deployment object that uses that image.

Deploying an application involves the following steps:

Create the images for the front-end and back-end microservice containers
Store the container images in an image repository
Create the Kubernetes Deployment object for the application
Deploy the application

Note

This workshop focuses on application deployment and has users run a remote file which uses an existing image.

2.2.1. Retrieving the login command
Copia collegamento

Procedure

Confirm you are logged in to the command-line interface (CLI) by running the following command:
```
rosa whoami
```
```
rosa whoami
```
Copy to Clipboard Toggle word wrap
If you are logged in to the command-line interface, skip to "Creating a new project". If you are not logged in to the command-line interface, continue this procedure.
Access your cluster with the web console.
Click the dropdown arrow next to your login name in the upper right corner, and select Copy Login Command.

View larger image

A new tab opens.
Select your authentication method.
Click Display Token.
Copy the command under Log in with this token.

From your terminal, paste and run the copied command. If the login is successful, you will see the following confirmation message:

oc login --token=<your_token> --server=https://api.osd4-demo.abc1.p1.openshiftapps.com:6443

$ oc login --token=<your_token> --server=https://api.osd4-demo.abc1.p1.openshiftapps.com:6443
Logged into "https://api.myrosacluster.abcd.p1.openshiftapps.com:6443" as "rosa-user" using the token provided.

You don't have any projects. You can try to create a new project, by running

oc new-project <project name>

Copy to Clipboard

Toggle word wrap

2.2.2. Creating a new project
Copia collegamento

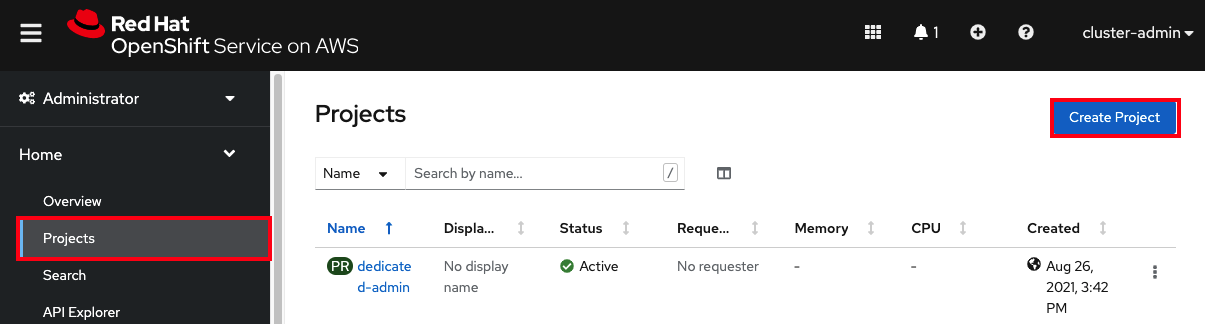

Use your preferred interface to create a new project.

2.2.2.1. Creating a new project using the CLI
Copia collegamento

Procedure

Create a new project named ostoy in your cluster by running following command:

oc new-project ostoy

$ oc new-project ostoy

Copy to Clipboard

Toggle word wrap

Example output

Now using project "ostoy" on server "https://api.myrosacluster.abcd.p1.openshiftapps.com:6443".

Now using project "ostoy" on server "https://api.myrosacluster.abcd.p1.openshiftapps.com:6443".

Copy to Clipboard

Toggle word wrap

Optional: Create a unique project name by running the following command:

oc new-project ostoy-$(uuidgen | cut -d - -f 2 | tr '[:upper:]' '[:lower:]')

$ oc new-project ostoy-$(uuidgen | cut -d - -f 2 | tr '[:upper:]' '[:lower:]')

Copy to Clipboard

Toggle word wrap

2.2.2.2. Creating a new project using the web console
Copia collegamento

Procedure

From the web console, click Home → Projects.
On the Projects page, click create Create Project.

View larger image
In the Create Project box, enter a project name in the Name field.
Click Create.

2.2.3. Deploying the back-end microservice
Copia collegamento

The microservice serves internal web requests and returns a JSON object containing the current hostname and a randomly generated color string.

Procedure

Deploy the microservice by running the following command:

oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-microservice-deployment.yaml

$ oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-microservice-deployment.yaml

Copy to Clipboard

Toggle word wrap

Example output

oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-microservice-deployment.yaml

$ oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-microservice-deployment.yaml
deployment.apps/ostoy-microservice created
service/ostoy-microservice-svc created

Copy to Clipboard

Toggle word wrap

2.2.4. Deploying the front-end microservice
Copia collegamento

The front-end deployment uses the Node.js front-end for the application and additional Kubernetes objects.

Front-end deployment defines the following features:

Persistent volume claim
Deployment object
Service
Route
ConfigMaps
Secrets

Procedure

Deploy the application front-end and create the objects by running the following command:

oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-frontend-deployment.yaml

$ oc apply -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/ostoy-frontend-deployment.yaml

Copy to Clipboard

Toggle word wrap

Example output

persistentvolumeclaim/ostoy-pvc created
deployment.apps/ostoy-frontend created
service/ostoy-frontend-svc created
route.route.openshift.io/ostoy-route created
configmap/ostoy-configmap-env created
secret/ostoy-secret-env created
configmap/ostoy-configmap-files created
secret/ostoy-secret created

persistentvolumeclaim/ostoy-pvc created
deployment.apps/ostoy-frontend created
service/ostoy-frontend-svc created
route.route.openshift.io/ostoy-route created
configmap/ostoy-configmap-env created
secret/ostoy-secret-env created
configmap/ostoy-configmap-files created
secret/ostoy-secret created

Copy to Clipboard

Toggle word wrap

All objects should create successfully.

2.2.5. Obtain the route to your application
Copia collegamento

Obtain the route to access the application.

Procedure

Get the route to your application by running the following command:

oc get route

$ oc get route

Copy to Clipboard

Toggle word wrap

Example output

NAME          HOST/PORT                                                 PATH   SERVICES             PORT    TERMINATION   WILDCARD
ostoy-route   ostoy-route-ostoy.apps.<your-rosa-cluster>.abcd.p1.openshiftapps.com          ostoy-frontend-svc   <all>                 None

NAME          HOST/PORT                                                 PATH   SERVICES             PORT    TERMINATION   WILDCARD
ostoy-route   ostoy-route-ostoy.apps.<your-rosa-cluster>.abcd.p1.openshiftapps.com          ostoy-frontend-svc   <all>                 None

Copy to Clipboard

Toggle word wrap

2.2.6. Viewing the application
Copia collegamento

Procedure

Copy the ostoy-route-ostoy.apps.<your-rosa-cluster>.abcd.p1.openshiftapps.com URL output from the previous step.
Paste the copied URL into your web browser and press enter. You should see the homepage of your application. If the page does not load, make sure you used http and not https.

View larger image

2.3. Health check
Copia collegamento

See how Kubernetes responds to pod failure by intentionally crashing your pod and making it unresponsive to the Kubernetes liveness probes.

2.3.1. Preparing your desktop
Copia collegamento

Procedure

From the OpenShift web console, select Workloads > Deployments > ostoy-frontend to view the OSToy deployment.

View larger image

2.3.2. Crashing the pod
Copia collegamento

Procedure

From the OSToy application web console, click Home in the left menu, and enter a message in the Crash Pod box, for example, This is goodbye!.
Click Crash Pod.

View larger image

The pod crashes and Kubernetes restarts the pod.

View larger image

2.3.3. Viewing the revived pod
Copia collegamento

Procedure

From the OpenShift web console, quickly switch to the Deployments screen. You will see that the pod turns yellow, which means it is down. It should quickly revive and turn blue. The revival process happens quickly.

View larger image

Verification

From the web console, click Pods > ostoy-frontend-xxxxxxx-xxxx to change to the pods screen.

View larger image
Click the Events subtab, and verify that the container crashed and restarted.

View larger image

2.3.4. Making the application malfunction
Copia collegamento

Procedure

~~. Keep the pod events page open.~~

From the OSToy application, click Toggle Health in the Toggle Health Status tile. Watch Current Health switch to I’m not feeling all that well.

View larger image

Verification

After you make the application malfunction, the application stops responding with a 200 HTTP code. After 3 consecutive failures, Kubernetes stops the pod and restarts it.

From the web console, switch back to the pod events page to see that the liveness probe failed and the pod restarted.

The following image shows an example of what you will see on your pod events page.

A. The pod has three consecutive failures.

B. Kubernetes stops the pod.

C. Kubernetes restarts the pod.

2.4. Persistent volumes for cluster storage
Copia collegamento

{rosa-classic-first} and Red Hat OpenShift Service on AWS (ROSA) support storing persistent volumes with either Amazon Web Services (AWS) Elastic Block Store (EBS) or AWS Elastic File System (EFS).

2.4.1. Using persistent volumes
Copia collegamento

Use the following procedures to create a file, store it on a persistent volume in your cluster, and confirm that it still exists after pod failure and re-creation.

2.4.1.1. Viewing a persistent volume claim
Copia collegamento

Procedure

Navigate to the cluster’s OpenShift web console.
Click Storage in the left menu, then click PersistentVolumeClaims to see a list of all the persistent volume claims.
Click a persistence volume claim to see the size, access mode, storage class, and other additional claim details.
Note
The access mode is ReadWriteOnce (RWO). This means that the volume can only be mounted to one node and the pod or pods can read and write to the volume.

2.4.1.2. Storing your file
Copia collegamento

Procedure

In the OSToy app console, click Persistent Storage in the left menu.
In the Filename box, enter a file name with a .txt extension, for example test-pv.txt.
In the File contents box, enter a sentence of text, for example OpenShift is the greatest thing since sliced bread!.
Click Create file.

View larger image
Scroll to Existing files on the OSToy app console.
Click the file you created to see the file name and contents.

View larger image

2.4.1.3. Crashing the pod
Copia collegamento

Procedure

On the OSToy app console, click Home in the left menu.
Click Crash pod.

2.4.1.4. Confirming persistent storage
Copia collegamento

Procedure

Wait for the pod to re-create.
On the OSToy app console, click Persistent Storage in the left menu.
Find the file you created, and open it to view and confirm the contents.

View larger image

Verification

The deployment YAML file shows that we mounted the directory /var/demo_files to our persistent volume claim.

Retrieve the name of your front-end pod by running the following command:
```
oc get pods
```
```
$ oc get pods
```
Copy to Clipboard Toggle word wrap
Start a secure shell (SSH) session in your container by running the following command:
```
oc rsh <pod_name>
```
```
$ oc rsh <pod_name>
```
Copy to Clipboard Toggle word wrap
Go to the directory by running the following command:
```
cd /var/demo_files
```
```
$ cd /var/demo_files
```
Copy to Clipboard Toggle word wrap
Optional: See all the files you created by running the following command:
```
ls
```
```
$ ls
```
Copy to Clipboard Toggle word wrap
Open the file to view the contents by running the following command:
```
cat test-pv.txt
```
```
$ cat test-pv.txt
```
Copy to Clipboard Toggle word wrap

Verify that the output is the text you entered in the OSToy app console.

Example terminal

oc get pods
oc rsh ostoy-frontend-5fc8d486dc-wsw24
cd /var/demo_files/
ls
cat test-pv.txt

$ oc get pods
NAME                                  READY     STATUS    RESTARTS   AGE
ostoy-frontend-5fc8d486dc-wsw24       1/1       Running   0          18m
ostoy-microservice-6cf764974f-hx4qm   1/1       Running   0          18m

$ oc rsh ostoy-frontend-5fc8d486dc-wsw24

$ cd /var/demo_files/

$ ls
lost+found   test-pv.txt

$ cat test-pv.txt
OpenShift is the greatest thing since sliced bread!

Copy to Clipboard

Toggle word wrap

2.4.1.5. Ending the session
Copia collegamento

Procedure

Type exit in your terminal to quit the session and return to the CLI.

2.5. ConfigMaps, secrets, and environment variables
Copia collegamento

This tutorial shows how to configure the OSToy application by using config maps, secrets, and environment variables.

2.5.1. Configuration using ConfigMaps
Copia collegamento

Config maps allow you to decouple configuration artifacts from container image content to keep containerized applications portable.

Procedure

In the OSToy app, in the left menu, click Config Maps, displaying the contents of the config map available to the OSToy application. The code snippet shows an example of a config map configuration:
Example output
```
kind: ConfigMap
apiVersion: v1
metadata:
  name: ostoy-configmap-files
data:
  config.json:  '{ "default": "123" }'
```
```
kind: ConfigMap
apiVersion: v1
metadata:
  name: ostoy-configmap-files
data:
  config.json:  '{ "default": "123" }'
```
Copy to Clipboard Toggle word wrap

2.5.2. Configuration using secrets
Copia collegamento

Kubernetes Secret objects allow you to store and manage sensitive information, such as passwords, OAuth tokens, and SSH keys. Putting this information in a secret is safer and more flexible than putting it in plain text into a pod definition or a container image.

Procedure

In the OSToy app, in the left menu, click Secrets, displaying the contents of the secrets available to the OSToy application. The code snippet shows an example of a secret configuration:

Example output

USERNAME=my_user
PASSWORD=VVNFUk5BTUU9bXlfdXNlcgpQQVNTV09SRD1AT3RCbCVYQXAhIzYzMlk1RndDQE1UUWsKU01UUD1sb2NhbGhvc3QKU01UUF9QT1JUPTI1
SMTP=localhost
SMTP_PORT=25

USERNAME=my_user
PASSWORD=VVNFUk5BTUU9bXlfdXNlcgpQQVNTV09SRD1AT3RCbCVYQXAhIzYzMlk1RndDQE1UUWsKU01UUD1sb2NhbGhvc3QKU01UUF9QT1JUPTI1
SMTP=localhost
SMTP_PORT=25

Copy to Clipboard

Toggle word wrap

2.5.3. Configuration using environment variables
Copia collegamento

Using environment variables is an easy way to change application behavior without requiring code changes. It allows different deployments of the same application to potentially behave differently based on the environment variables. Red Hat OpenShift Service on AWS makes it simple to set, view, and update environment variables for pods or deployments.

Procedure

In the OSToy app, in the left menu, click ENV Variables, displaying the environment variables available to the OSToy application. The code snippet shows an example of an environmental variable configuration:

Example output

{
  "npm_config_local_prefix": "/opt/app-root/src",
  "STI_SCRIPTS_PATH": "/usr/libexec/s2i",
  "npm_package_version": "1.7.0",
  "APP_ROOT": "/opt/app-root",
  "NPM_CONFIG_PREFIX": "/opt/app-root/src/.npm-global",
  "OSTOY_MICROSERVICE_PORT_8080_TCP_PORT": "8080",
  "NODE": "/usr/bin/node",
  "LD_PRELOAD": "libnss_wrapper.so",
  "KUBERNETES_SERVICE_HOST": "172.30.0.1",
  "OSTOY_MICROSERVICE_PORT": "tcp://172.30.60.255:8080",
  "OSTOY_PORT": "tcp://172.30.152.25:8080",
  "npm_package_name": "ostoy",
  "OSTOY_SERVICE_PORT_8080_TCP": "8080",
  "_": "/usr/bin/node"
  "ENV_TOY_CONFIGMAP": "ostoy-configmap -env"
}

{
  "npm_config_local_prefix": "/opt/app-root/src",
  "STI_SCRIPTS_PATH": "/usr/libexec/s2i",
  "npm_package_version": "1.7.0",
  "APP_ROOT": "/opt/app-root",
  "NPM_CONFIG_PREFIX": "/opt/app-root/src/.npm-global",
  "OSTOY_MICROSERVICE_PORT_8080_TCP_PORT": "8080",
  "NODE": "/usr/bin/node",
  "LD_PRELOAD": "libnss_wrapper.so",
  "KUBERNETES_SERVICE_HOST": "172.30.0.1",
  "OSTOY_MICROSERVICE_PORT": "tcp://172.30.60.255:8080",
  "OSTOY_PORT": "tcp://172.30.152.25:8080",
  "npm_package_name": "ostoy",
  "OSTOY_SERVICE_PORT_8080_TCP": "8080",
  "_": "/usr/bin/node"
  "ENV_TOY_CONFIGMAP": "ostoy-configmap -env"
}

Copy to Clipboard

Toggle word wrap

2.6. Networking
Copia collegamento

The OSToy application uses intra-cluster networking to separate functions by using microservices.

In this workshop, there are at least two separate pods, each with its own service. One pod functions as the front end web application with a service and a publicly accessible route. The other pod functions as the backend microservice with a service object so that the front end pod can communicate with the microservice.

Communication occurs across the pods if there is more than one pod. The microservice is not accessible from outside the cluster and other namespaces or projects. The purpose of the microservice is to serve internal web requests and return a JSON object containing the current hostname (the pod’s name) and a randomly generated color string. This color string displays a box with that color on the OSToy application web console.

For more information about the networking limitations, see About network policy.

2.6.1. Intra-cluster networking
Copia collegamento

You can view your networking configurations in your OSToy application.

Procedure

In the OSToy application web console, click Networking in the left menu.
Review the networking configuration. The tile "Hostname Lookup" illustrates how the service name created for a pod translates into an internal ClusterIP address.

View larger image

Enter the name of the microservice created in the "Hostname Lookup" tile following the format: <service_name>.<namespace>.svc.cluster.local. You can find the microservice name in the service definition of ostoy-microservice.yaml by running the following command:

oc get service <name_of_service> -o yaml

$ oc get service <name_of_service> -o yaml

Copy to Clipboard

Toggle word wrap

Example output

apiVersion: v1
kind: Service
metadata:
  name: ostoy-microservice-svc
  labels:
    app: ostoy-microservice
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
      protocol: TCP
  selector:
    app: ostoy-microservice

apiVersion: v1
kind: Service
metadata:
  name: ostoy-microservice-svc
  labels:
    app: ostoy-microservice
spec:
  type: ClusterIP
  ports:
    - port: 8080
      targetPort: 8080
      protocol: TCP
  selector:
    app: ostoy-microservice

Copy to Clipboard

Toggle word wrap

In this example, the full hostname is ostoy-microservice-svc.ostoy.svc.cluster.local.

An IP address is returned. In this example it is 172.30.165.246. This is the intra-cluster IP address, which is only accessible from within the cluster.

View larger image

2.7. Scaling an application
Copia collegamento

Manually or automatically scale your pods by using the Horizontal Pod Autoscaler (HPA). You can also scale your cluster nodes.

Prerequisites

An active ROSA cluster
A deployed OSToy application

2.7.1. Manual pod scaling
Copia collegamento

You can manually scale your application’s pods by using one of the following methods:

Changing your ReplicaSet or deployment definition
Using the command line
Using the web console

This workshop starts by using only one pod for the microservice. By defining a replica of 1 in your deployment definition, the Kubernetes Replication Controller strives to keep one pod alive. You then learn how to define pod autoscaling by using the Horizontal Pod Autoscaler(HPA) which is based on the load and will scale out more pods when necessary.

Procedure

In the OSToy app, click the Networking tab in the navigational menu.
In the "Intra-cluster Communication" section, locate the box that randomly changes colors. Inside the box, you see the microservice’s pod name. There is only one box in this example because there is only one microservice pod.

View larger image

Confirm that there is only one pod running for the microservice by running the following command:

oc get pods

$ oc get pods

Copy to Clipboard

Toggle word wrap

Example output

NAME                                  READY     STATUS    RESTARTS   AGE
ostoy-frontend-679cb85695-5cn7x       1/1       Running   0          1h
ostoy-microservice-86b4c6f559-p594d   1/1       Running   0          1h

NAME                                  READY     STATUS    RESTARTS   AGE
ostoy-frontend-679cb85695-5cn7x       1/1       Running   0          1h
ostoy-microservice-86b4c6f559-p594d   1/1       Running   0          1h

Copy to Clipboard

Toggle word wrap

Download the ostoy-microservice-deployment.yaml and save it to your local machine.

Change the deployment definition to three pods instead of one by using the following example:

spec:
    selector:
      matchLabels:
        app: ostoy-microservice
    replicas: 3

spec:
    selector:
      matchLabels:
        app: ostoy-microservice
    replicas: 3

Copy to Clipboard

Toggle word wrap

Apply the replica changes by running the following command:
```
oc apply -f ostoy-microservice-deployment.yaml
```
```
$ oc apply -f ostoy-microservice-deployment.yaml
```
Copy to Clipboard Toggle word wrap
Note
You can also edit the ostoy-microservice-deployment.yaml file in the OpenShift Web Console by going to the Workloads > Deployments > ostoy-microservice > YAML tab.

Confirm that there are now 3 pods by running the following command:

oc get pods

$ oc get pods

Copy to Clipboard

Toggle word wrap

The output shows that there are now 3 pods for the microservice instead of only one.

Example output

NAME                                  READY   STATUS    RESTARTS   AGE
ostoy-frontend-5fbcc7d9-rzlgz         1/1     Running   0          26m
ostoy-microservice-6666dcf455-2lcv4   1/1     Running   0          81s
ostoy-microservice-6666dcf455-5z56w   1/1     Running   0          81s
ostoy-microservice-6666dcf455-tqzmn   1/1     Running   0          26m

NAME                                  READY   STATUS    RESTARTS   AGE
ostoy-frontend-5fbcc7d9-rzlgz         1/1     Running   0          26m
ostoy-microservice-6666dcf455-2lcv4   1/1     Running   0          81s
ostoy-microservice-6666dcf455-5z56w   1/1     Running   0          81s
ostoy-microservice-6666dcf455-tqzmn   1/1     Running   0          26m

Copy to Clipboard

Toggle word wrap

Scale the application by using the command-line interface (CLI) or by using the web user interface (UI):
- In the CLI, decrease the number of pods from 3 to 2 by running the following command:
  $ oc scale deployment ostoy-microservice --replicas=2
  Copy to Clipboard Toggle word wrap
- From the navigational menu of the OpenShift web console UI, click Workloads > Deployments > ostoy-microservice.
- Locate the blue circle with a "3 Pod" label in the middle.
- Selecting the arrows next to the circle scales the number of pods. Select the down arrow to 2.

  View larger image

Verification

Check your pod counts by using the CLI, the web UI, or the OSToy application:

From the CLI, confirm that you are using two pods for the microservice by running the following command:

oc get pods

$ oc get pods

Copy to Clipboard

Toggle word wrap

Example output

NAME                                  READY   STATUS    RESTARTS   AGE
ostoy-frontend-5fbcc7d9-rzlgz         1/1     Running   0          75m
ostoy-microservice-6666dcf455-2lcv4   1/1     Running   0          50m
ostoy-microservice-6666dcf455-tqzmn   1/1     Running   0          75m

NAME                                  READY   STATUS    RESTARTS   AGE
ostoy-frontend-5fbcc7d9-rzlgz         1/1     Running   0          75m
ostoy-microservice-6666dcf455-2lcv4   1/1     Running   0          50m
ostoy-microservice-6666dcf455-tqzmn   1/1     Running   0          75m

Copy to Clipboard

Toggle word wrap

In the web UI, select Workloads > Deployments > ostoy-microservice.

View larger image
You can also confirm that there are two pods by selecting Networking in the navigation menu of the OSToy application. There should be two colored boxes for the two pods.

View larger image

2.7.2. Pod autoscaling
Copia collegamento

Red Hat OpenShift Service on AWS offers a Horizontal Pod Autoscaler (HPA). The HPA uses metrics to increase or decrease the number of pods when necessary.

Procedure

From the navigational menu of the web UI, select Pod Auto Scaling.

View larger image
Create the HPA by running the following command:
```
oc autoscale deployment/ostoy-microservice --cpu-percent=80 --min=1 --max=10
```
```
$ oc autoscale deployment/ostoy-microservice --cpu-percent=80 --min=1 --max=10
```
Copy to Clipboard Toggle word wrap
This command creates an HPA that maintains between 1 and 10 replicas of the pods controlled by the ostoy-microservice deployment. During deployment, HPA increases and decreases the number of replicas to keep the average CPU use across all pods at 80% and 40 millicores.
On the Pod Auto Scaling > Horizontal Pod Autoscaling page, select Increase the load.
Important
Because increasing the load generates CPU intensive calculations, the page can become unresponsive. This is an expected response. Only click Increase the Load once. For more information about the process, see the microservice’s GitHub repository.
After a few minutes, the new pods display on the page represented by colored boxes.
Note
The page can experience lag.

Verification

Check your pod counts with one of the following methods:

In the OSToy application’s web UI, see the remote pods box:

View larger image

Because there is only one pod, increasing the workload should trigger an increase of pods.

In the CLI, run the following command:

oc get pods --field-selector=status.phase=Running | grep microservice

oc get pods --field-selector=status.phase=Running | grep microservice

Copy to Clipboard

Toggle word wrap

Example output

ostoy-microservice-79894f6945-cdmbd   1/1     Running   0          3m14s
ostoy-microservice-79894f6945-mgwk7   1/1     Running   0          4h24m
ostoy-microservice-79894f6945-q925d   1/1     Running   0          3m14s

ostoy-microservice-79894f6945-cdmbd   1/1     Running   0          3m14s
ostoy-microservice-79894f6945-mgwk7   1/1     Running   0          4h24m
ostoy-microservice-79894f6945-q925d   1/1     Running   0          3m14s

Copy to Clipboard

Toggle word wrap

You can also verify autoscaling from the OpenShift Cluster Manager
1. In the OpenShift web console navigational menu, click Observe > Dashboards.
2. In the dashboard, select Kubernetes / Compute Resources / Namespace (Pods) and your namespace ostoy.

  View larger image
3. A graph appears showing your resource usage across CPU and memory. The top graph shows recent CPU consumption per pod and the lower graph indicates memory usage. The following lists the callouts in the graph:
  1. The load increased (A).
  2. Two new pods were created (B and C).
  3. The thickness of each graph represents the CPU consumption and indicates which pods handled more load.
  4. The load decreased (D), and the pods were deleted.

    View larger image

2.7.3. Node autoscaling
Copia collegamento

Red Hat OpenShift Service on AWS allows you to use node autoscaling. In this scenario, you will create a new project with a job that has a large workload that the cluster cannot handle. With autoscaling enabled, when the load is larger than your current capacity, the cluster will automatically create new nodes to handle the load.

Prerequisites

Autoscaling is enabled on your machine pools.

Procedure

Create a new project called autoscale-ex by running the following command:
```
oc new-project autoscale-ex
```
```
$ oc new-project autoscale-ex
```
Copy to Clipboard Toggle word wrap

Create the job by running the following command:

oc create -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/job-work-queue.yaml

$ oc create -f https://raw.githubusercontent.com/openshift-cs/rosaworkshop/master/rosa-workshop/ostoy/yaml/job-work-queue.yaml

Copy to Clipboard

Toggle word wrap

After a few minuts, run the following command to see the pods:

oc get pods

$ oc get pods

Copy to Clipboard

Toggle word wrap

Example output

NAME                     READY   STATUS    RESTARTS   AGE
work-queue-5x2nq-24xxn   0/1     Pending   0          10s
work-queue-5x2nq-57zpt   0/1     Pending   0          10s
work-queue-5x2nq-58bvs   0/1     Pending   0          10s
work-queue-5x2nq-6c5tl   1/1     Running   0          10s
work-queue-5x2nq-7b84p   0/1     Pending   0          10s
work-queue-5x2nq-7hktm   0/1     Pending   0          10s
work-queue-5x2nq-7md52   0/1     Pending   0          10s
work-queue-5x2nq-7qgmp   0/1     Pending   0          10s
work-queue-5x2nq-8279r   0/1     Pending   0          10s
work-queue-5x2nq-8rkj2   0/1     Pending   0          10s
work-queue-5x2nq-96cdl   0/1     Pending   0          10s
work-queue-5x2nq-96tfr   0/1     Pending   0          10s

NAME                     READY   STATUS    RESTARTS   AGE
work-queue-5x2nq-24xxn   0/1     Pending   0          10s
work-queue-5x2nq-57zpt   0/1     Pending   0          10s
work-queue-5x2nq-58bvs   0/1     Pending   0          10s
work-queue-5x2nq-6c5tl   1/1     Running   0          10s
work-queue-5x2nq-7b84p   0/1     Pending   0          10s
work-queue-5x2nq-7hktm   0/1     Pending   0          10s
work-queue-5x2nq-7md52   0/1     Pending   0          10s
work-queue-5x2nq-7qgmp   0/1     Pending   0          10s
work-queue-5x2nq-8279r   0/1     Pending   0          10s
work-queue-5x2nq-8rkj2   0/1     Pending   0          10s
work-queue-5x2nq-96cdl   0/1     Pending   0          10s
work-queue-5x2nq-96tfr   0/1     Pending   0          10s

Copy to Clipboard

Toggle word wrap

Because there are many pods in a Pending state, this status triggers the autoscaler to create more nodes in your machine pool. Allow time to create these worker nodes.

After a few minutes, use the following command to see how many worker nodes you now have:

oc get nodes

$ oc get nodes

Copy to Clipboard

Toggle word wrap

Example output

NAME                                         STATUS   ROLES          AGE     VERSION
ip-10-0-138-106.us-west-2.compute.internal   Ready    infra,worker   22h     v1.23.5+3afdacb
ip-10-0-153-68.us-west-2.compute.internal    Ready    worker         2m12s   v1.23.5+3afdacb
ip-10-0-165-183.us-west-2.compute.internal   Ready    worker         2m8s    v1.23.5+3afdacb
ip-10-0-176-123.us-west-2.compute.internal   Ready    infra,worker   22h     v1.23.5+3afdacb
ip-10-0-195-210.us-west-2.compute.internal   Ready    master         23h     v1.23.5+3afdacb
ip-10-0-196-84.us-west-2.compute.internal    Ready    master         23h     v1.23.5+3afdacb
ip-10-0-203-104.us-west-2.compute.internal   Ready    worker         2m6s    v1.23.5+3afdacb
ip-10-0-217-202.us-west-2.compute.internal   Ready    master         23h     v1.23.5+3afdacb
ip-10-0-225-141.us-west-2.compute.internal   Ready    worker         23h     v1.23.5+3afdacb
ip-10-0-231-245.us-west-2.compute.internal   Ready    worker         2m11s   v1.23.5+3afdacb
ip-10-0-245-27.us-west-2.compute.internal    Ready    worker         2m8s    v1.23.5+3afdacb
ip-10-0-245-7.us-west-2.compute.internal     Ready    worker         23h     v1.23.5+3afdacb

NAME                                         STATUS   ROLES          AGE     VERSION
ip-10-0-138-106.us-west-2.compute.internal   Ready    infra,worker   22h     v1.23.5+3afdacb
ip-10-0-153-68.us-west-2.compute.internal    Ready    worker         2m12s   v1.23.5+3afdacb
ip-10-0-165-183.us-west-2.compute.internal   Ready    worker         2m8s    v1.23.5+3afdacb
ip-10-0-176-123.us-west-2.compute.internal   Ready    infra,worker   22h     v1.23.5+3afdacb
ip-10-0-195-210.us-west-2.compute.internal   Ready    master         23h     v1.23.5+3afdacb
ip-10-0-196-84.us-west-2.compute.internal    Ready    master         23h     v1.23.5+3afdacb
ip-10-0-203-104.us-west-2.compute.internal   Ready    worker         2m6s    v1.23.5+3afdacb
ip-10-0-217-202.us-west-2.compute.internal   Ready    master         23h     v1.23.5+3afdacb
ip-10-0-225-141.us-west-2.compute.internal   Ready    worker         23h     v1.23.5+3afdacb
ip-10-0-231-245.us-west-2.compute.internal   Ready    worker         2m11s   v1.23.5+3afdacb
ip-10-0-245-27.us-west-2.compute.internal    Ready    worker         2m8s    v1.23.5+3afdacb
ip-10-0-245-7.us-west-2.compute.internal     Ready    worker         23h     v1.23.5+3afdacb

Copy to Clipboard

Toggle word wrap

You can see the worker nodes were automatically created to handle the workload.

Return to the OSToy application by entering the following command:
```
oc project ostoy
```
```
$ oc project ostoy
```
Copy to Clipboard Toggle word wrap

2.8. S2I deployments
Copia collegamento

The integrated Source-to-Image (S2I) builder is one method to deploy applications in OpenShift. The S2I is a tool for building reproducible, Docker-formatted container images. For more information, see OpenShift concepts.

Prerequisites

A ROSA cluster

2.8.1. Retrieving your login command
Copia collegamento

Procedure

Confirm you are logged in to the command-line interface (CLI) by running the following command:
```
rosa whoami
```
```
rosa whoami
```
Copy to Clipboard Toggle word wrap
If you are logged in to the command-line interface, skip to "Creating a new project". If you are not logged in to the command-line interface, continue this procedure.
If you are not logged in to the command-line interface (CLI), in OpenShift Cluster Manager, click the dropdown arrow next to your name in the upper-right and select Copy Login Command.

View larger image
A new tab opens. Enter your username and password, and select the authentication method.
Click Display Token
Copy the command under "Log in with this token".

Example input

oc login --token=RYhFlXXXXXXXXXXXX --server=https://api.osd4-demo.abc1.p1.openshiftapps.com:6443

$ oc login --token=RYhFlXXXXXXXXXXXX --server=https://api.osd4-demo.abc1.p1.openshiftapps.com:6443

Copy to Clipboard

Toggle word wrap

Example output

Logged into "https://api.myrosacluster.abcd.p1.openshiftapps.com:6443" as "rosa-user" using the token provided.

You don't have any projects. You can try to create a new project, by running

oc new-project <project name>

Logged into "https://api.myrosacluster.abcd.p1.openshiftapps.com:6443" as "rosa-user" using the token provided.

You don't have any projects. You can try to create a new project, by running

oc new-project <project name>

Copy to Clipboard

Toggle word wrap

2.8.2. Creating a new project
Copia collegamento

Create a new project from the CLI by running the following command:
```
oc new-project ostoy-s2i
```
```
$ oc new-project ostoy-s2i
```
Copy to Clipboard Toggle word wrap

2.8.3. Fork the OSToy repository
Copia collegamento

In order to trigger automated builds based on changes to the source code, you must set up a GitHub webhook. The webhook will trigger S2I builds when you push code into your GitHub repository. To set up the webhook, you must first fork the repository.

Important

Replace <UserName> with your own GitHub username for the following URLs in this guide.

2.8.4. Using S2i to deploy OSToy on your cluster
Copia collegamento

Procedure

Add a secret to OpenShift.
This example emulates a .env file. Files are easily moved directly into an OpenShift environment and can even be renamed in the secret.
- Run the following command, replacing <UserName> with your GitHub username:
  $ oc create -f https://raw.githubusercontent.com/<UserName>/ostoy/master/deployment/yaml/secret.yaml
  Copy to Clipboard Toggle word wrap
Add a ConfigMap to OpenShift.
This example emulates an HAProxy config file, which is typically used for overriding default configurations in an OpenShift application. Files can be renamed in the ConfigMap.
- Run the following command, replacing <UserName> with your GitHub username:
  $ oc create -f https://raw.githubusercontent.com/<UserName>/ostoy/master/deployment/yaml/configmap.yaml
  Copy to Clipboard Toggle word wrap

Deploy the microservice.

You must deploy the microservice to ensure that the service environment variables are available from the UI application.

--context-dir builds the application defined in the microservice directory in the Git repository. The app label ensures the user interface (UI) application and microservice are both grouped in the OpenShift UI.

Run the following command to create the microservice, replacing <UserName> with your GitHub username:

oc new-app https://github.com/<UserName>/ostoy \
    --context-dir=microservice \
    --name=ostoy-microservice \
    --labels=app=ostoy

$ oc new-app https://github.com/<UserName>/ostoy \
    --context-dir=microservice \
    --name=ostoy-microservice \
    --labels=app=ostoy

Copy to Clipboard

Toggle word wrap

Example output

--> Creating resources with label app=ostoy ...
    imagestream.image.openshift.io "ostoy-microservice" created
    buildconfig.build.openshift.io "ostoy-microservice" created
    deployment.apps "ostoy-microservice" created
    service "ostoy-microservice" created
--> Success
    Build scheduled, use 'oc logs -f buildconfig/ostoy-microservice' to track its progress.
    Application is not exposed. You can expose services to the outside world by executing one or more of the commands below:
     'oc expose service/ostoy-microservice'
    Run 'oc status' to view your app.

--> Creating resources with label app=ostoy ...
    imagestream.image.openshift.io "ostoy-microservice" created
    buildconfig.build.openshift.io "ostoy-microservice" created
    deployment.apps "ostoy-microservice" created
    service "ostoy-microservice" created
--> Success
    Build scheduled, use 'oc logs -f buildconfig/ostoy-microservice' to track its progress.
    Application is not exposed. You can expose services to the outside world by executing one or more of the commands below:
     'oc expose service/ostoy-microservice'
    Run 'oc status' to view your app.

Copy to Clipboard

Toggle word wrap

Check the status of the microservice.

Check that the microservice was created and is running correctly by running the following command:

oc status

$ oc status

Copy to Clipboard

Toggle word wrap

Example output

In project ostoy-s2i on server https://api.myrosacluster.g14t.p1.openshiftapps.com:6443

svc/ostoy-microservice - 172.30.47.74:8080
  dc/ostoy-microservice deploys istag/ostoy-microservice:latest <-
    bc/ostoy-microservice source builds https://github.com/UserName/ostoy on openshift/nodejs:14-ubi8
    deployment #1 deployed 34 seconds ago - 1 pod

In project ostoy-s2i on server https://api.myrosacluster.g14t.p1.openshiftapps.com:6443

svc/ostoy-microservice - 172.30.47.74:8080
  dc/ostoy-microservice deploys istag/ostoy-microservice:latest <-
    bc/ostoy-microservice source builds https://github.com/UserName/ostoy on openshift/nodejs:14-ubi8
    deployment #1 deployed 34 seconds ago - 1 pod

Copy to Clipboard

Toggle word wrap

Wait until you see that the microservice was successfully deployed. You can also check this through the web UI.

Deploy the front end UI.

The application relies on several environment variables to define external settings.

Attach the secret and ConfigMap and create a PersistentVolume by running the following command:

oc new-app https://github.com/<UserName>/ostoy \
    --env=MICROSERVICE_NAME=OSTOY_MICROSERVICE

$ oc new-app https://github.com/<UserName>/ostoy \
    --env=MICROSERVICE_NAME=OSTOY_MICROSERVICE

Copy to Clipboard

Toggle word wrap

Example output

--> Creating resources ...
    imagestream.image.openshift.io "ostoy" created
    buildconfig.build.openshift.io "ostoy" created
    deployment.apps "ostoy" created
    service "ostoy" created
--> Success
    Build scheduled, use 'oc logs -f buildconfig/ostoy' to track its progress.
    Application is not exposed. You can expose services to the outside world by executing one or more of the commands below:
     'oc expose service/ostoy'
    Run 'oc status' to view your app.

--> Creating resources ...
    imagestream.image.openshift.io "ostoy" created
    buildconfig.build.openshift.io "ostoy" created
    deployment.apps "ostoy" created
    service "ostoy" created
--> Success
    Build scheduled, use 'oc logs -f buildconfig/ostoy' to track its progress.
    Application is not exposed. You can expose services to the outside world by executing one or more of the commands below:
     'oc expose service/ostoy'
    Run 'oc status' to view your app.

Copy to Clipboard

Toggle word wrap

Update the deployment by running the following command:

oc patch deployment ostoy --type=json -p \
    '[{"op": "replace", "path": "/spec/strategy/type", "value": "Recreate"}, {"op": "remove", "path": "/spec/strategy/rollingUpdate"}]'

$ oc patch deployment ostoy --type=json -p \
    '[{"op": "replace", "path": "/spec/strategy/type", "value": "Recreate"}, {"op": "remove", "path": "/spec/strategy/rollingUpdate"}]'

Copy to Clipboard

Toggle word wrap

Set a liveness probe.
Create a liveness probe to ensure the pod restarts if something is wrong in the application.
- Run the following command:
  $ oc set probe deployment ostoy --liveness --get-url=http://:8080/health
  Copy to Clipboard Toggle word wrap

Attach the secret, ConfigMap, and persistent volume to the deployment.

Run the following command to attach your secret:

oc set volume deployment ostoy --add \
    --secret-name=ostoy-secret \
    --mount-path=/var/secret

$ oc set volume deployment ostoy --add \
    --secret-name=ostoy-secret \
    --mount-path=/var/secret

Copy to Clipboard

Toggle word wrap

Run the following command to attach your ConfigMap:

oc set volume deployment ostoy --add \
    --configmap-name=ostoy-config \
    -m /var/config

$ oc set volume deployment ostoy --add \
    --configmap-name=ostoy-config \
    -m /var/config

Copy to Clipboard

Toggle word wrap

Run the following command to create and attach your persistent volume:

oc set volume deployment ostoy --add \
    --type=pvc \
    --claim-size=1G \
    -m /var/demo_files

$ oc set volume deployment ostoy --add \
    --type=pvc \
    --claim-size=1G \
    -m /var/demo_files

Copy to Clipboard

Toggle word wrap

Expose the UI application as an OpenShift Route.
- Run the following command to deploy the application as an HTTPS application that uses the included TLS wildcard certificates:
  $ oc create route edge --service=ostoy --insecure-policy=Redirect
  Copy to Clipboard Toggle word wrap
Browse to your application with the following methods:
- Run the following command to open a web browser with your OSToy application:
  $ python -m webbrowser "$(oc get route ostoy -o template --template='https://{{.spec.host}}')"
  Copy to Clipboard Toggle word wrap
- Run the following command to get the route for the application and copy and paste the route into your browser:
  $ oc get route
  Copy to Clipboard Toggle word wrap

2.9. Using Source-to-Image (S2I) webhooks for automated deployment
Copia collegamento

Automatically trigger a build and deploy any time you change the source code by using a webhook. For more information about this process, see Triggering Builds.

Procedure

Obtain the GitHub webhook trigger secret by running the following command:
```
oc get bc/ostoy-microservice -o=jsonpath='{.spec.triggers..github.secret}'
```
```
$ oc get bc/ostoy-microservice -o=jsonpath='{.spec.triggers..github.secret}'
```
Copy to Clipboard Toggle word wrap
Example output
```
`o_3x9M1qoI2Wj_cz1WiK`
```
```
`o_3x9M1qoI2Wj_cz1WiK`
```
Copy to Clipboard Toggle word wrap
Important
You need to use this secret in a later step in this process.

Obtain the GitHub webhook trigger URL from the OSToy’s buildconfig by running the following command:

oc describe bc/ostoy-microservice

$ oc describe bc/ostoy-microservice

Copy to Clipboard

Toggle word wrap

Example output

[...]
Webhook GitHub:
	URL:	https://api.demo1234.openshift.com:443/apis/build.openshift.io/v1/namespaces/ostoy-s2i/buildconfigs/ostoy/webhooks/<secret>/github
[...]

[...]
Webhook GitHub:
	URL:	https://api.demo1234.openshift.com:443/apis/build.openshift.io/v1/namespaces/ostoy-s2i/buildconfigs/ostoy/webhooks/<secret>/github
[...]

Copy to Clipboard

Toggle word wrap

In the GitHub webhook URL, replace the <secret> text with the secret you retrieved. Your URL will resemble the following example output:

Example output

https://api.demo1234.openshift.com:443/apis/build.openshift.io/v1/namespaces/ostoy-s2i/buildconfigs/ostoy-microservice/webhooks/o_3x9M1qoI2Wj_czR1WiK/github

https://api.demo1234.openshift.com:443/apis/build.openshift.io/v1/namespaces/ostoy-s2i/buildconfigs/ostoy-microservice/webhooks/o_3x9M1qoI2Wj_czR1WiK/github

Copy to Clipboard

Toggle word wrap

Set up the webhook URL in GitHub repository.
1. In your repository, click Settings > Webhooks > Add webhook.

  View larger image
2. Paste the GitHub webhook URL with the Secret included in the "Payload URL" field.
3. Change the "Content type" to application/json.
4. Click the Add webhook button.

  View larger image

  You should see a message from GitHub stating that your webhook was successfully configured. Now, whenever you push a change to your GitHub repository, a new build automatically starts, and upon a successful build, a new deployment starts.
Make a change in the source code. Any changes automatically trigger a build and deployment. In this example, the colors that denote the status of your OSToy app are randomly selected. To test the configuration, change the box to display grayscale.
1. Go to the source code in your repository https://github.com/<username>/ostoy/blob/master/microservice/app.js.
2. Edit the file.
3. Comment out line 8 (containing let randomColor = getRandomColor();).
4. Uncomment line 9 (containing let randomColor = getRandomGrayScaleColor();).
  7 app.get('/', function(request, response) { 8 //let randomColor = getRandomColor(); // <-- comment this 9 let randomColor = getRandomGrayScaleColor(); // <-- uncomment this 10 11 response.writeHead(200, {'Content-Type': 'application/json'});
  Copy to Clipboard Toggle word wrap
5. Enter a message for the update, such as "changed box to grayscale colors".
6. Click Commit at the bottom to commit the changes to the main branch.
In your cluster’s web UI, click Builds > Builds to determine the status of the build. After this build is completed, the deployment begins. You can also check the status by running oc status in your terminal.

View larger image
After the deployment has finished, return to the OSToy application in your browser. Access the Networking menu item on the left. The box color is now limited to grayscale colors only.

View larger image

Legal Notice
Copia collegamento

OpenShift documentation is licensed under the Apache License 2.0 (https://www.apache.org/licenses/LICENSE-2.0).

Modified versions must remove all Red Hat trademarks.

Portions adapted from https://github.com/kubernetes-incubator/service-catalog/ with modifications by Red Hat.

Red Hat, Red Hat Enterprise Linux, the Red Hat logo, the Shadowman logo, JBoss, OpenShift, Fedora, the Infinity logo, and RHCE are trademarks of Red Hat, Inc., registered in the United States and other countries.

Linux® is the registered trademark of Linus Torvalds in the United States and other countries.

Java® is a registered trademark of Oracle and/or its affiliates.

XFS® is a trademark of Silicon Graphics International Corp. or its subsidiaries in the United States and/or other countries.

MySQL® is a registered trademark of MySQL AB in the United States, the European Union and other countries.

Node.js® is an official trademark of Joyent. Red Hat Software Collections is not formally related to or endorsed by the official Joyent Node.js open source or commercial project.

The OpenStack® Word Mark and OpenStack logo are either registered trademarks/service marks or trademarks/service marks of the OpenStack Foundation, in the United States and other countries and are used with the OpenStack Foundation’s permission. We are not affiliated with, endorsed or sponsored by the OpenStack Foundation, or the OpenStack community.

All other trademarks are the property of their respective owners.

Torna in cima

Questo contenuto non è disponibile nella lingua selezionata.

Learning about ROSA

Learning about Red Hat OpenShift Service on AWS

Chapter 1. Creating a cluster workshopCopia collegamentoCollegamento copiato negli appunti!

1.1. Creating a clusterCopia collegamentoCollegamento copiato negli appunti!

1.1.1. Creating your cluster prerequisitesCopia collegamentoCollegamento copiato negli appunti!

1.1.1.1. Creating a VPCCopia collegamentoCollegamento copiato negli appunti!

1.1.1.2. Creating your OIDC configurationCopia collegamentoCollegamento copiato negli appunti!

1.1.2. Creating additional environment variablesCopia collegamentoCollegamento copiato negli appunti!

1.1.3. Creating a clusterCopia collegamentoCollegamento copiato negli appunti!

1.1.4. Checking the installation statusCopia collegamentoCollegamento copiato negli appunti!

1.2. Creating an admin userCopia collegamentoCollegamento copiato negli appunti!

1.3. Setting up an identity providerCopia collegamentoCollegamento copiato negli appunti!

1.3.1. Setting up an IDP with GitHubCopia collegamentoCollegamento copiato negli appunti!

1.3.2. Granting other users access to the clusterCopia collegamentoCollegamento copiato negli appunti!

1.4. Granting admin privilegesCopia collegamentoCollegamento copiato negli appunti!

1.4.1. Using the ROSA CLICopia collegamentoCollegamento copiato negli appunti!

1.4.2. Using the Red Hat OpenShift Cluster Manager UICopia collegamentoCollegamento copiato negli appunti!

1.5. Accessing your clusterCopia collegamentoCollegamento copiato negli appunti!

1.5.1. Accessing your cluster using the CLICopia collegamentoCollegamento copiato negli appunti!

1.5.2. Accessing the cluster via the Hybrid Cloud ConsoleCopia collegamentoCollegamento copiato negli appunti!

1.6. Managing worker nodesCopia collegamentoCollegamento copiato negli appunti!

1.6.1. Creating a machine poolCopia collegamentoCollegamento copiato negli appunti!

1.6.1.1. Creating a machine pool with the CLICopia collegamentoCollegamento copiato negli appunti!

1.6.1.2. Creating a machine pool with the UICopia collegamentoCollegamento copiato negli appunti!

1.6.2. Scaling worker nodesCopia collegamentoCollegamento copiato negli appunti!

1.6.2.1. Scaling worker nodes using the CLICopia collegamentoCollegamento copiato negli appunti!

1.6.2.2. Scaling worker nodes using the UICopia collegamentoCollegamento copiato negli appunti!

1.6.2.3. Adding node labelsCopia collegamentoCollegamento copiato negli appunti!

1.6.3. Mixing node typesCopia collegamentoCollegamento copiato negli appunti!

1.7. AutoscalingCopia collegamentoCollegamento copiato negli appunti!

1.7.1. Enabling autoscaling for an existing machine pool using the CLICopia collegamentoCollegamento copiato negli appunti!

1.7.2. Enabling autoscaling for an existing machine pool using the UICopia collegamentoCollegamento copiato negli appunti!

1.8. Upgrading your clusterCopia collegamentoCollegamento copiato negli appunti!

1.8.1. Manually upgrading your cluster using the CLICopia collegamentoCollegamento copiato negli appunti!

1.8.2. Manually upgrading your cluster using the UICopia collegamentoCollegamento copiato negli appunti!

1.8.3. Setting up automatic recurring upgradesCopia collegamentoCollegamento copiato negli appunti!

1.9. Deleting your clusterCopia collegamentoCollegamento copiato negli appunti!

1.9.1. Deleting a ROSA cluster using the CLICopia collegamentoCollegamento copiato negli appunti!

1.9.2. Deleting a ROSA cluster using the UICopia collegamentoCollegamento copiato negli appunti!

1.10. Obtaining supportCopia collegamentoCollegamento copiato negli appunti!

1.10.1. Adding support contactsCopia collegamentoCollegamento copiato negli appunti!

1.10.2. Contacting Red Hat for support using the UICopia collegamentoCollegamento copiato negli appunti!

1.10.3. Contacting Red Hat for support using the support pageCopia collegamentoCollegamento copiato negli appunti!

Chapter 2. Deploying an application workshopCopia collegamentoCollegamento copiato negli appunti!

2.1. Workshop overviewCopia collegamentoCollegamento copiato negli appunti!

2.1.1. IntroductionCopia collegamentoCollegamento copiato negli appunti!

2.1.2. About the OSToy applicationCopia collegamentoCollegamento copiato negli appunti!

2.1.2.1. OSToy application diagramCopia collegamentoCollegamento copiato negli appunti!

2.1.2.2. Understanding the OSToy UICopia collegamentoCollegamento copiato negli appunti!

2.1.2.3. Lab resourcesCopia collegamentoCollegamento copiato negli appunti!

2.2. Deploying the OSToy application with KubernetesCopia collegamentoCollegamento copiato negli appunti!

2.2.1. Retrieving the login commandCopia collegamentoCollegamento copiato negli appunti!

2.2.2. Creating a new projectCopia collegamentoCollegamento copiato negli appunti!

2.2.2.1. Creating a new project using the CLICopia collegamentoCollegamento copiato negli appunti!

2.2.2.2. Creating a new project using the web consoleCopia collegamentoCollegamento copiato negli appunti!

2.2.3. Deploying the back-end microserviceCopia collegamentoCollegamento copiato negli appunti!

2.2.4. Deploying the front-end microserviceCopia collegamentoCollegamento copiato negli appunti!

2.2.5. Obtain the route to your applicationCopia collegamentoCollegamento copiato negli appunti!

2.2.6. Viewing the applicationCopia collegamentoCollegamento copiato negli appunti!

2.3. Health checkCopia collegamentoCollegamento copiato negli appunti!

2.3.1. Preparing your desktopCopia collegamentoCollegamento copiato negli appunti!

2.3.2. Crashing the podCopia collegamentoCollegamento copiato negli appunti!

2.3.3. Viewing the revived podCopia collegamentoCollegamento copiato negli appunti!

2.3.4. Making the application malfunctionCopia collegamentoCollegamento copiato negli appunti!

2.4. Persistent volumes for cluster storageCopia collegamentoCollegamento copiato negli appunti!

2.4.1. Using persistent volumesCopia collegamentoCollegamento copiato negli appunti!

2.4.1.1. Viewing a persistent volume claimCopia collegamentoCollegamento copiato negli appunti!

2.4.1.2. Storing your fileCopia collegamentoCollegamento copiato negli appunti!

2.4.1.3. Crashing the podCopia collegamentoCollegamento copiato negli appunti!

2.4.1.4. Confirming persistent storageCopia collegamentoCollegamento copiato negli appunti!

2.4.1.5. Ending the sessionCopia collegamentoCollegamento copiato negli appunti!

2.5. ConfigMaps, secrets, and environment variablesCopia collegamentoCollegamento copiato negli appunti!

2.5.1. Configuration using ConfigMapsCopia collegamentoCollegamento copiato negli appunti!

2.5.2. Configuration using secretsCopia collegamentoCollegamento copiato negli appunti!

2.5.3. Configuration using environment variablesCopia collegamentoCollegamento copiato negli appunti!

2.6. NetworkingCopia collegamentoCollegamento copiato negli appunti!

2.6.1. Intra-cluster networkingCopia collegamentoCollegamento copiato negli appunti!

2.7. Scaling an applicationCopia collegamentoCollegamento copiato negli appunti!

2.7.1. Manual pod scalingCopia collegamentoCollegamento copiato negli appunti!

Chapter 1. Creating a cluster workshop
Copia collegamento

1.1. Creating a cluster
Copia collegamento

1.1.1. Creating your cluster prerequisites
Copia collegamento

1.1.1.1. Creating a VPC
Copia collegamento

1.1.1.2. Creating your OIDC configuration
Copia collegamento

1.1.2. Creating additional environment variables
Copia collegamento

1.1.3. Creating a cluster
Copia collegamento

1.1.4. Checking the installation status
Copia collegamento

1.2. Creating an admin user
Copia collegamento

1.3. Setting up an identity provider
Copia collegamento

1.3.1. Setting up an IDP with GitHub
Copia collegamento

1.3.2. Granting other users access to the cluster
Copia collegamento

1.4. Granting admin privileges
Copia collegamento

1.4.1. Using the ROSA CLI
Copia collegamento

1.4.2. Using the Red Hat OpenShift Cluster Manager UI
Copia collegamento

1.5. Accessing your cluster
Copia collegamento

1.5.1. Accessing your cluster using the CLI
Copia collegamento

1.5.2. Accessing the cluster via the Hybrid Cloud Console
Copia collegamento

1.6. Managing worker nodes
Copia collegamento

1.6.1. Creating a machine pool
Copia collegamento

1.6.1.1. Creating a machine pool with the CLI
Copia collegamento

1.6.1.2. Creating a machine pool with the UI
Copia collegamento

1.6.2. Scaling worker nodes
Copia collegamento

1.6.2.1. Scaling worker nodes using the CLI
Copia collegamento

1.6.2.2. Scaling worker nodes using the UI
Copia collegamento

1.6.2.3. Adding node labels
Copia collegamento

1.6.3. Mixing node types
Copia collegamento

1.7. Autoscaling
Copia collegamento

1.7.1. Enabling autoscaling for an existing machine pool using the CLI
Copia collegamento

1.7.2. Enabling autoscaling for an existing machine pool using the UI
Copia collegamento

1.8. Upgrading your cluster
Copia collegamento

1.8.1. Manually upgrading your cluster using the CLI
Copia collegamento

1.8.2. Manually upgrading your cluster using the UI
Copia collegamento

1.8.3. Setting up automatic recurring upgrades
Copia collegamento

1.9. Deleting your cluster
Copia collegamento

1.9.1. Deleting a ROSA cluster using the CLI
Copia collegamento

1.9.2. Deleting a ROSA cluster using the UI
Copia collegamento

1.10. Obtaining support
Copia collegamento

1.10.1. Adding support contacts
Copia collegamento

1.10.2. Contacting Red Hat for support using the UI
Copia collegamento

1.10.3. Contacting Red Hat for support using the support page
Copia collegamento

Chapter 2. Deploying an application workshop
Copia collegamento

2.1. Workshop overview
Copia collegamento

2.1.1. Introduction
Copia collegamento

2.1.2. About the OSToy application
Copia collegamento

2.1.2.1. OSToy application diagram
Copia collegamento

2.1.2.2. Understanding the OSToy UI
Copia collegamento

2.1.2.3. Lab resources
Copia collegamento

2.2. Deploying the OSToy application with Kubernetes
Copia collegamento

2.2.1. Retrieving the login command
Copia collegamento

2.2.2. Creating a new project
Copia collegamento

2.2.2.1. Creating a new project using the CLI
Copia collegamento

2.2.2.2. Creating a new project using the web console
Copia collegamento

2.2.3. Deploying the back-end microservice
Copia collegamento

2.2.4. Deploying the front-end microservice
Copia collegamento

2.2.5. Obtain the route to your application
Copia collegamento

2.2.6. Viewing the application
Copia collegamento

2.3. Health check
Copia collegamento

2.3.1. Preparing your desktop
Copia collegamento

2.3.2. Crashing the pod
Copia collegamento

2.3.3. Viewing the revived pod
Copia collegamento

2.3.4. Making the application malfunction
Copia collegamento

2.4. Persistent volumes for cluster storage
Copia collegamento

2.4.1. Using persistent volumes
Copia collegamento

2.4.1.1. Viewing a persistent volume claim
Copia collegamento

2.4.1.2. Storing your file
Copia collegamento

2.4.1.3. Crashing the pod
Copia collegamento

2.4.1.4. Confirming persistent storage
Copia collegamento

2.4.1.5. Ending the session
Copia collegamento

2.5. ConfigMaps, secrets, and environment variables
Copia collegamento

2.5.1. Configuration using ConfigMaps
Copia collegamento

2.5.2. Configuration using secrets
Copia collegamento

2.5.3. Configuration using environment variables
Copia collegamento

2.6. Networking
Copia collegamento

2.6.1. Intra-cluster networking
Copia collegamento

2.7. Scaling an application
Copia collegamento

2.7.1. Manual pod scaling
Copia collegamento

2.7.2. Pod autoscaling
Copia collegamento

2.7.3. Node autoscaling
Copia collegamento

2.8. S2I deployments
Copia collegamento
