19.5. LevelDB Cache Store

Procedure 19.1. To configure LevelDB Cache Store:

• Add the following elements to a cache definition in standalone.xml to configure the database:

  <leveldb-store path="/path/to/leveldb/data"
      	       passivation="false"
      	       purge="false" >
      <leveldb-expiration path="/path/to/leveldb/expires/data" />
      <implementation type="JNI" />
  </leveldb-store>

  Note

  Directories will be automatically created if they do not exist.

Procedure 19.2.

1. Ensure that Red Hat JBoss Operations Network 3.2 or higher is installed and started.
2. Install the Red Hat JBoss Data Grid Plugin Pack for JBoss Operations Network 3.2.0.
3. Ensure that JBoss Data Grid is installed and started.
4. Import JBoss Data Grid server into the inventory.
5. Configure the JBoss Data Grid connection settings.
6. Create a new LevelDB cache store as follows:


   Figure 19.1. Create a new LevelDB Cache Store

   1. Right-click the default cache.
   2. In the menu, mouse over the Create Child option.
   3. In the submenu, click LevelDB Store.
7. Name the new LevelDB cache store as follows:


   Figure 19.2. Name the new LevelDB Cache Store

   1. In the Resource Create Wizard that appears, add a name for the new LevelDB Cache Store.
   2. Click Next to continue.
8. Configure the LevelDB Cache Store settings as follows:

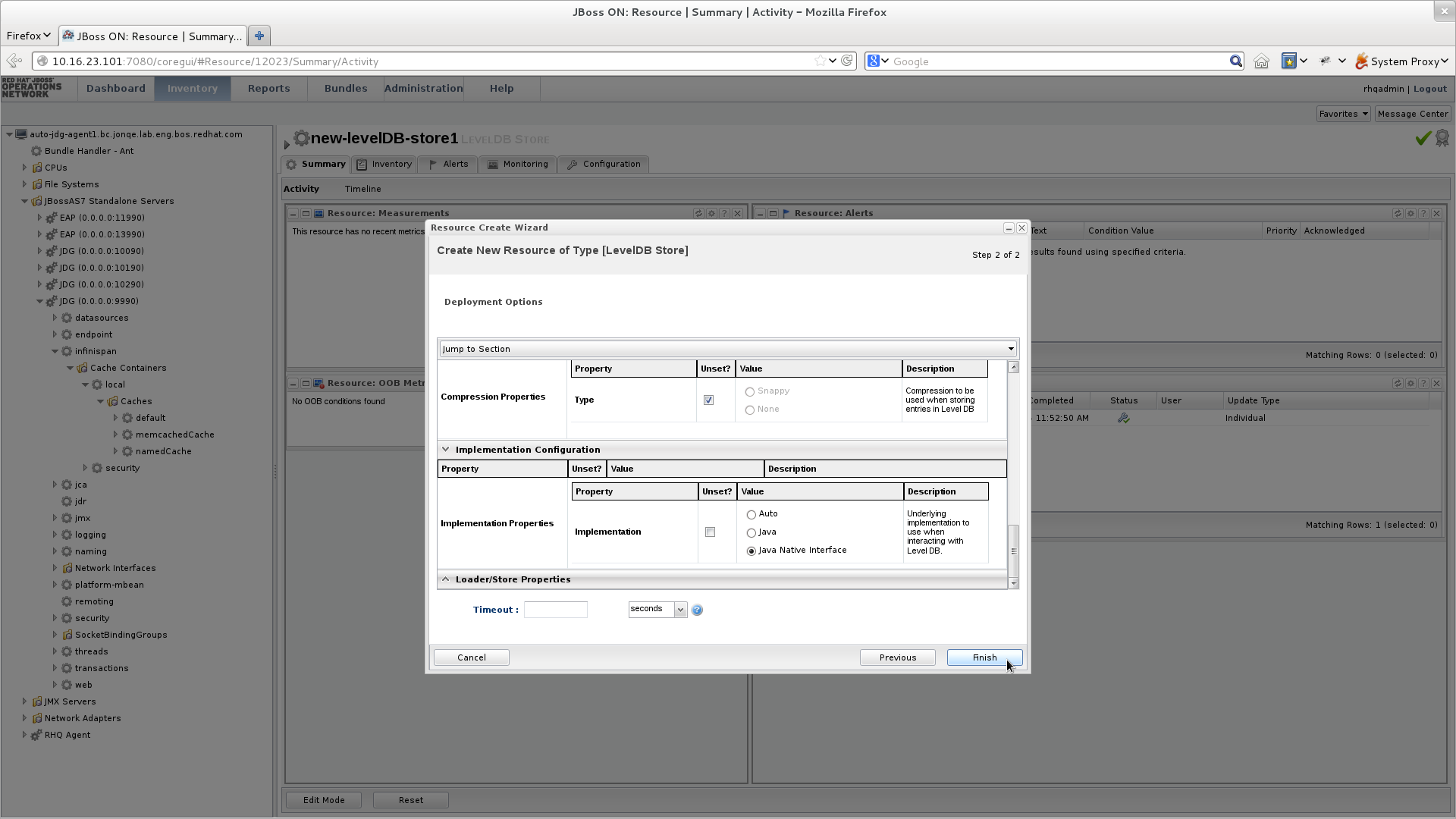

   Figure 19.3. Configure the LevelDB Cache Store Settings

   1. Use the options in the configuration window to configure a new LevelDB cache store.
   2. Click Finish to complete the configuration.
9. Schedule a restart operation as follows:


   Figure 19.4. Schedule a Restart Operation

   1. In the screen's left panel, expand the JBossAS7 Standalone Servers entry, if it is not currently expanded.
   2. Click JDG (0.0.0.0:9990) from the expanded menu items.
   3. In the screen's right panel, details about the selected server display. Click the Operations tab.
   4. In the Operation drop-down box, select the Restart operation.
   5. Select the radio button for the Now entry.
   6. Click Schedule to restart the server immediately.
10. Discover the new LevelDB cache store as follows:


    Figure 19.5. Discover the New LevelDB Cache Store

    1. In the screen's left panel, select each of the following items in the specified order to expand them: JBossAS7 Standalong Servers JDG (0.0.0.0:9990) infinispan Cache Containers local Caches default LevelDB Stores
    2. Click the name of your new LevelDB Cache Store to view its configuration information in the right panel.
